Wireless inside, freedom outside
Built-in Wi-Fi, true wireless workflow, stable real-time sync to PC, and a swappable battery with up to 3 hours runtime help users scan with fewer restrictions.

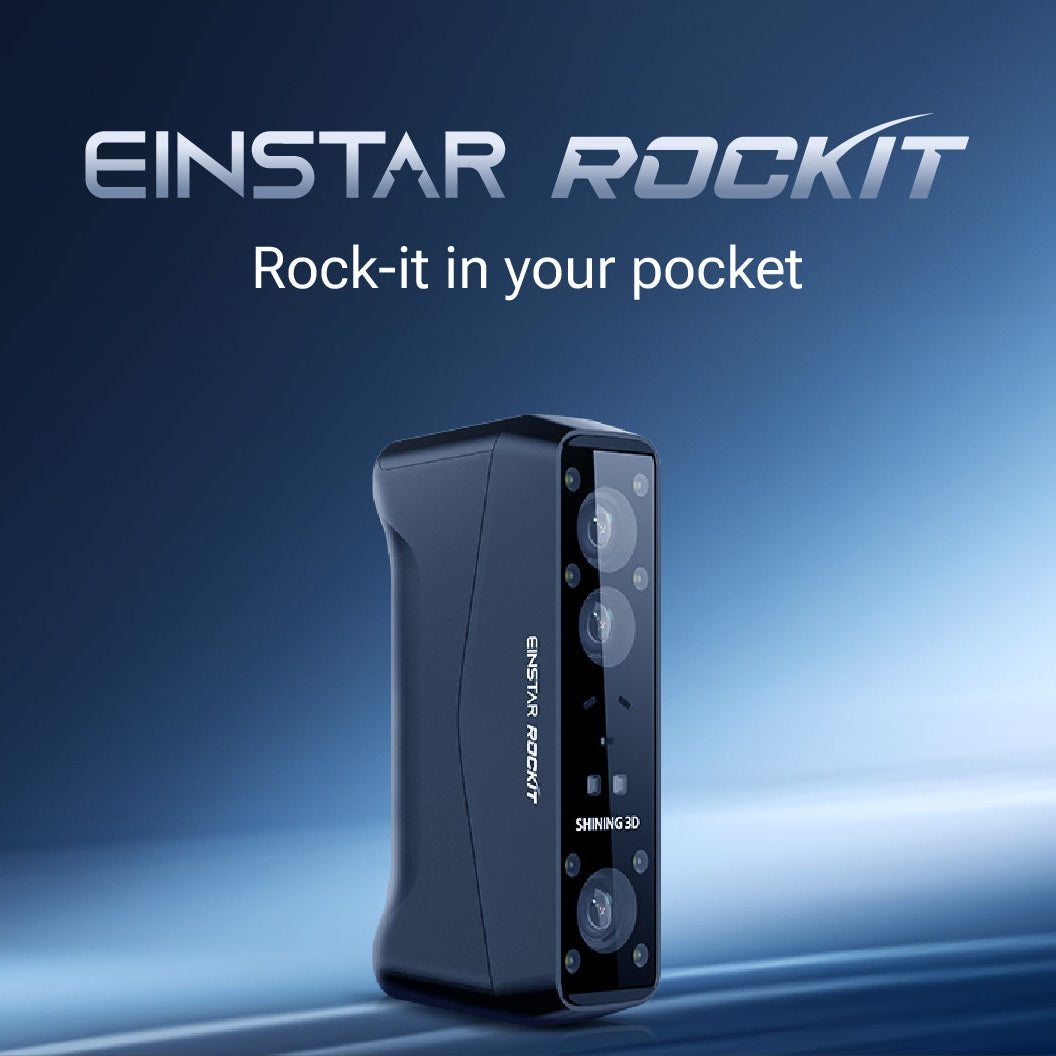

EINSTAR Rockit
Rock-it in Your Pocket
A must-have wireless 3D scanner that brings pro-level laser and IR performance to your palm, with built-in Wi-Fi, marker-free capability, compact body, and smart audio feedback.
$1,899.00
Marker-free laser scanning
Built-in Wi-Fi
Up to 90 fps
5MP color camera
View specs
Pro-level performance

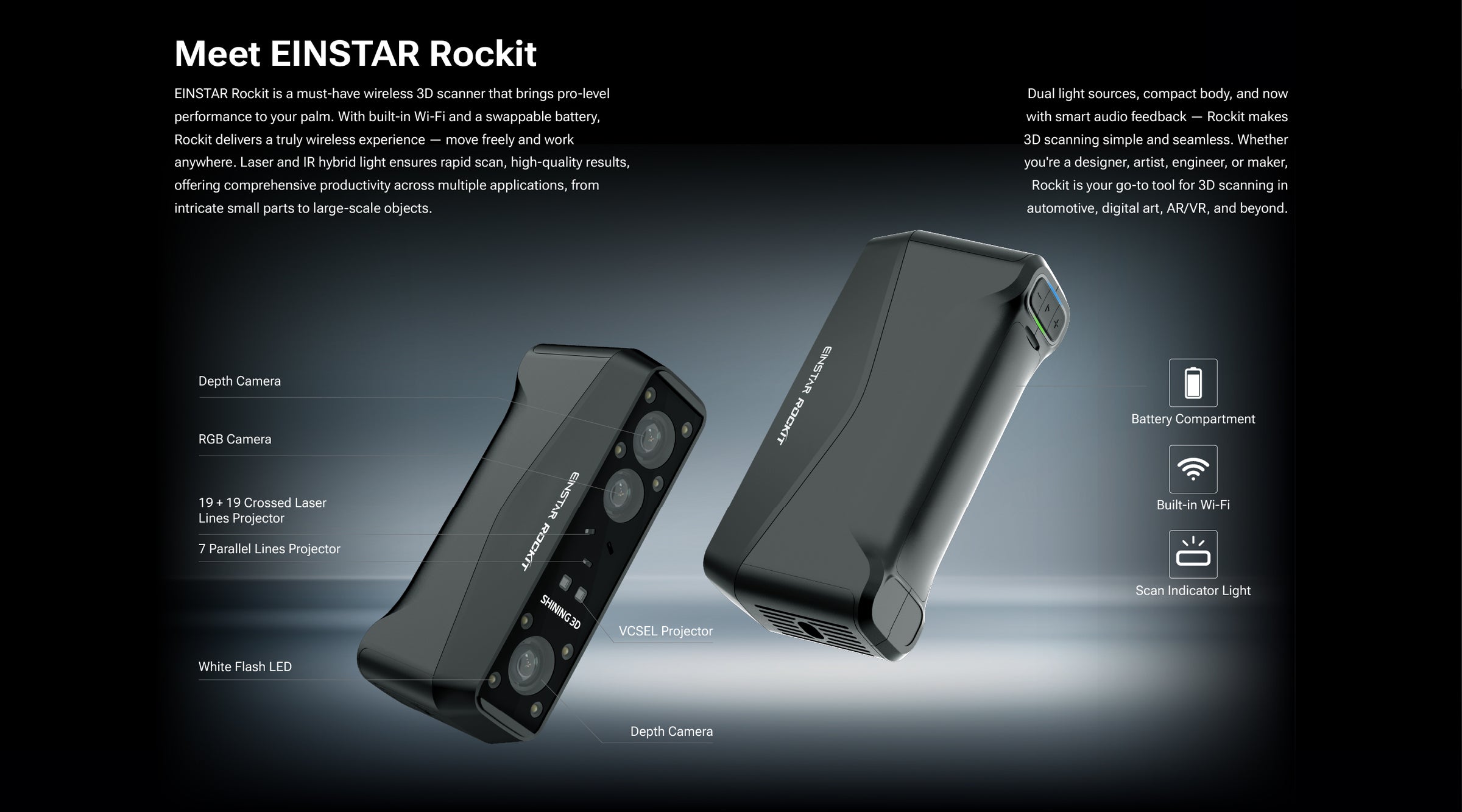

Meet EINSTAR Rockit.
Dual light sources, compact handheld hardware, built-in Wi-Fi, swappable battery, and smart audio feedback make Rockit ready for fast 3D scanning across automotive, design, art, education, and outdoor workflows.
Rockit for unlimited experience
Wireless, laser-ready, and built for fast detailed handheld scanning.
1
2
Blue laser, two scanning modes
38 laser lines with 19 + 19 crossed lines support fast large-area capture, while 7 parallel laser lines capture fine features.
3
Ready for outdoor scanning
Reliable performance in daylight and varied lighting, with Laser HD mode up to 110,000 Lux and IR Rapid mode up to 70,000 Lux.
4

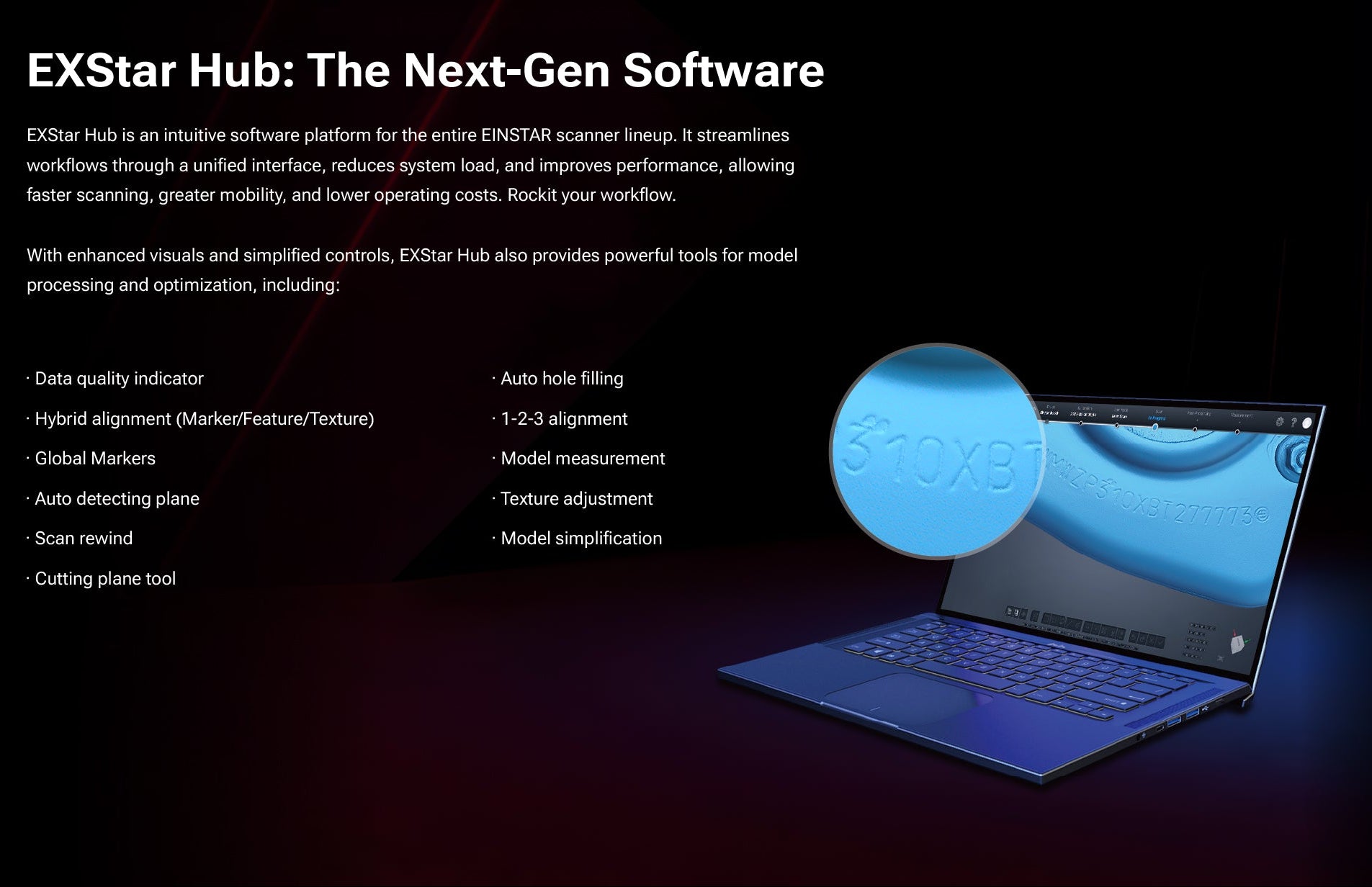

EXStar Hub workflow
EXStar Hub streamlines workflows through a unified interface, reduces system load, and includes tools for model processing, optimization, alignment, and measurement.
Pocket size, rocket speed
Sleek, compact, and made for efficient scanning.
EINSTAR Rockit combines marker-free laser scanning, IR VCSEL rapid capture, wireless workflow, and vivid 5MP color texture capture in a compact body that is easy to carry and quick to deploy.
EINSTAR VEGA
Included
What's in the box
-

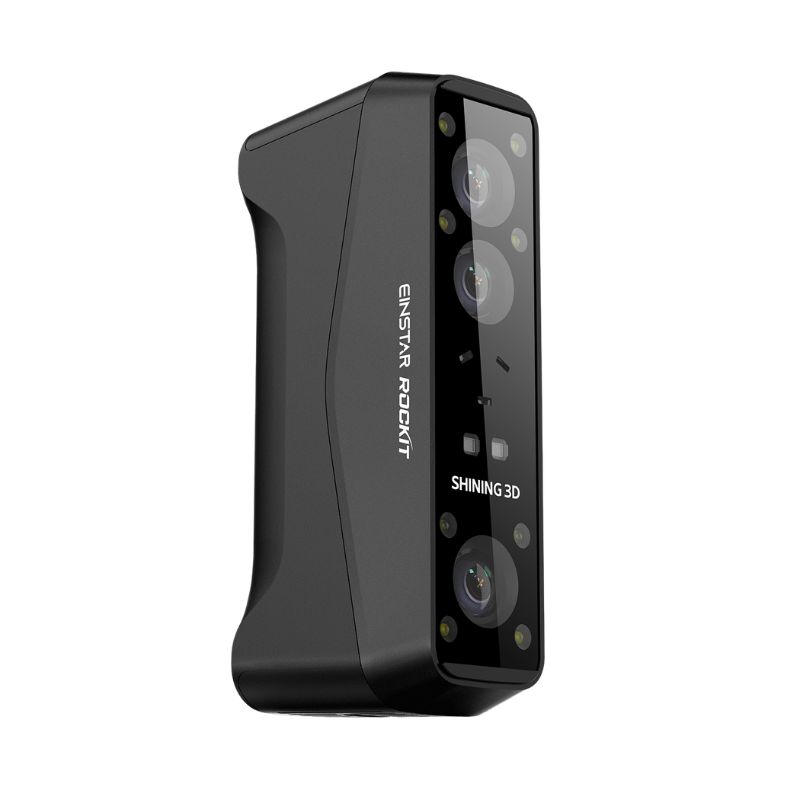

EINSTAR Rockit
-
Carrying Case
- Calibration Board
- Battery
- Battery Compartment
- Battery Compartment Charging Cable
- Universal Holder (Calibration Board)
- Power Adaptor
- Type-C Cable for Scanner and Battery Compartment
- 3mm and 6mm Reflective Markers
-
Packing List
Product essentials
EINSTAR Rockit at a glance.
Scan Mode
Laser HD; IR Rapid
Light Source
19 + 19 crossed laser lines; 7 blue laser parallel lines; IR VCSEL
Resolution
Laser HD: 0.05 to 10 mm; IR Rapid: 0.2 to 10 mm
Scanning Speed
Laser HD: 2,800,000 points/s; IR Rapid: 4,800,000 points/s
Working Distance
Laser HD: 100 to 600 mm; IR Rapid: 160 to 1400 mm
Max. FOV
19+19 crossed lines: 545 x 620 mm; 7 parallel lines: 355 x 425 mm; IR: 1170 x 1385 mm
Alignment Mode
Laser HD: Global Marker, Markers, Features, Hybrid; IR Rapid: Global Marker, Markers, Features, Texture, Hybrid
Output Formats
STL, OBJ, PLY, 3MF, ASC
Laser Class
Class 2
Outdoor Scanning Environment
Laser HD: below 110,000 Lux; IR Rapid: below 70,000 Lux
Dimensions
130 x 37 x 61 mm / 5.12 x 1.46 x 2.40 in
Net Weight
425g / 0.94 lbs with batteries; 353g / 0.78 lbs without batteries
Resources
Downloads
Proof
Our Expertise, Your Advantage
20
years experience
400
authorized patents
200
3D scanners sold worldwide
Support
Frequently asked questions
Who is EINSTAR Rockit for, and what are its typical use cases?
EINSTAR Rockit is a portable, high-efficiency 3D scanner for product designers, car engineers, 3D artists, and makers. Common uses include automotive part scanning, digital art creation, AR/VR content production, and outdoor objects such as statues and sculptures.
Does Rockit support wireless scanning?
Yes. Rockit has a built-in Wi-Fi module for wireless connection to a PC without additional accessories. USB Type-C cable connection is also available for stable operation if Wi-Fi interference occurs.
Can Rockit work effectively outdoors or under bright lighting?
Yes. Laser HD mode works under bright light up to 110,000 Lux, and IR Rapid mode supports up to 70,000 Lux, making Rockit reliable for scanning large objects in daylight or under vehicle lights.
What is the PC configuration required?
Recommended configuration includes Windows 11 Professional 22H2 64-bit, NVIDIA GeForce RTX 3060 Laptop GPU or above, 6GB+ VRAM, 32GB DDR5 dual-channel minimum RAM, 64GB+ recommended RAM, USB 3.0, and 13th Gen Intel Core i7-13700H or above. For smooth marker-free laser scanning, 64GB RAM is necessary.
Are markers required for scanning?
Rockit supports marker-free laser scanning in both crossed and parallel lines, aligning data via feature recognition. It also supports marker-based alignment for low-feature objects in laser mode, while IR mode supports hybrid alignment including feature, texture, and marker tracking.
What is the battery life?
Rockit uses a rechargeable battery with up to 3 hours runtime. It includes two batteries and one battery charger, so users can scan with one battery while charging another.
Is the texture resolution real 5MP?
Yes. EINSTAR Rockit has a dedicated 5MP color camera for texture capture, and its texture mapping algorithm preserves detail to deliver realistic color and sharp surface textures in the final 3D model.
What You Can Achieve with Our Scanners
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
Automotive Aftermarket & Engineering
Rockit captures a wide range of materials, from matte plastics and carbon fiber to glossy paints and chrome finishes, without spraying. It supports demanding automotive part scanning, modification, and reverse engineering workflows via Wi-Fi or USB-C.
Cultural Creation & Art Customization
Capture outdoor sculptures, historical artifacts, and studio artworks without fixed cables or locations. The 5MP texture camera helps preserve vibrant color and surface detail for AR/VR, archives, and custom art projects.
Research & Education
Intuitive software, lightweight operation, and high-quality high-resolution data help students, researchers, and educators focus on projects instead of complex setup.
