Vestil Steel Electric Hydraulic Lift Table 48 In. x 48 In. 4000 Lb. Capacity Blue - EHLT-4848-4-43

SKU EHLT-4848-4-43
$5,120.85
$5,120.85

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Prime Source Industrial, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@PrimeSourceIndustrial.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

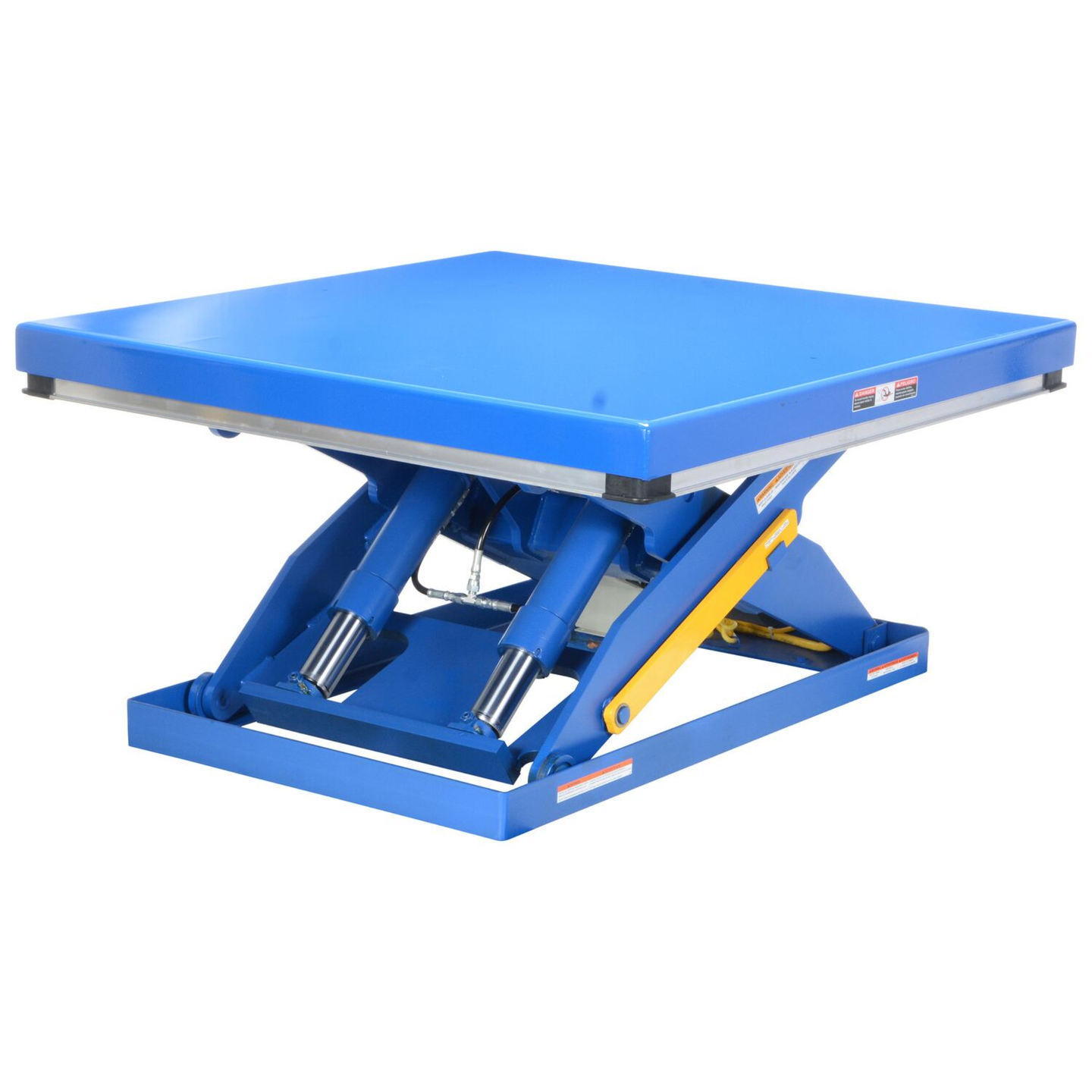

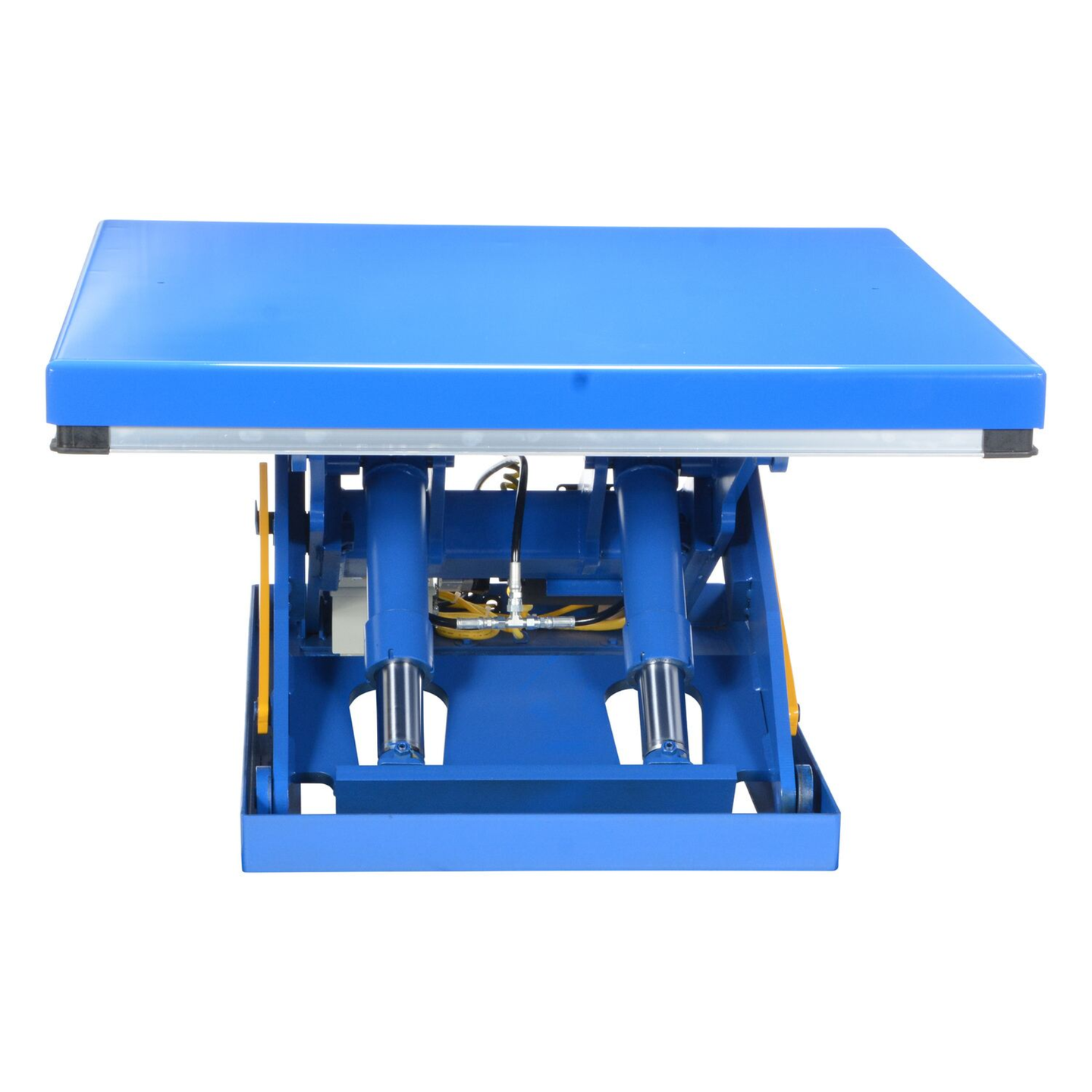

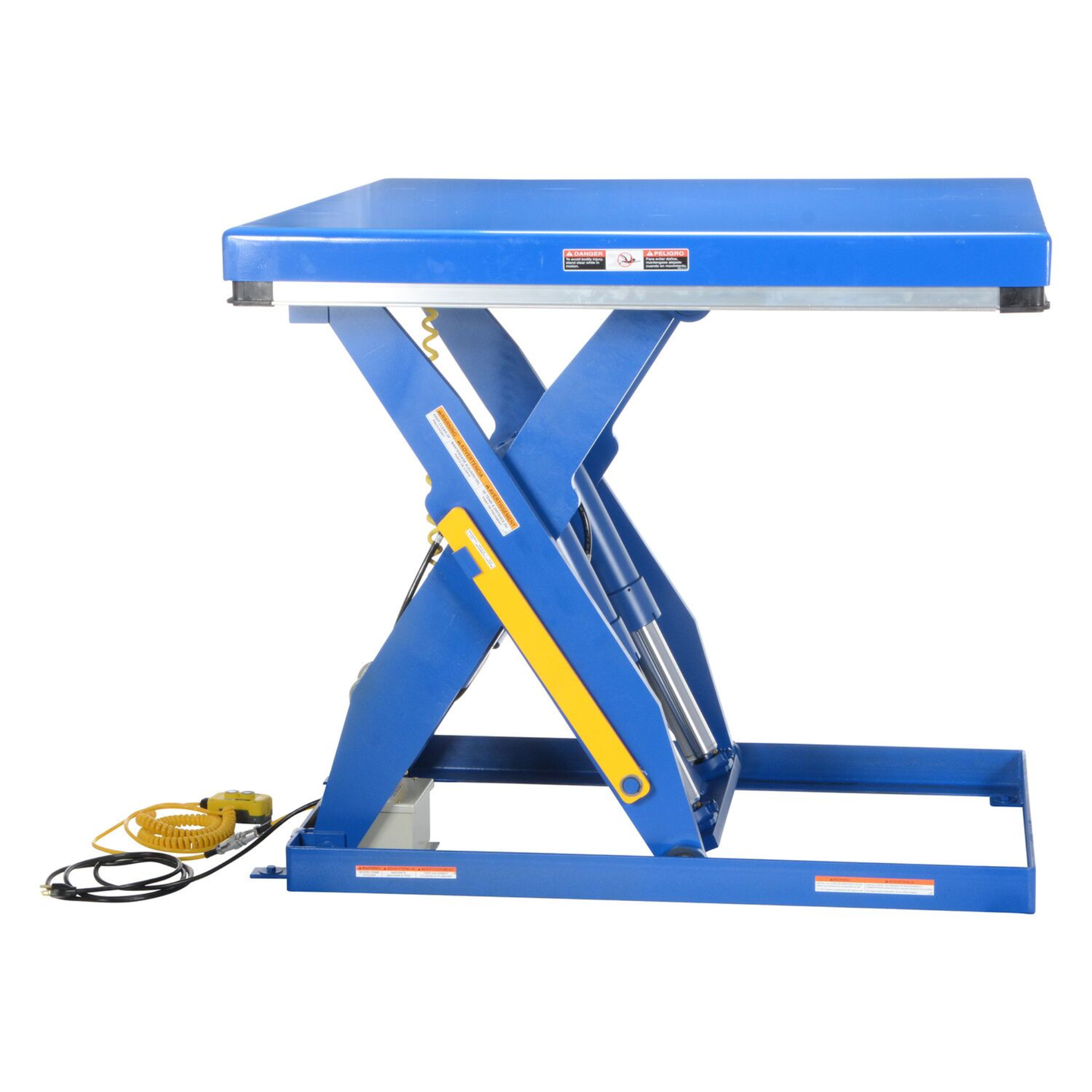

Improve material handling efficiency and workplace safety with the Vestil EHLT-4848-4-43 Electric Hydraulic Lift Table. Designed for demanding warehouse, manufacturing, assembly, and distribution environments, this heavy-duty lift table provides reliable vertical lifting performance for loads up to 4,000 lbs.

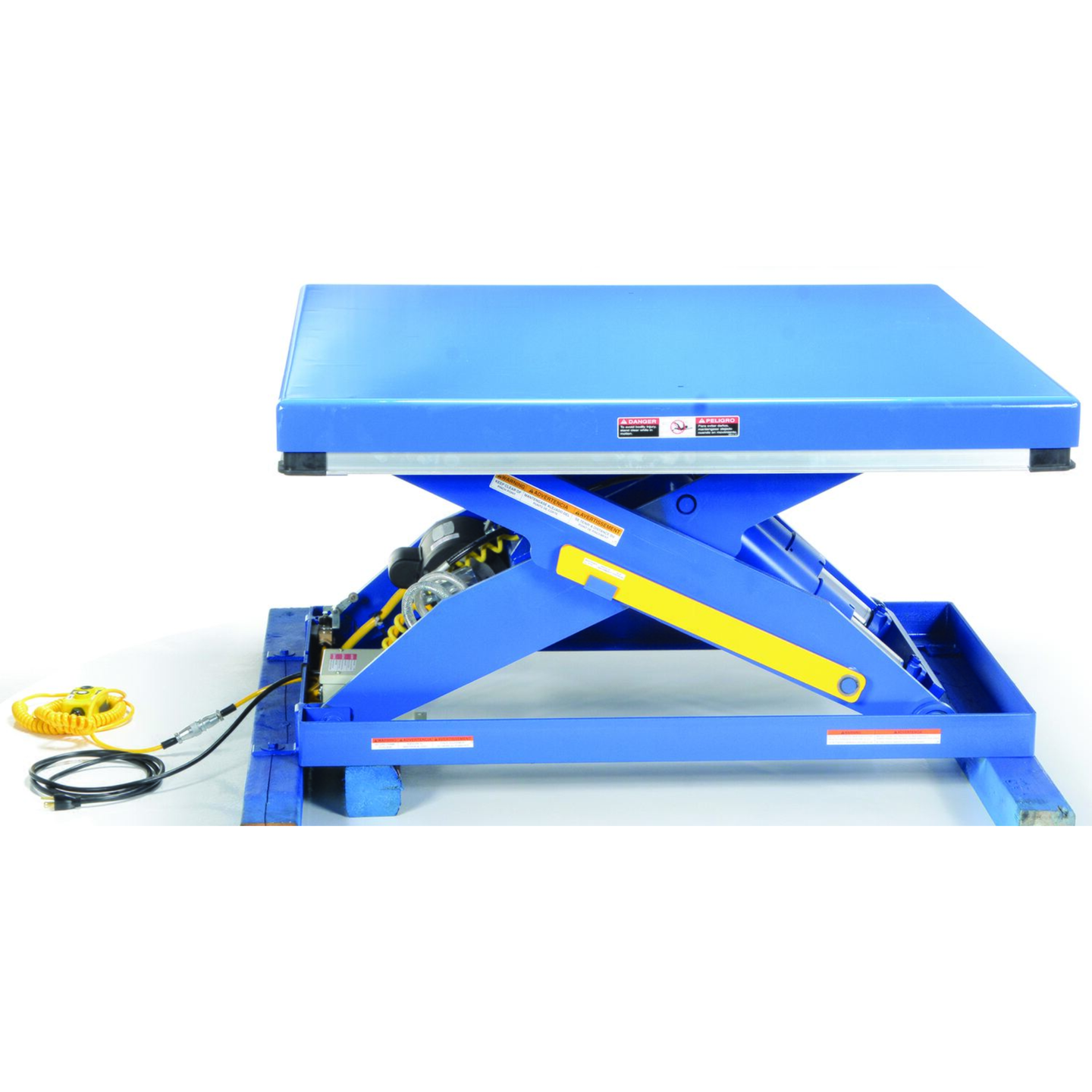

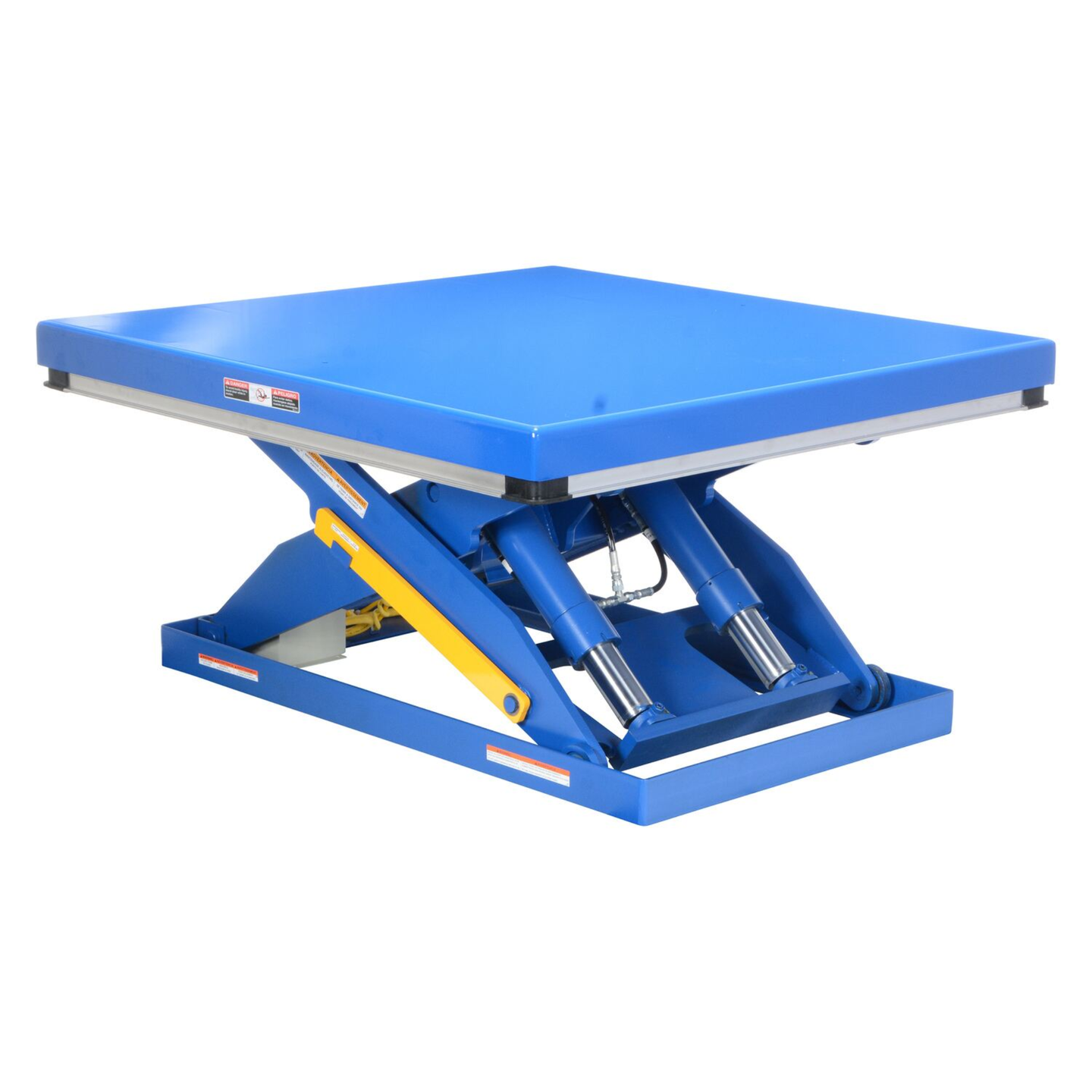

Built with rugged welded steel construction, this industrial-grade hydraulic lift table features a spacious 48-3/8" x 48-3/8" platform and delivers up to 36 inches of vertical travel, raising loads from a lowered height of 7 inches to a maximum working height of 43 inches. Its powerful 2 HP electric motor and high-efficiency hydraulic system ensure smooth, dependable lifting while minimizing operator effort.

The EHLT-4848-4-43 incorporates multiple safety systems, including an OSHA-compliant four-sided electric toe guard, internal safety velocity fuse, fused push-button controls, adjustable upper travel limit switch, and an integral maintenance prop. These advanced features help protect operators, equipment, and valuable inventory throughout daily operations.

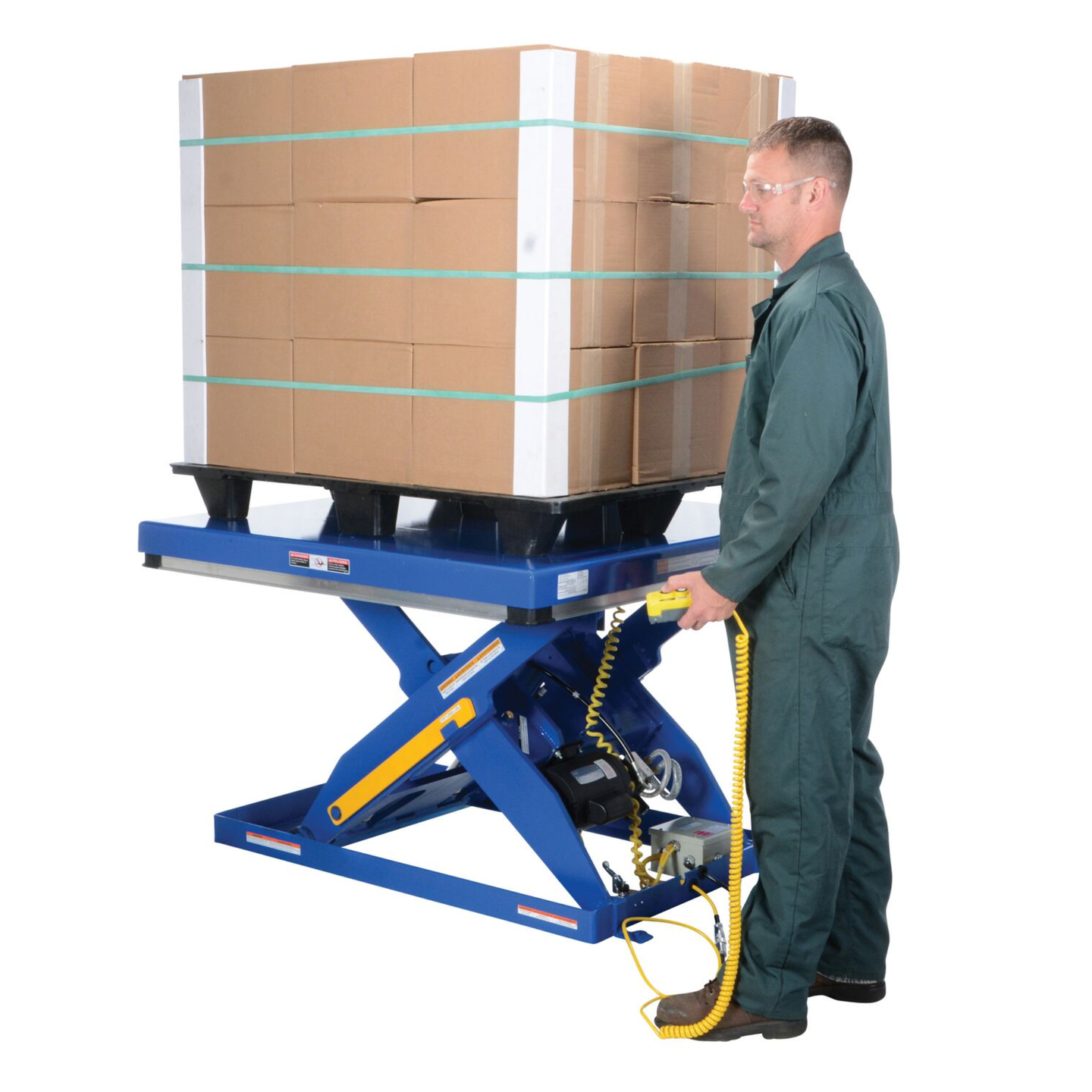

Whether handling pallets, components, machinery, or production materials, this Vestil electric hydraulic lift table provides the strength, stability, and performance required for high-volume industrial applications.

Key Features

  • Heavy-duty 4,000 lb uniform load capacity for demanding industrial applications
  • Large 48-3/8" x 48-3/8" steel platform accommodates bulky materials and equipment
  • Raises loads from 7" to 43" working height with 36" vertical travel

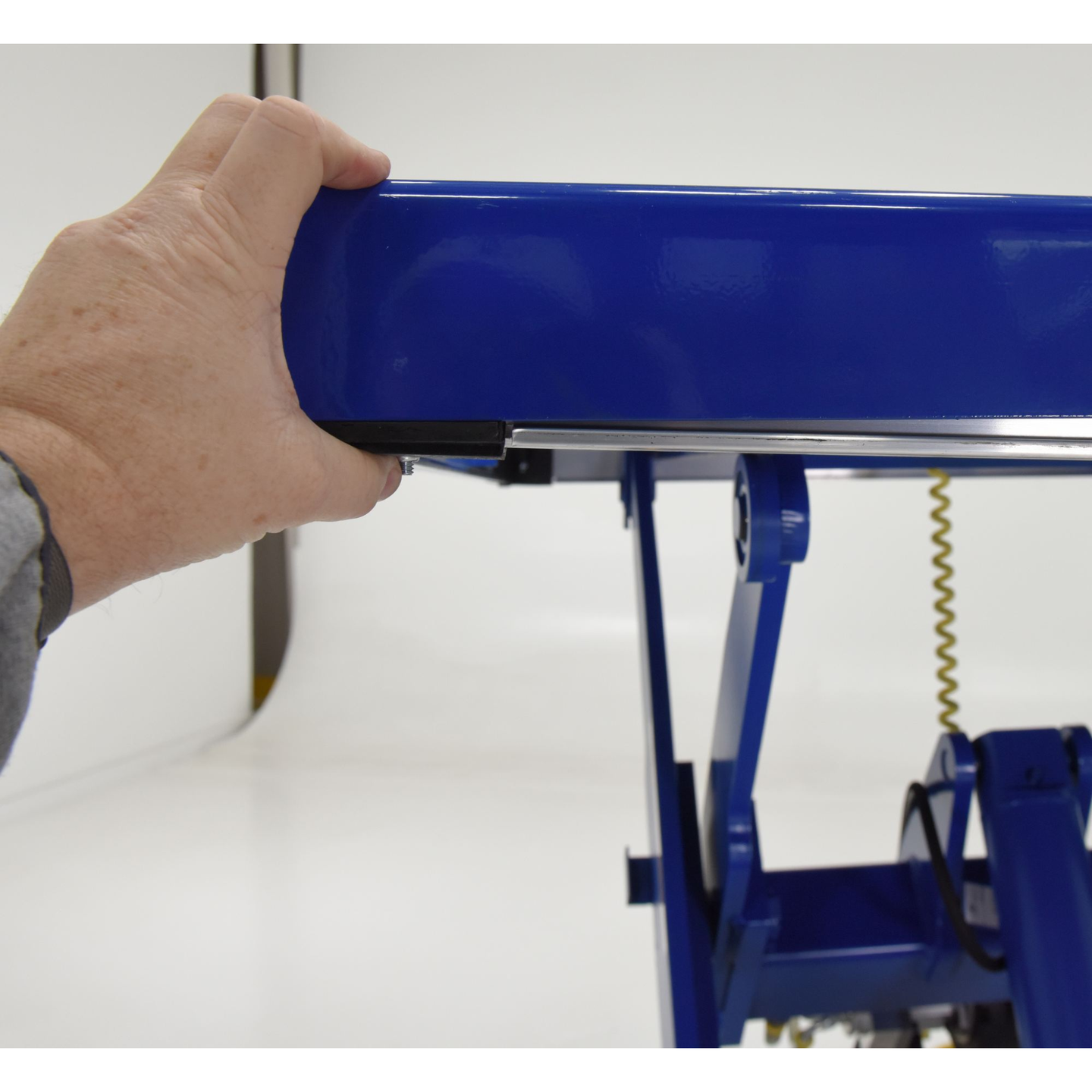

  • OSHA-compliant four-sided electric toe guard helps reduce pinch-point hazards
  • Internal safety velocity fuse maintains platform position in the event of hydraulic line failure
  • Durable displacement-style hydraulic cylinders deliver exceptional lifting strength
  • High-efficiency aluminum pressure-plated hydraulic pump enhances system performance

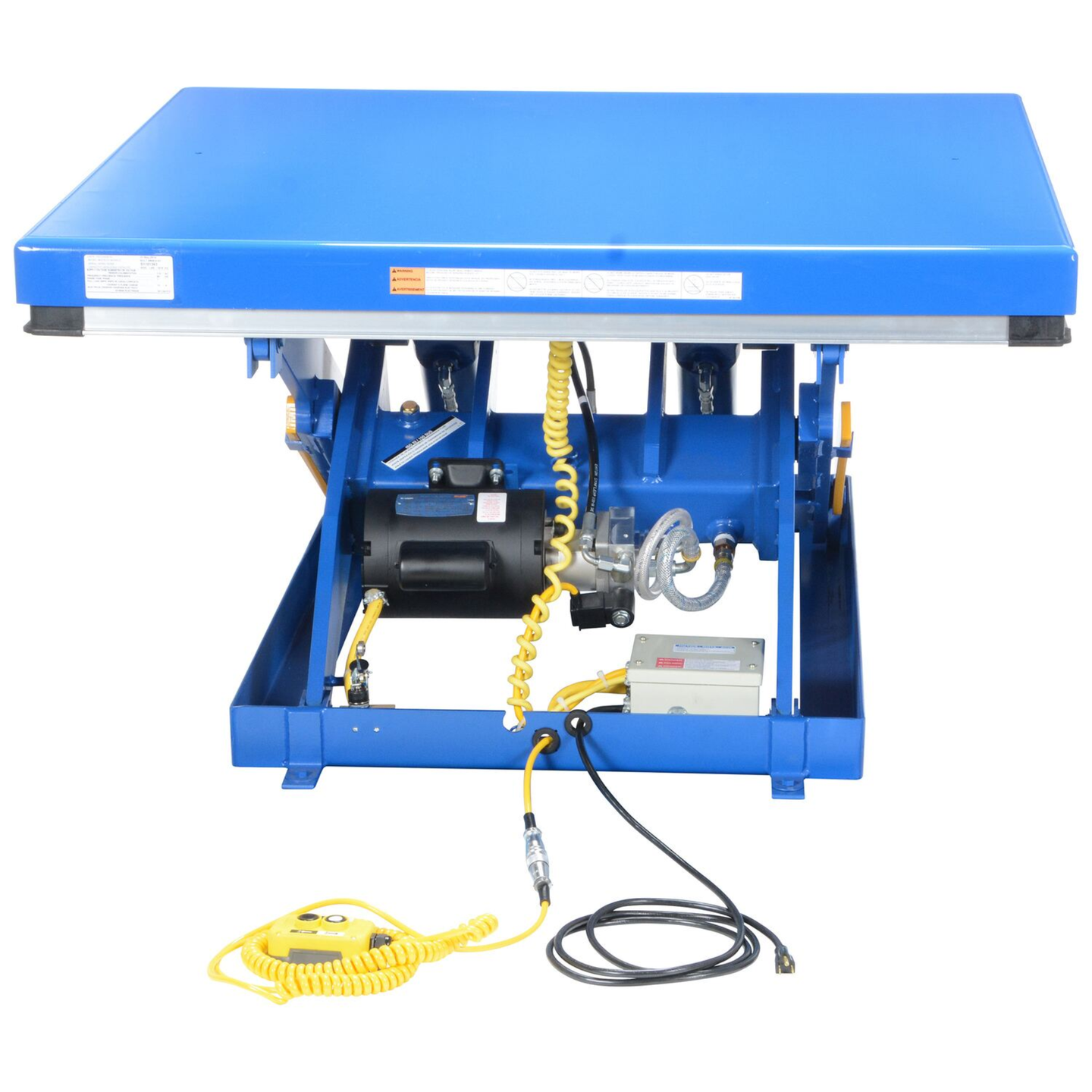

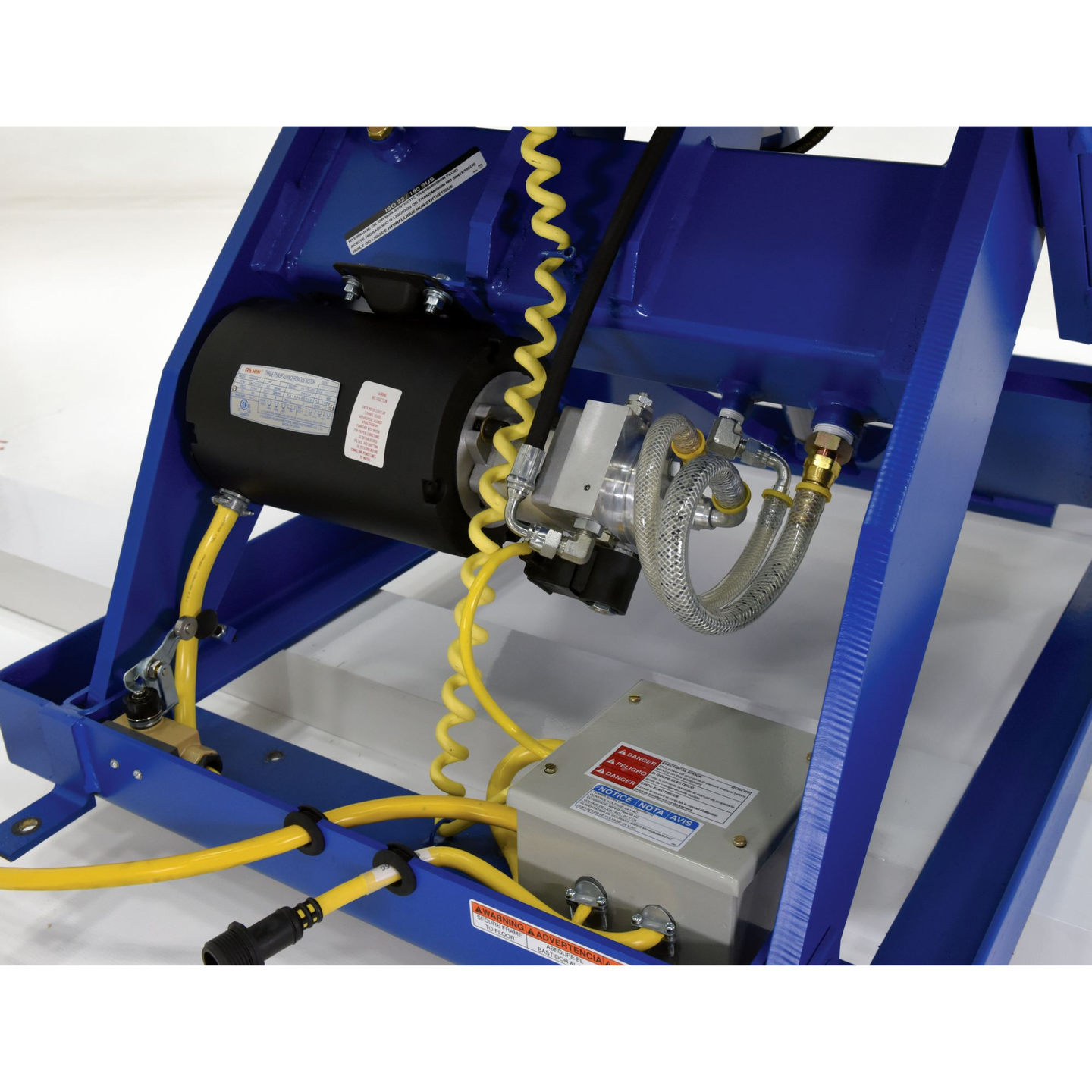

  • Fully enclosed 2 HP electric motor designed for industrial environments
  • Adjustable upper travel limit switch prevents over-travel

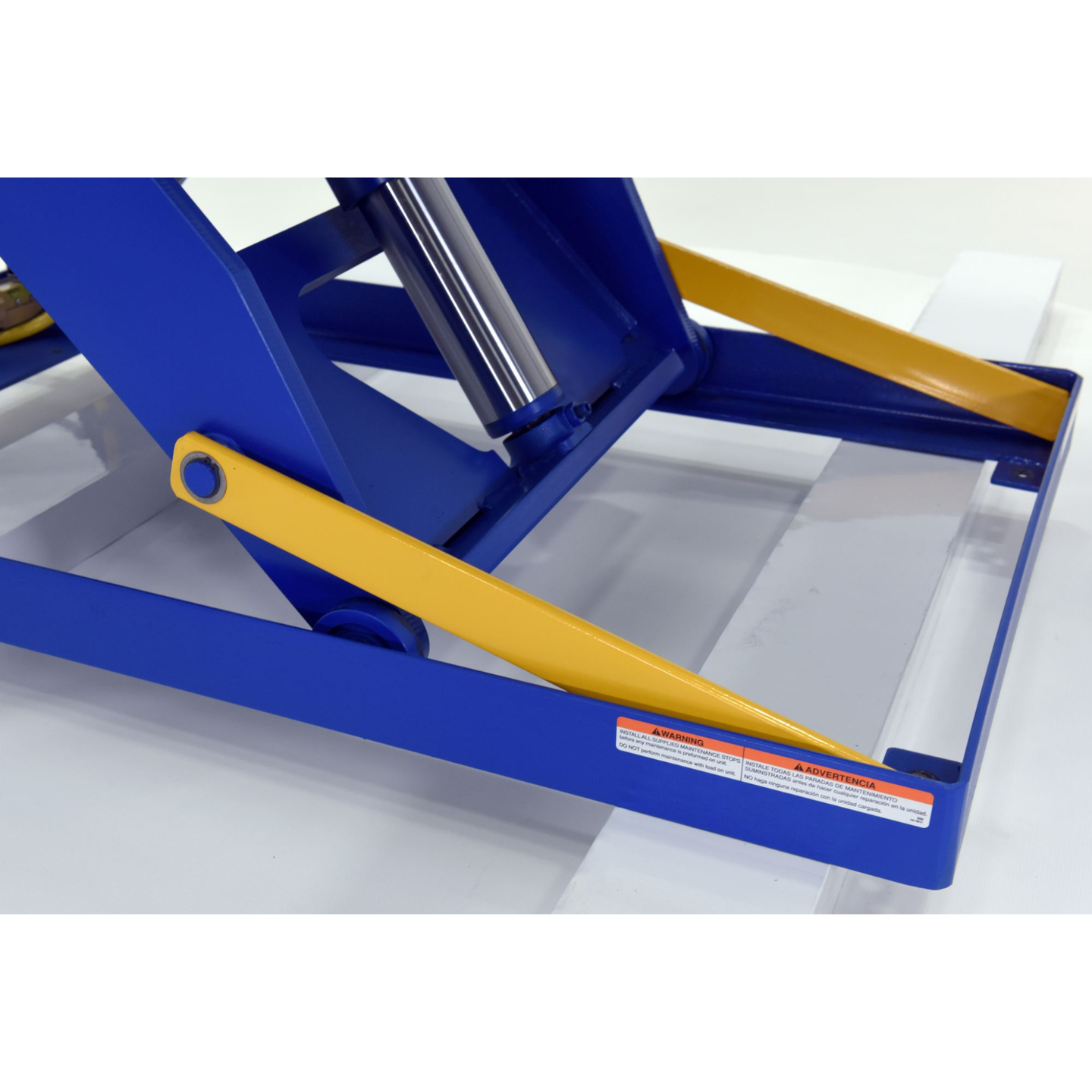

  • Integral maintenance prop supports safer servicing and inspections
  • Lifetime-lubricated bearings help reduce maintenance requirements
  • Rugged welded steel frame ensures long-term durability

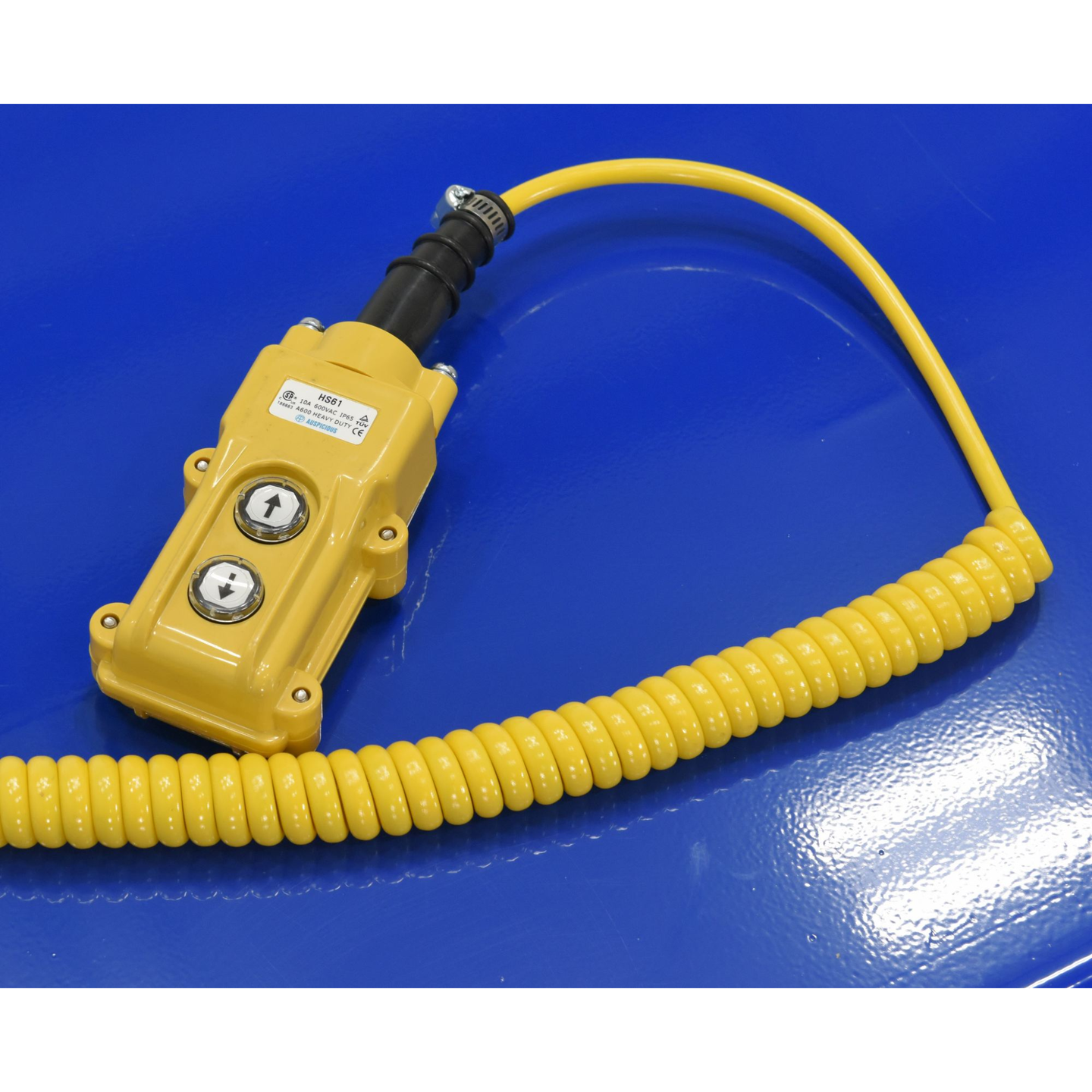

  • Convenient 24V AC push-button hand control for easy operation
  • Overload protection system helps safeguard equipment and operators

Why Choose the Vestil EHLT-4848-4-43?

The Vestil EHLT-4848-4-43 is engineered for facilities that require dependable lifting performance, superior safety, and long service life. Its high-capacity design, industrial-grade hydraulic components, and advanced safety features make it an excellent solution for reducing manual lifting, improving ergonomics, and increasing productivity across manufacturing, warehousing, and material handling operations.

Key advantages include:

  • 4,000 lb lifting capacity for heavy-duty workloads
  • Industrial-grade welded steel construction
  • Comprehensive operator safety features
  • Reliable electric-hydraulic lifting performance
  • Smooth and controlled platform movement
  • Designed for continuous use in demanding environments
  • Trusted Vestil quality and engineering

What's Included

  • Vestil EHLT-4848-4-43 Electric Hydraulic Lift Table
  • Integrated hydraulic lifting system
  • Fully enclosed 2 HP electric motor
  • 24V AC push-button hand control
  • Integral maintenance safety prop
  • Factory-installed safety components
  • Manufacturer's warranty documentation
  • Owner's operating information

Ideal Applications

  • Manufacturing facilities
  • Assembly lines
  • Warehouse operations
  • Distribution centres
  • Packaging stations
  • Production workstations
  • Material handling operations
  • Loading and unloading processes
  • Quality control stations
  • Industrial maintenance departments

Specifications

Specification Details
Manufacturer Vestil
Model Number EHLT-4848-4-43
Product Type Electric Hydraulic Scissor Lift Table
Capacity 4,000 lbs
Platform Length 48.375 in
Platform Width 48.375 in
Platform Material Steel
Raised Height 43 in
Lowered Height 7 in
Maximum Travel Distance 36 in
Travel Time 22 sec
Overall Length 51 in
Overall Width 48.375 in
Overall Height 7 in
Assembled Dimensions (W × L × H) 48.375" × 51" × 7"
Shipping Dimensions (W × D × H) 56" × 48" × 18"
Frame Material Welded Steel
Colour / Finish Blue
Power Source Electric Corded
Voltage 460V
Phase Three Phase
Frequency 60 Hz
Motor Power 2 HP
Hydraulic Component Rating 3,000 PSI
Push Button Hand Control 24V AC
Controller Cord Length 96 in (8 ft)
Overload Protection Yes
Safety Toe Guard Four-Sided OSHA-Compliant Electric Toe Guard
Internal Safety Velocity Fuse Yes
Adjustable Upper Travel Limit Switch Yes
Integral Maintenance Prop Yes
Bearings Lifetime Lubricated
Operation Method Hand Operated
Portable No
Casters / Wheels None
Net Weight 760 lbs
Shipping Weight 918 lbs
Assembly Required No (Fully Assembled)
Warranty 1 Year Limited Parts Warranty
Wearable Parts Warranty 90 Days Limited Warranty

Warranty

Manufacturer's Warranty

  • 1 Year Limited Parts Warranty

Wearable Parts Warranty

  • 90 Day Limited Warranty on Wearable Components

Vestil warrants the lift table against defects in materials and workmanship under normal operating conditions. Warranty coverage is subject to manufacturer terms and conditions.

Downloads

Frequently Asked Questions

► What is the thickness of the lift table platform?

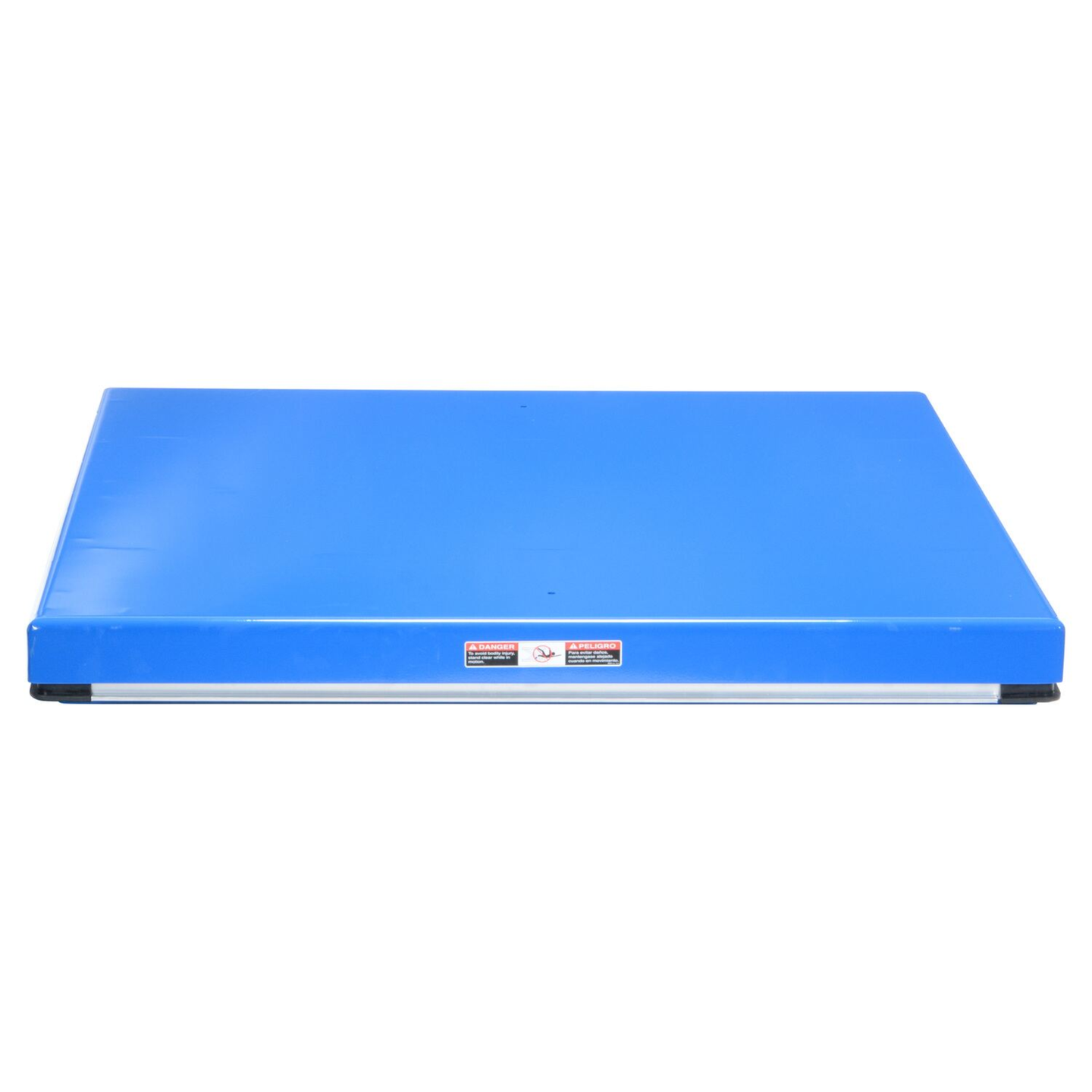

The top plate on the Vestil EHLT series lift table is constructed from 1/4" thick steel.


► How long does it take for the lift table to raise and lower when configured with 115V single-phase power?
For the EHLT-4848-1-43 configured with 115V single-phase power, the platform raises to the maximum height of 43" in approximately 15 seconds and lowers to 7" in approximately 16 seconds.


► Are Vestil EHLT scissor lift tables powder coated?
Quick Ship (QS) models feature a powder-coated deck, and some smaller bolt-on components are powder coated as well. The majority of the lift table structure is finished with a durable liquid-painted coating.


► Can the EHLT lift table be installed in a pit?
Yes. Lifting eyes can be bolted through the top platform to safely lower the EHLT lift table into a pit from overhead during installation. Contact a sales representative for additional installation details.


► What is the standard voltage and phase configuration, and can it be modified?
The standard configuration is 460V, 3-phase power. Alternative voltage and phase options are available to meet specific facility requirements. Contact a sales representative for available electrical configurations.


► Is a 50Hz, 3-phase, 400V motor available for this lift table?
Yes. Vestil's standard 60Hz, 3-phase, 460VAC motor is compatible with 50Hz, 3-phase, 400VAC applications.


► Does the lift table use power-up and gravity-down operation?
Yes. The EHLT series operates using a power-up, gravity-down hydraulic system for reliable lifting and controlled lowering.


► Can the lift table be used continuously throughout the day?
The recommended duty cycle is approximately 12 lifting cycles per hour. Operation beyond the recommended cycle rate may affect equipment performance and longevity.
