Vestil Steel Electric Hydraulic Lift Table 48 In. x 48 In. 3000 Lb. Capacity Blue - EHLT-4848-3-43

SKU EHLT-4848-3-43
$5,405.48
$5,405.48

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Prime Source Industrial, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

1. Return Window

You can request a return within 30 days of receiving your order. Unfortunately, we’re unable to accept returns after that time frame.

2. Who Pays for Return Shipping?

  • If your item arrives damaged, defective, or incorrect, we’ll cover the return shipping cost.
  • If you’re returning an item because you changed your mind, you’ll be responsible for return shipping fees.

3. Damaged or Defective Items

Received something broken or not working properly? Contact us within 30 days. We’ll provide a prepaid return label and once the item is returned and inspected, we’ll issue either a full refund or a replacement—including any original shipping costs.

4. Changed Your Mind?

If you no longer want the item, you can return it within 30 days—as long as it's unused, in its original packaging, and in resellable condition. You’ll need to handle the return shipping, and once we receive and inspect it, we’ll refund the product cost (excluding shipping).

5. Refund Processing

Once we receive and approve your return, we’ll send a confirmation email and issue a refund to your original payment method within 7 business days. Please allow additional time for banks or credit card companies to process and reflect the refund.

If it’s been over 10 business days since your refund was approved and you still don’t see it, contact us at support@PrimeSourceIndustrial.com and we’ll look into it immediately.

6. Restocking Fees

In some cases, a restocking fee may apply depending on the item and return reason. If applicable, we’ll clearly communicate this during your return request process.

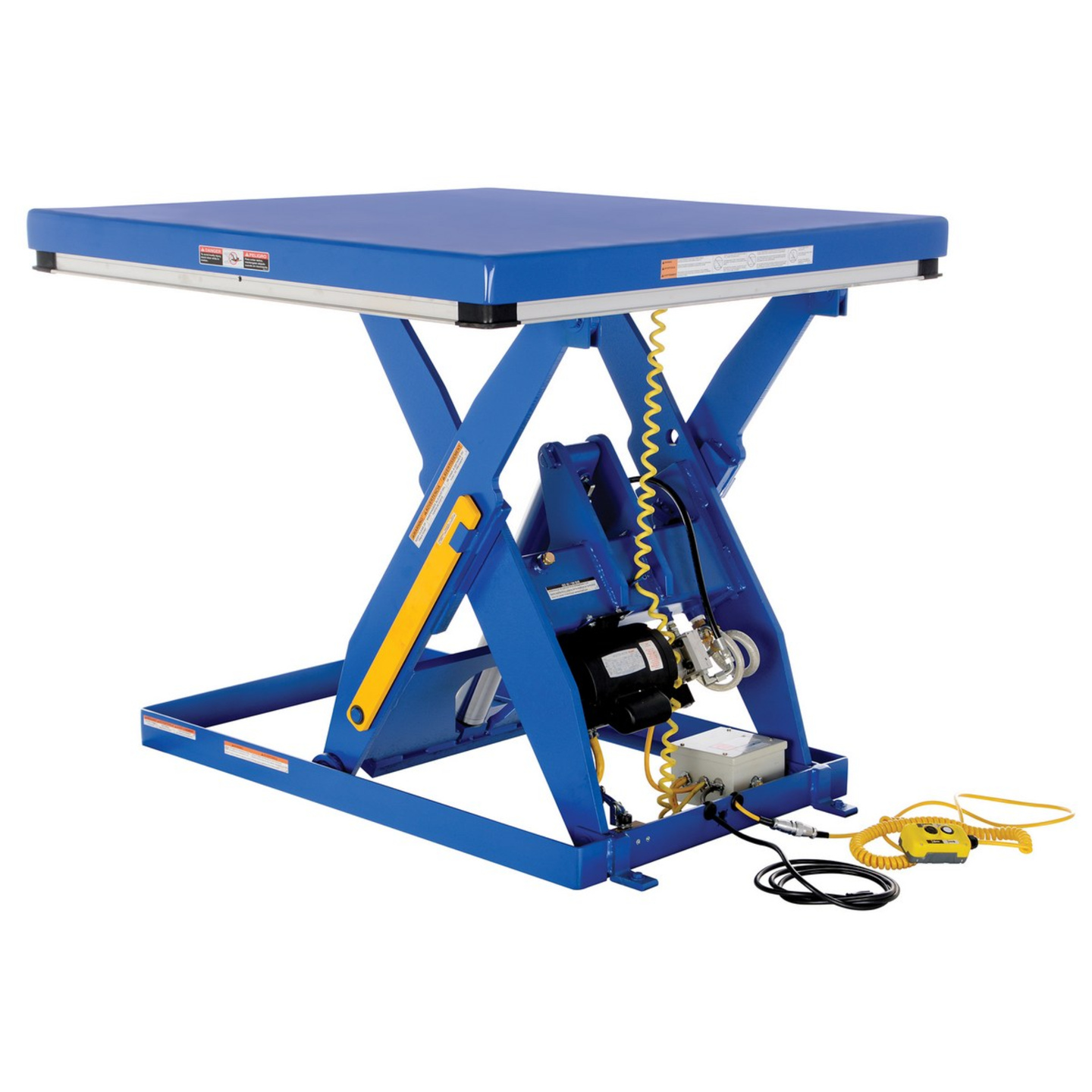

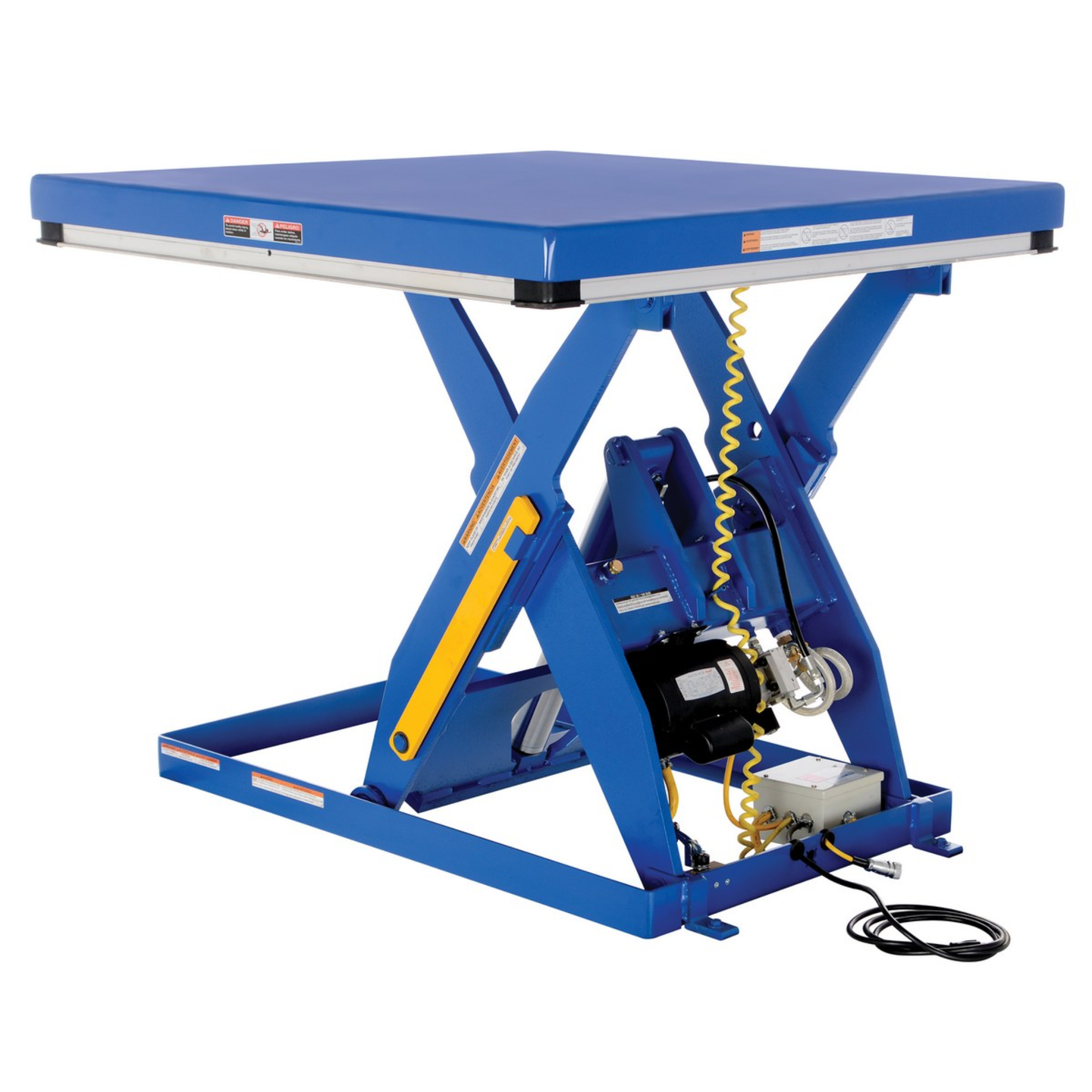

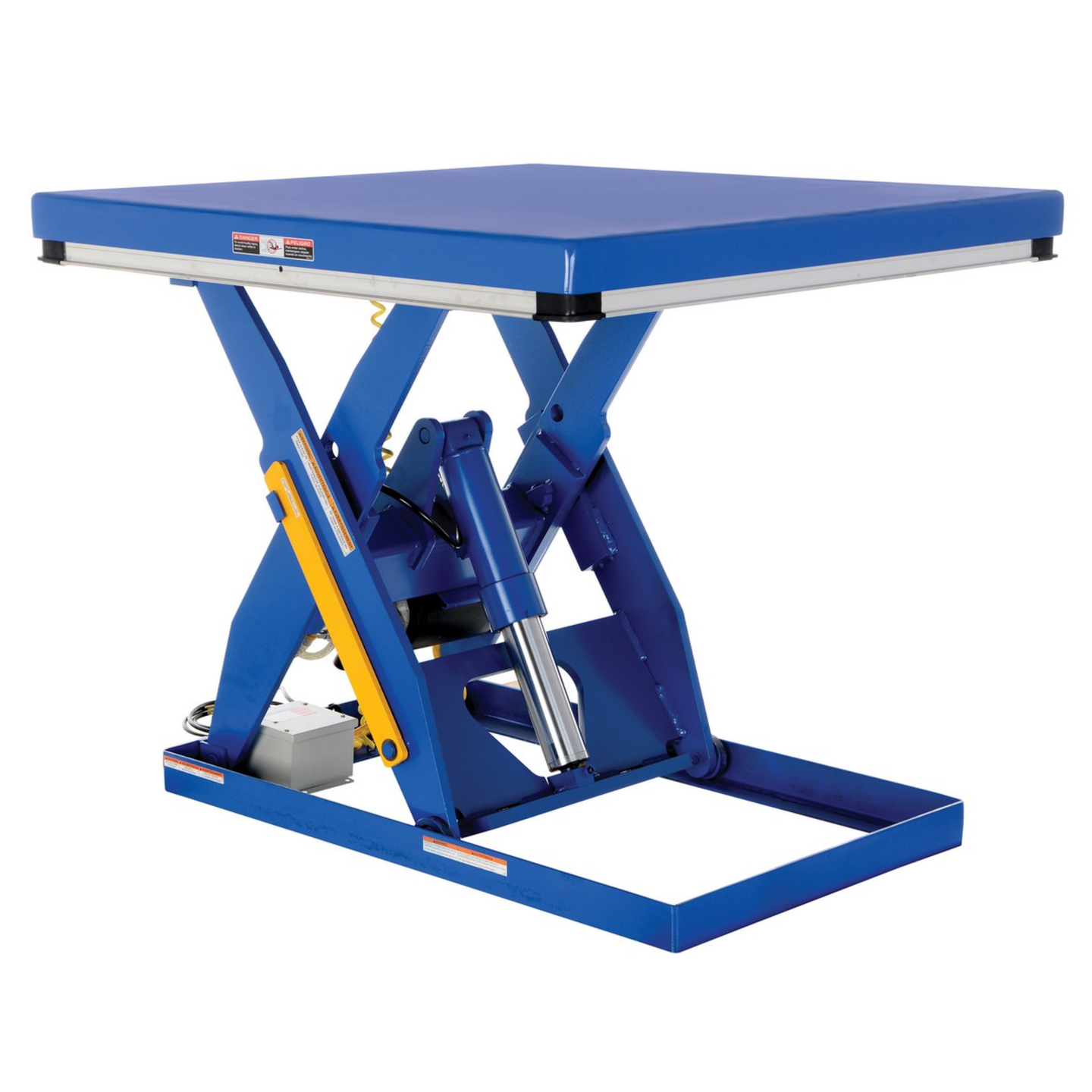

The Vestil EHLT-4848-3-43 Electric Hydraulic Lift Table is a heavy-duty material handling solution engineered to improve workplace productivity, safety, and ergonomics in manufacturing plants, warehouses, distribution centres, and industrial facilities. Featuring a rugged welded steel construction and a generous 48" x 48" platform, this electric hydraulic lift table provides reliable lifting performance for loads up to 3,000 lbs.

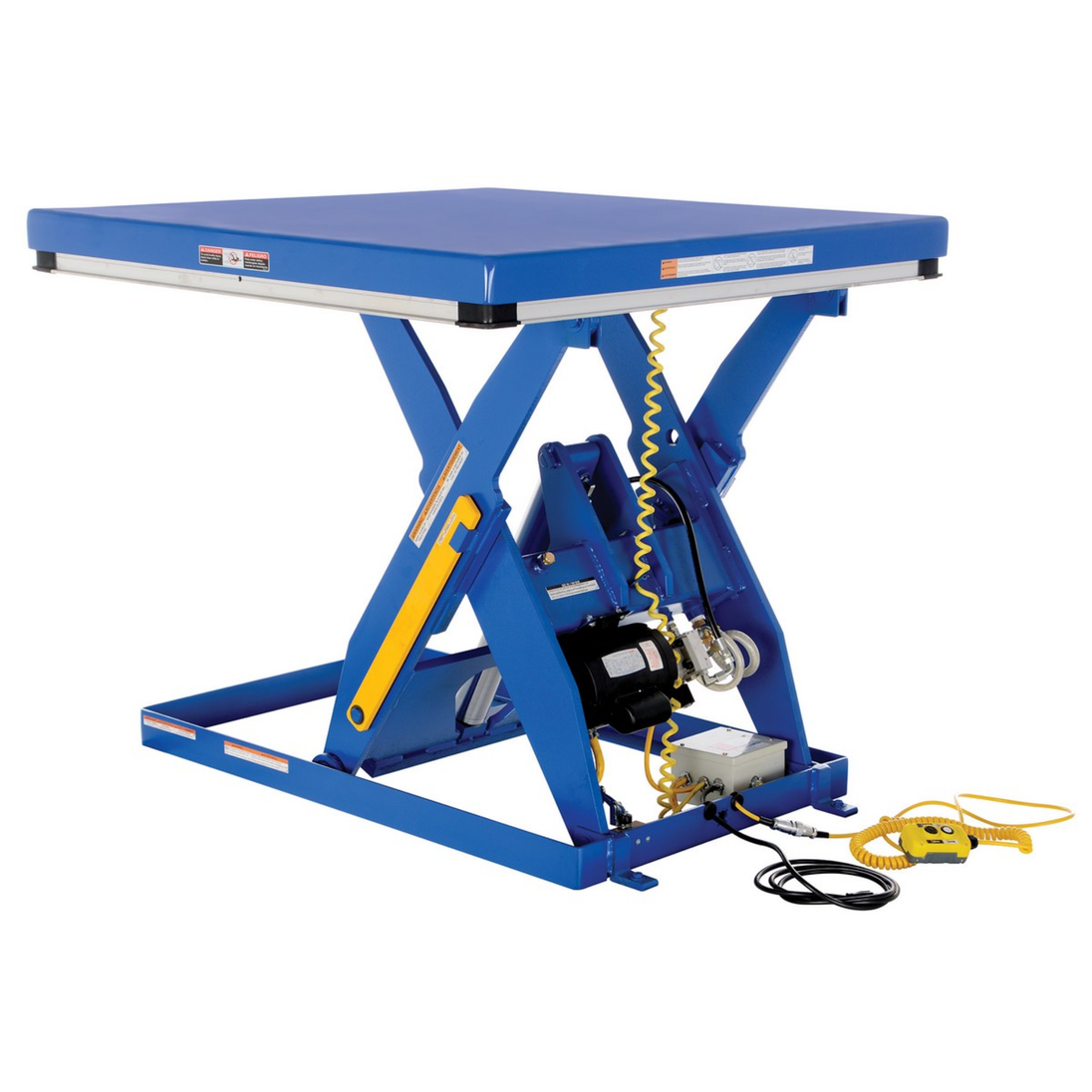

Powered by a fully enclosed 2 HP electric motor and precision hydraulic system, the EHLT-4848-3-43 delivers smooth, controlled lifting with a maximum raised height of 43 inches and 36 inches of vertical travel. Advanced safety features—including a four-sided OSHA-compliant toe guard, internal velocity fuse, maintenance prop, and adjustable upper travel limit switch—help protect operators and equipment during daily operation.

Designed for demanding industrial environments, this electric scissor lift table combines dependable performance, low maintenance requirements, and long-term durability to streamline material positioning, pallet handling, assembly operations, and workstation applications.

Key Features

  • 3,000 lb uniform load capacity for heavy-duty industrial applications
  • Large 48.375" x 48.375" steel platform accommodates pallets, containers, and equipment
  • Electric hydraulic lifting system provides smooth and consistent lifting performance

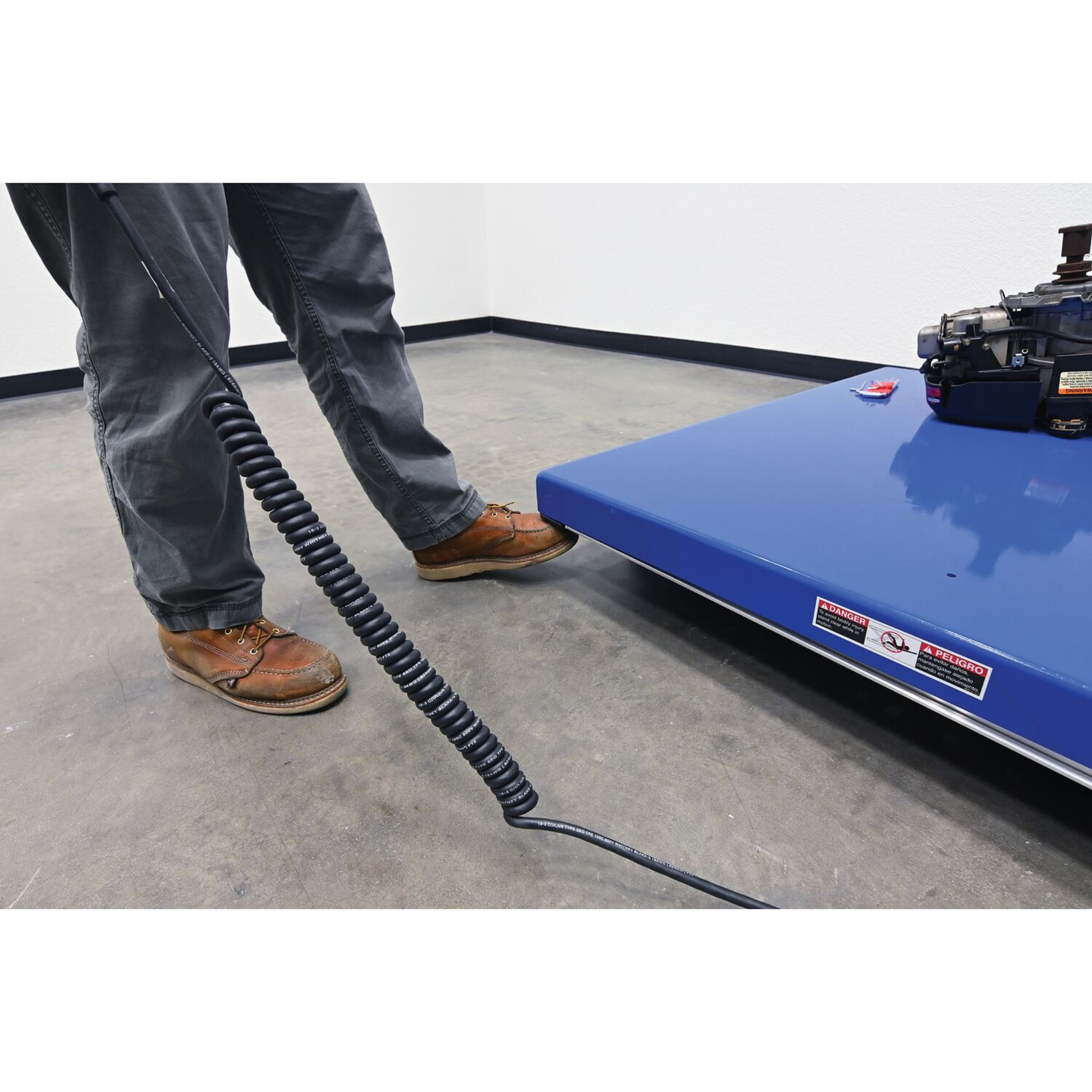

  • OSHA-compliant four-sided perimeter toe guard enhances operator safety
  • Internal hydraulic velocity fuse maintains platform position in the event of hose failure

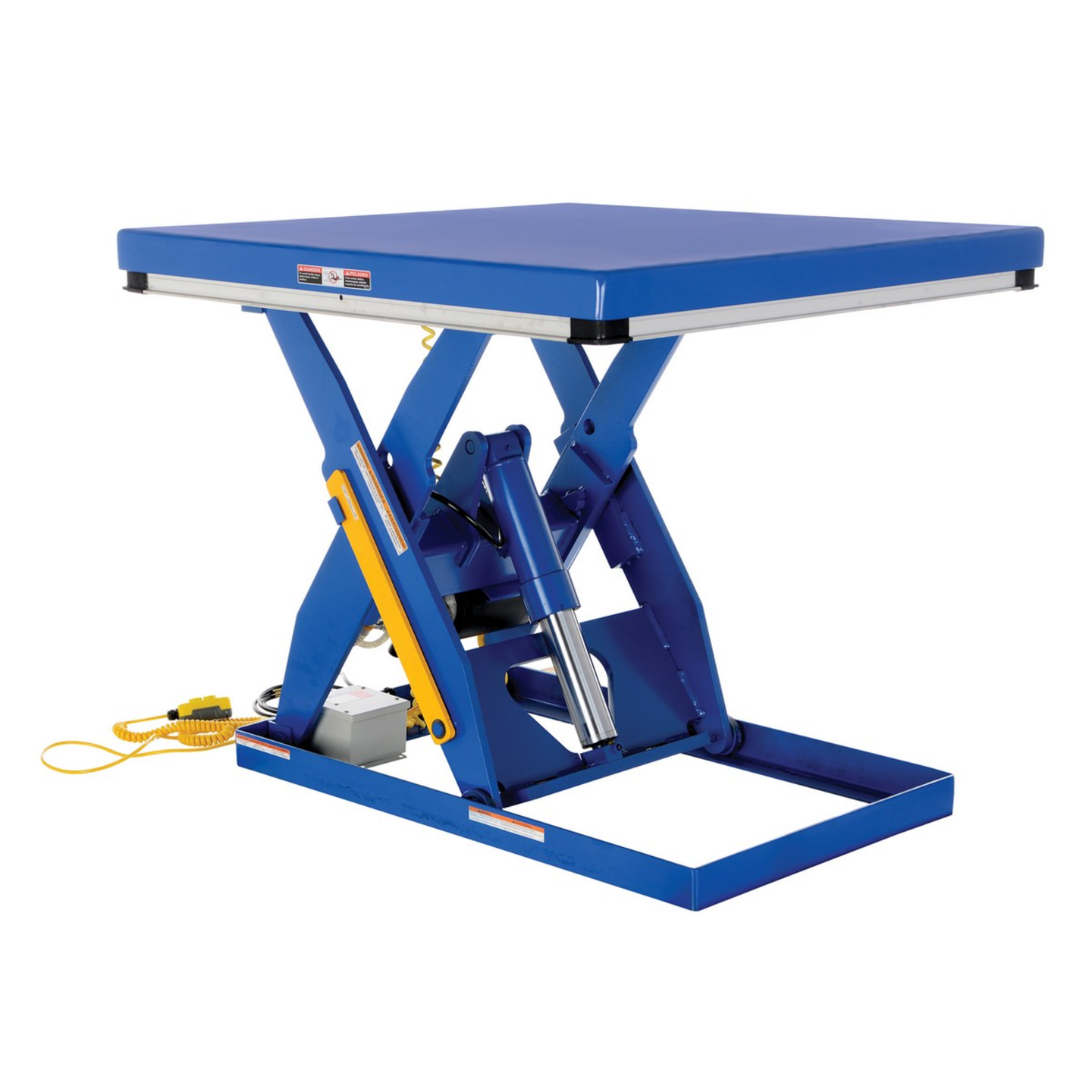

  • Heavy-duty displacement-style hydraulic cylinders deliver superior lifting strength
  • Adjustable upper travel limit switch prevents over-travel and improves operational control
  • Durable pressure-plated aluminum hydraulic pump maximises system efficiency

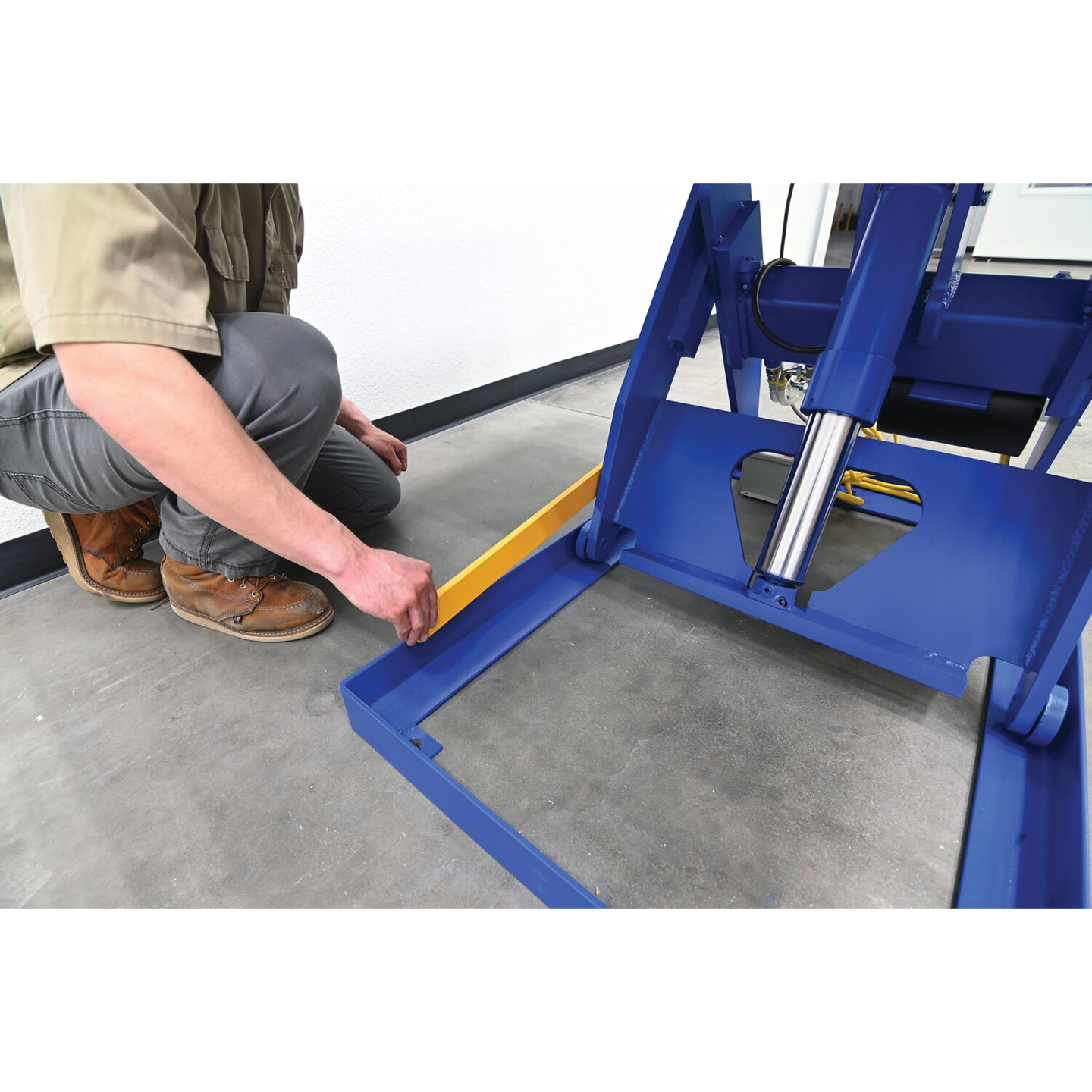

  • Integral maintenance prop allows safe servicing and inspection
  • Fully enclosed 2 HP electric motor protects critical components from industrial environments
  • Lifetime lubricated bearings reduce maintenance requirements
  • Rugged welded steel construction built for continuous industrial use

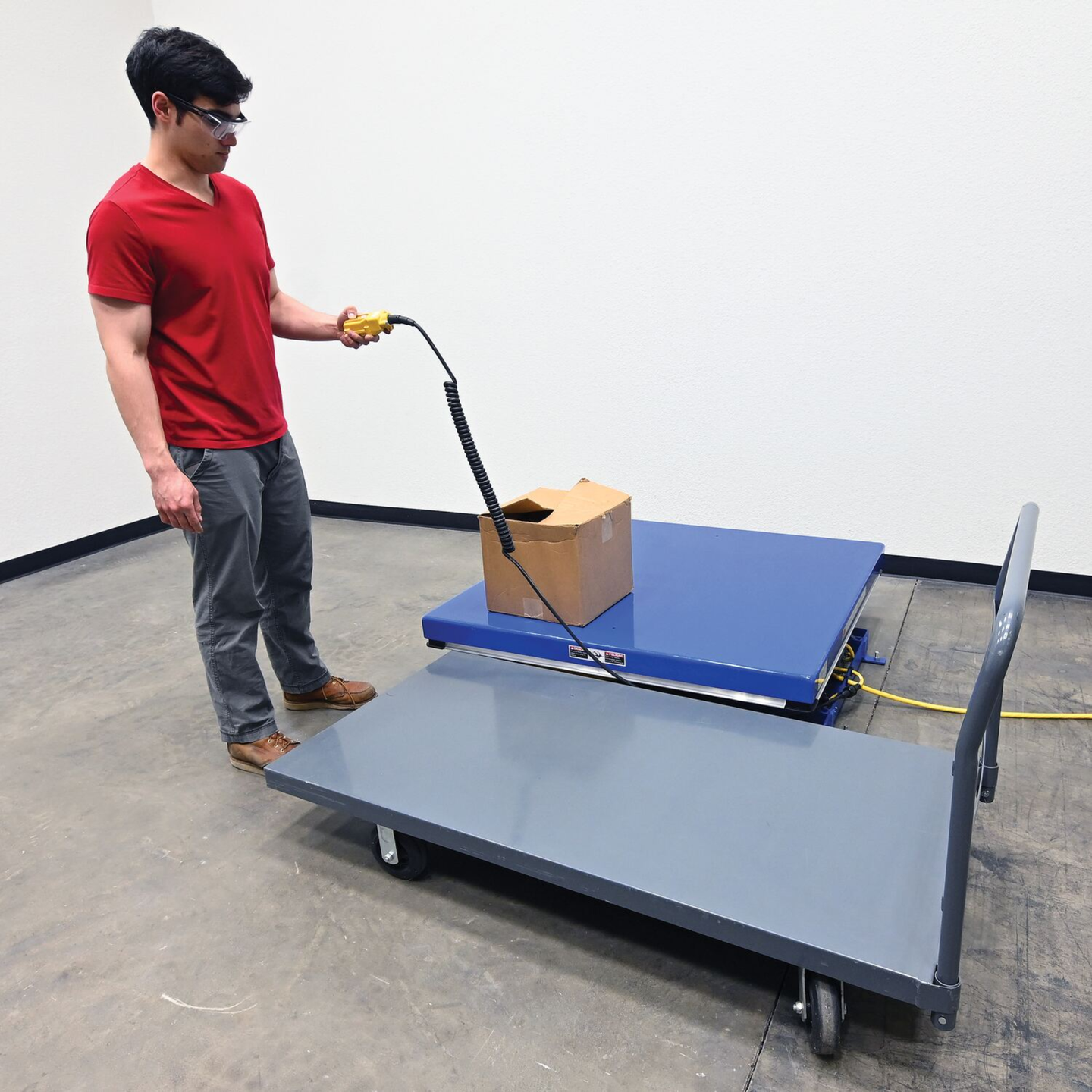

  • 24V AC push-button hand control for convenient operation
  • Overload protection enhances system reliability and equipment longevity

Why Choose the Vestil EHLT-4848-3-43?

The Vestil EHLT-4848-3-43 is designed for operations that require dependable lifting performance, enhanced workplace safety, and long-term durability. Its industrial-grade hydraulic system, OSHA-compliant safety features, and heavy-duty steel construction make it an excellent choice for facilities seeking to reduce manual lifting, improve ergonomics, and increase operational efficiency.

Whether used for production lines, pallet positioning, assembly stations, or warehouse material handling, this lift table delivers consistent performance while helping create a safer and more productive work environment.

What's Included

  • Vestil EHLT-4848-3-43 Electric Hydraulic Lift Table
  • Integrated hydraulic lifting system
  • Fully enclosed 2 HP electric motor
  • 24V AC push-button hand control
  • Integral maintenance safety prop
  • Factory-installed safety toe guard system
  • Owner's documentation

Ideal Applications

  • Manufacturing facilities
  • Warehousing and distribution centres
  • Packaging operations

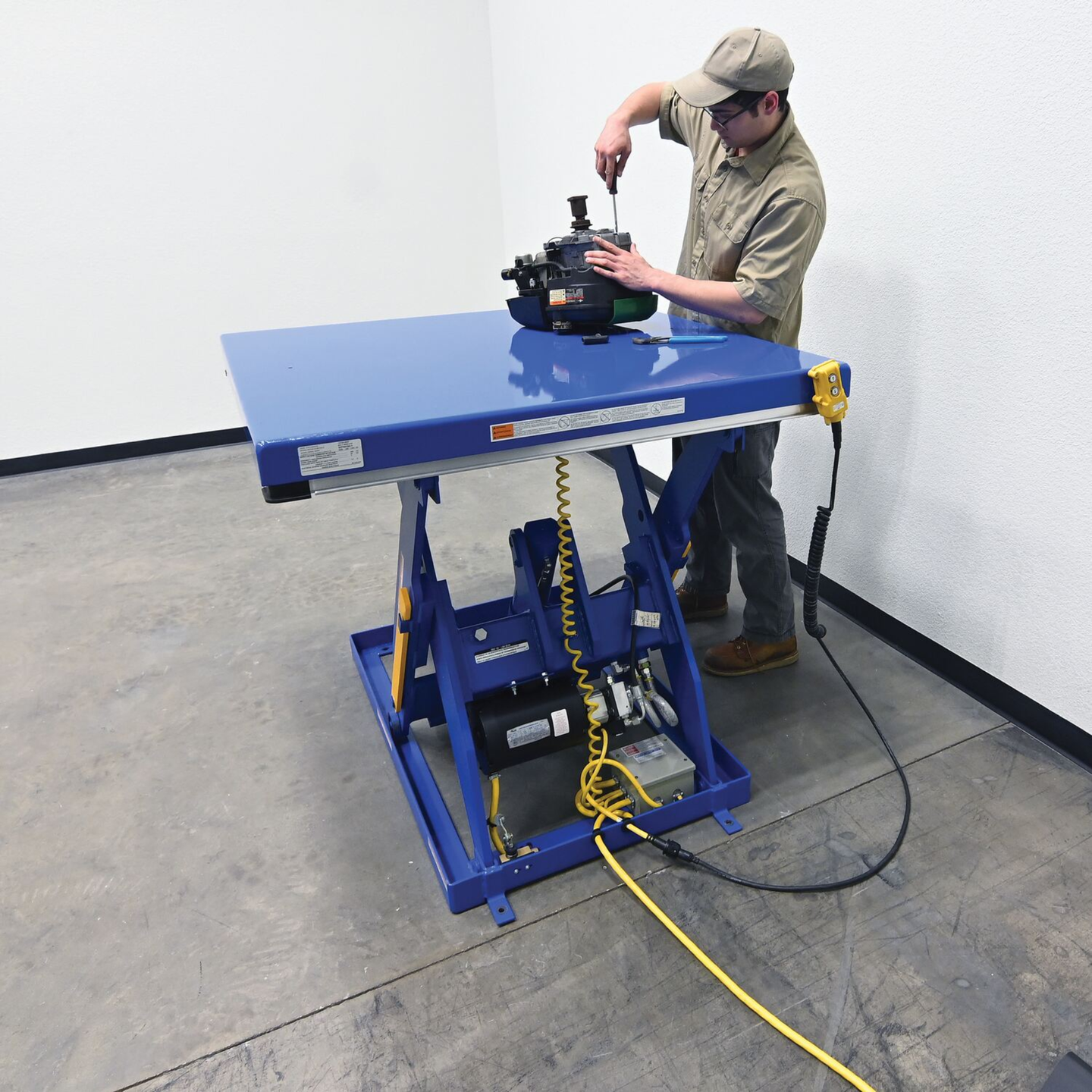

  • Assembly workstations
  • Production lines
  • Shipping and receiving departments
  • Material staging areas
  • Industrial maintenance facilities
  • Machine loading and unloading
  • Pallet handling operations

Specifications

Specification Details
Manufacturer Vestil
Model EHLT-4848-3-43
Product Type Electric Hydraulic Scissor Lift Table
Load Capacity 3,000 lbs
Platform Size (L x W) 48.375 in x 48.375 in
Platform Material Steel
Frame Material Welded Steel
Finish / Colour Blue

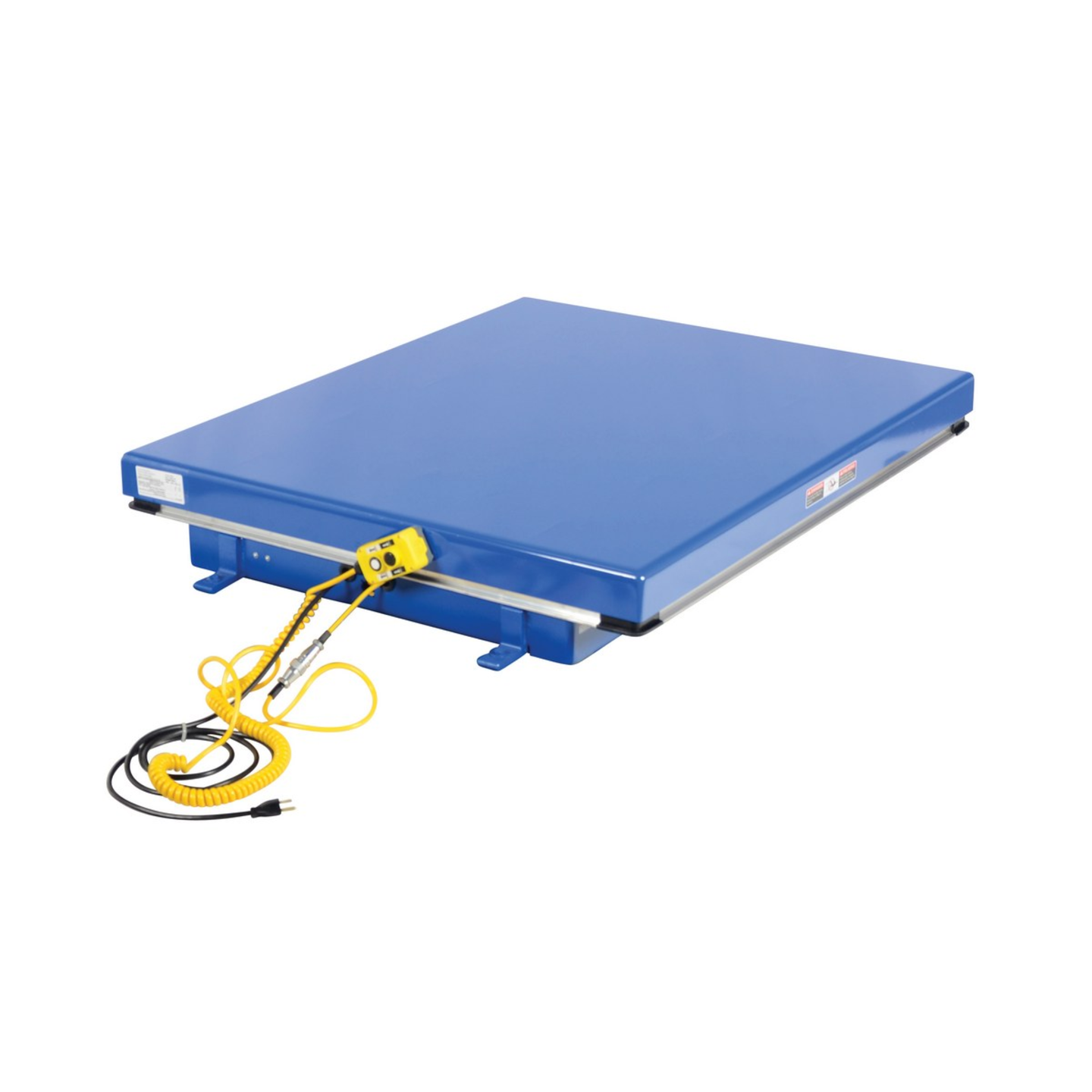

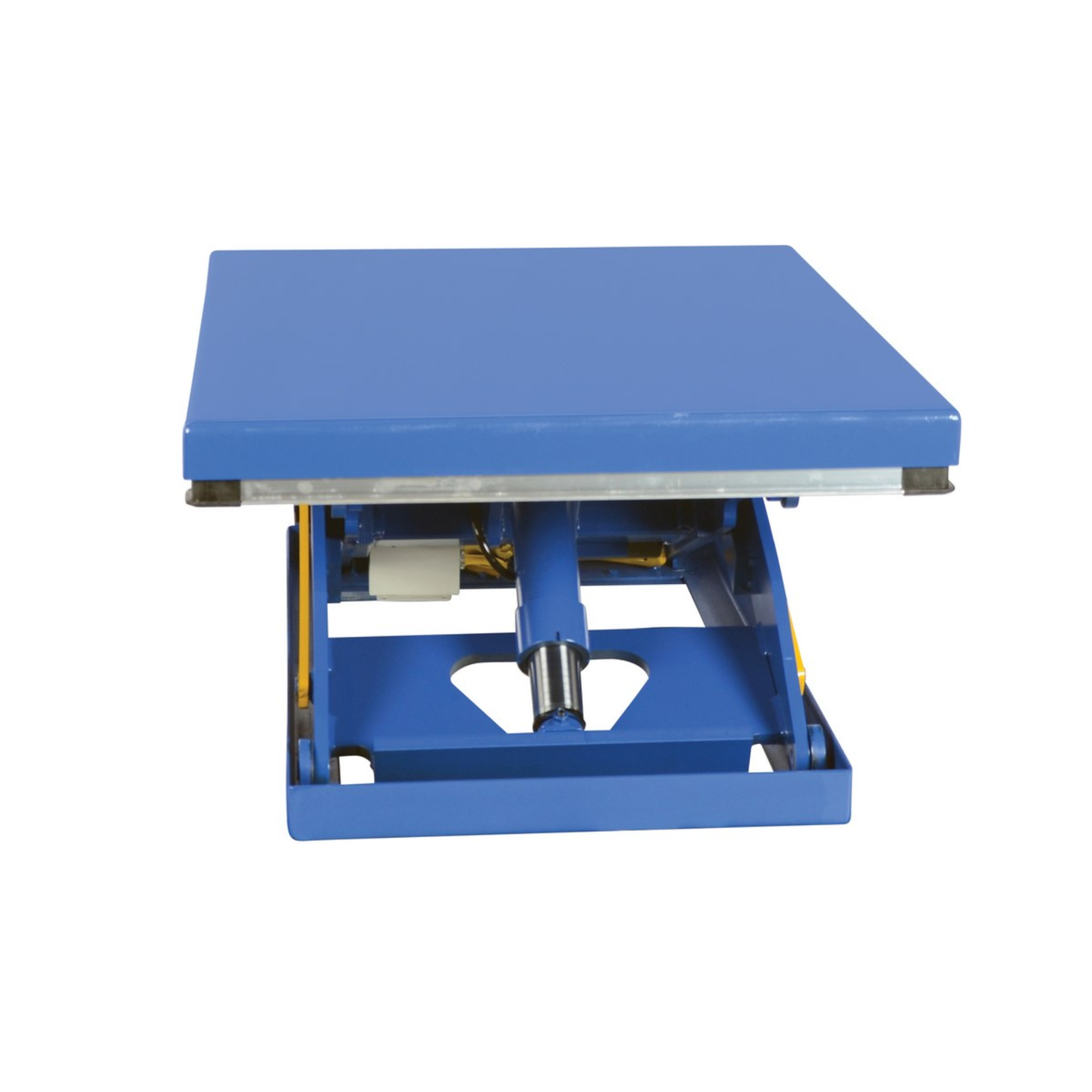

Minimum Height 7 in
Maximum Height 43 in
Vertical Travel 36 in
Overall Length 51 in
Overall Width 48.375 in
Overall Height 7 in
Assembled Weight 732 lbs
Shipping Weight 841 lbs
Package Dimensions 52 in x 52 in x 15 in
Power Source Electric (Corded)
Voltage 460V
Phase 3 Phase
Frequency 60 Hz
Motor Power 2 HP
Hydraulic Pressure Rating 3,000 PSI
Travel Time 16 seconds
Control Voltage 24V AC
Controller Cord Length 8 ft (96 in)
Operation Method Hand Push-Button Control
Overload Protection Yes
Safety Features Toe guard, velocity fuse, maintenance prop, limit switch
Mobility Non-portable (No wheels/casters)
Assembly Status Fully assembled

Warranty

Manufacturer's Warranty

  • 1-Year Limited Parts Warranty

Wearable Components Warranty

  • 90-Day Wear Parts Warranty

Vestil warrants the lift table against defects in materials and workmanship under normal industrial use. Refer to the manufacturer's warranty documentation for complete coverage details.

Downloads

Frequently Asked Questions

► What is the thickness of the lift table platform?
The top plate on the Vestil EHLT series lift table is constructed from 1/4" thick steel.


► How long does it take for the lift table to raise and lower when configured with 115V single-phase power?
For the EHLT-4848-1-43 configured with 115V single-phase power, the platform raises to the maximum height of 43" in approximately 15 seconds and lowers to 7" in approximately 16 seconds.


► Are Vestil EHLT scissor lift tables powder coated?
Quick Ship (QS) models feature a powder-coated deck, and some smaller bolt-on components are powder coated as well. The majority of the lift table structure is finished with a durable liquid-painted coating.


► Can the EHLT lift table be installed in a pit?
Yes. Lifting eyes can be bolted through the top platform to safely lower the EHLT lift table into a pit from overhead during installation. Contact a sales representative for additional installation details.


► What is the standard voltage and phase configuration, and can it be modified?
The standard configuration is 460V, 3-phase power. Alternative voltage and phase options are available to meet specific facility requirements. Contact a sales representative for available electrical configurations.


► Is a 50Hz, 3-phase, 400V motor available for this lift table?
Yes. Vestil's standard 60Hz, 3-phase, 460VAC motor is compatible with 50Hz, 3-phase, 400VAC applications.


► Does the lift table use power-up and gravity-down operation?
Yes. The EHLT series operates using a power-up, gravity-down hydraulic system for reliable lifting and controlled lowering.


► Can the lift table be used continuously throughout the day?
The recommended duty cycle is approximately 12 lifting cycles per hour. Operation beyond the recommended cycle rate may affect equipment performance and longevity.


ABOUT VESTIL MANUFACTURING

Founded in 1957, Vestil Manufacturing is a leading manufacturer and supplier of material handling, loading dock, and workplace safety equipment. As a fourth-generation family-owned company, Vestil offers one of the industry's most extensive product portfolios, with over 1,000 product lines designed to improve productivity, enhance workplace ergonomics, and support safer, more efficient operations. Through continuous innovation, engineering expertise, and a commitment to quality, Vestil serves warehouses, distribution centres, manufacturing facilities, and industrial workplaces across North America.
