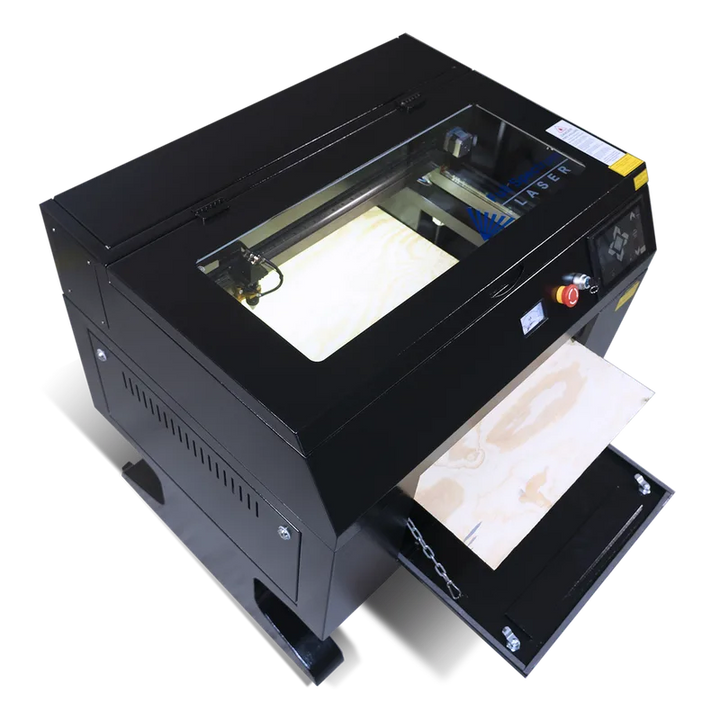

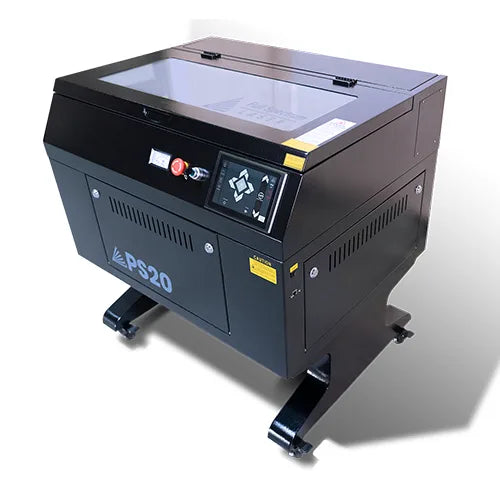

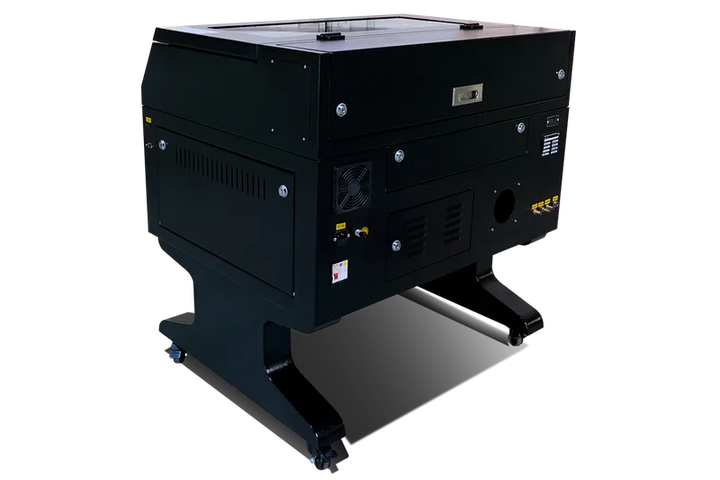

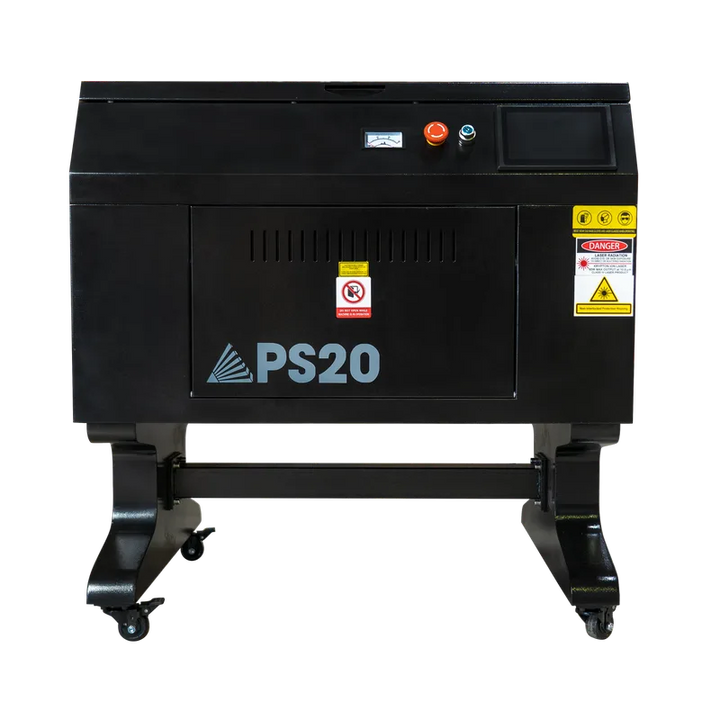

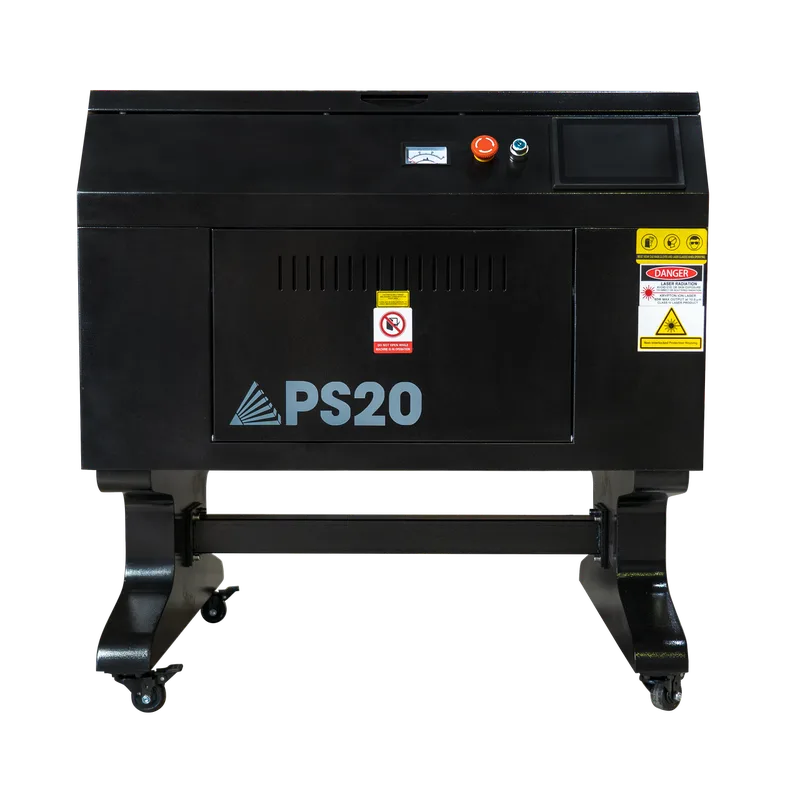

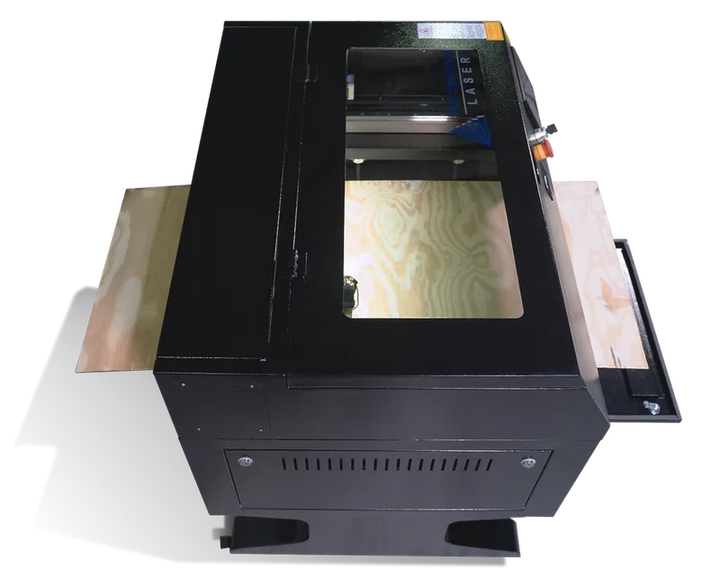

FSL PS20 P-Series Laser Cutting and Engraving System 20x12

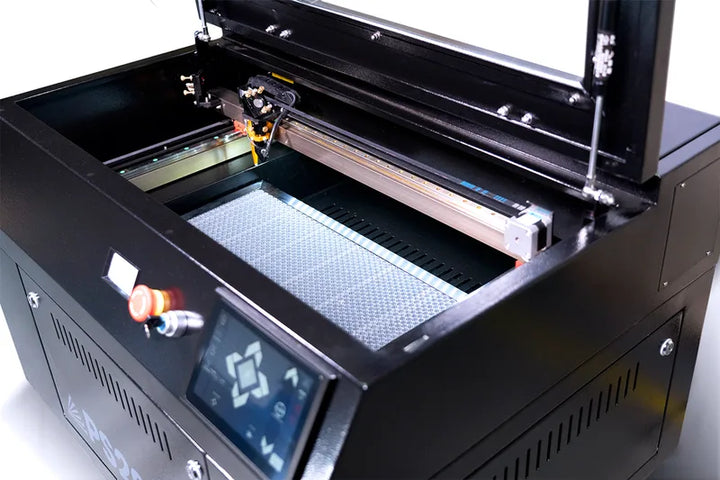

The FSL PS20 P-Series laser cutting and engraving system is a professional CO2 laser built for heavy use while still fitting through a standard doorway. It includes RetinaEngrave browser-based software, LCD touchscreen controls...
Selected options total: $0.00
P-Series pricing uses the approved 20% discount tier. Product variants should hold the real machine prices; the option configurator estimates add-ons.
Configuration
Configure PS20 for cooling, freight, and production add-ons.
This estimator follows the selected visible options. To charge add-ons at checkout, connect them as variants, add-on products, or a Shopify product-options app.
Professional Grade Laser Systems

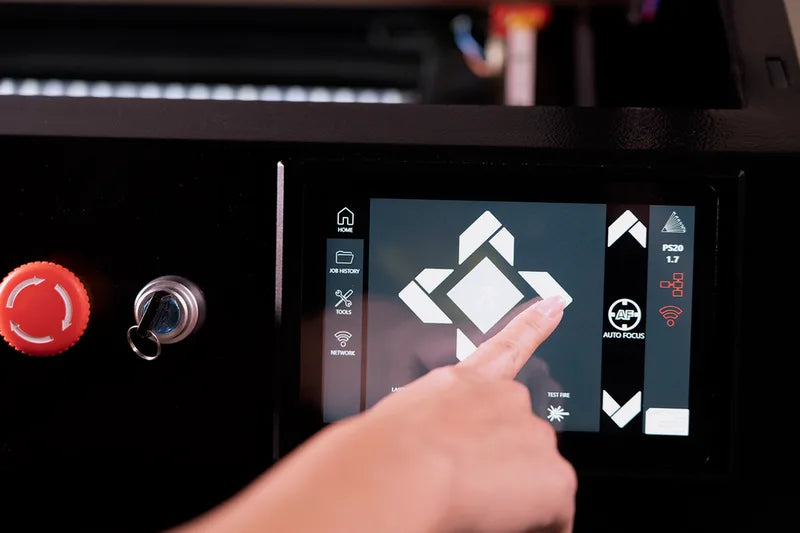

The next step in precision, power and performance. Designed for industry-scale production and heavy usage output. Now featuring LCD touchscreen controls and the powerful, easy-to-use RetinaEngrave v3.0 laser control software.
Newly advanced Professional Grade Laser Systems are now available from Full Spectrum Laser. Exclusive innovations include new, feature-packed LCD touchscreen controls and the powerful, easy-to-use RetinaEngrave v3.0 laser control software, highlighting a full design suite and compatibility with Mac, PC or Linux. The new era of professional grade laser systems has arrived!
Engraving Area: 20 x 12 in
Machine Dimensions: 37 x 27.5 x 35.375 in
Machine Weight: 198 lbs
Packaged Dimensions: 51 x 33 x 46 in
Packaged Weight: 425 lbs
Z-Table Range: 8 in
Laser Classification: Class 3R
Laser Type: Sealed CO2 Laser Tube
Laser Power: 45W standard; 75W upgrade
Focus Lens Included: 2.5 in
Power Supply: AC 110V native; 220V option available
Gross Power: < 1000W
Operation Modes: Precision Raster, Vector or Combined Modes
Motion Control: High-Speed Stepper Motors
Operating Temperature: 0C - 45C
| Material | Cuts | Engraves |
|---|---|---|
| Acrylic | Yes | Yes |
| Coated Metals | No | Yes |
| Fabric | Yes | Yes |
| Glass | No | Yes |
| Leather | Yes | Yes |
| Paper | Yes | Yes |
| Rubber | Yes | Yes |
| Stone | No | Yes |
| Wood | Yes | Yes |
RetinaEngrave v3.0
PC, Mac & Linux
Google Chrome recommended, Safari, Firefox, Edge
JPG, PNG, BMP, TIFF, SVG, DXF, DWG
1024 x 768 Pixels
802.11n
PS20 P-Series CO2 laser cutting and engraving system
RE3 Web Hosted Web Software included free
Supplier page lists industrial chiller, exhaust fan, air compressor, honeycomb table, knife edge table, and tool box as standard accessories.
Machine power is handled by Shopify variants. Cooling, fume handling, rotary, lenses, freight handling, insurance, warranty, and support should stay visible in the buying flow.

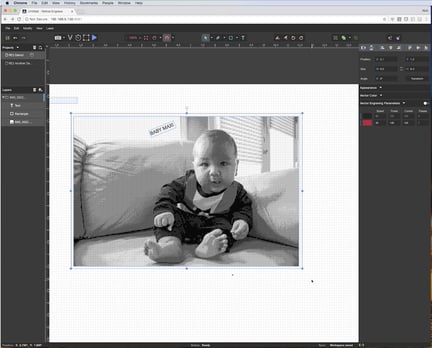

The Best Laser Control Software on the Market!
This powerful, browser-based software lives right on your laser and is accessed using your favorite browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.
Welcome to the future of laser control and design software!

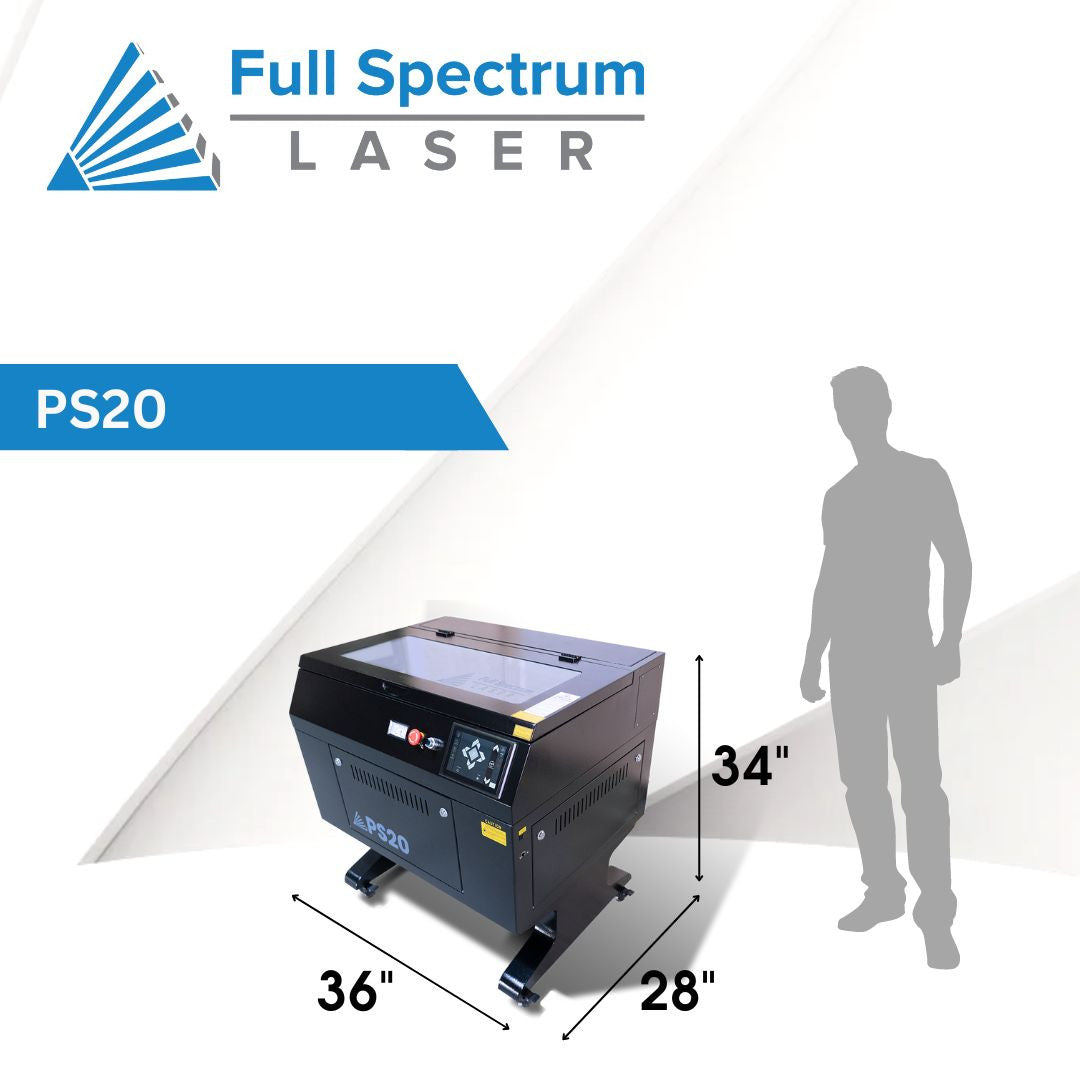

PS20 at a glance

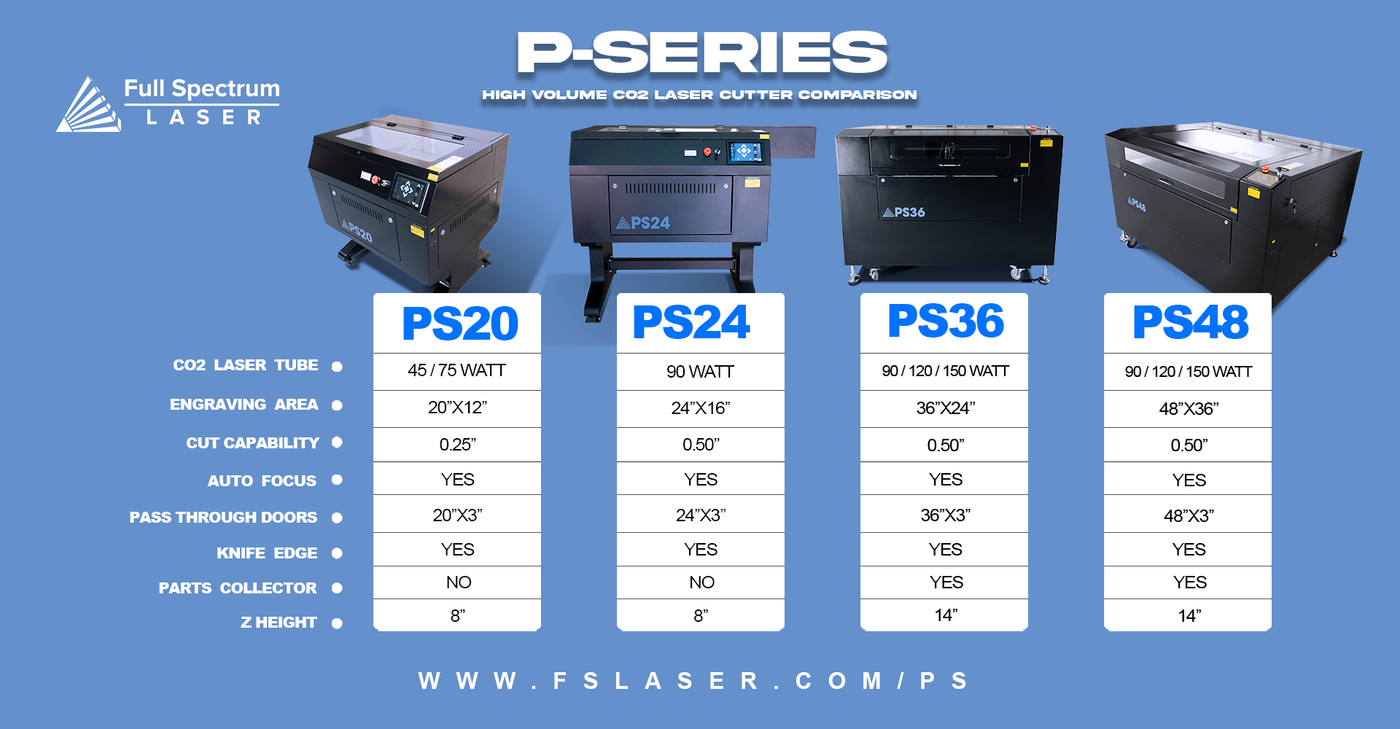

Four Models to Meet your Needs and Budget
Downloads
Accessories
All Full Spectrum Laser Systems come complete with all the accessories needed to run your first job as soon as the crate shows up to your location.
Standard Accessories
- Industrial Chiller
- Exhaust Fan
- Air Compressor
- Honeycomb Table
- Knife Edge Table
- Tool Box
