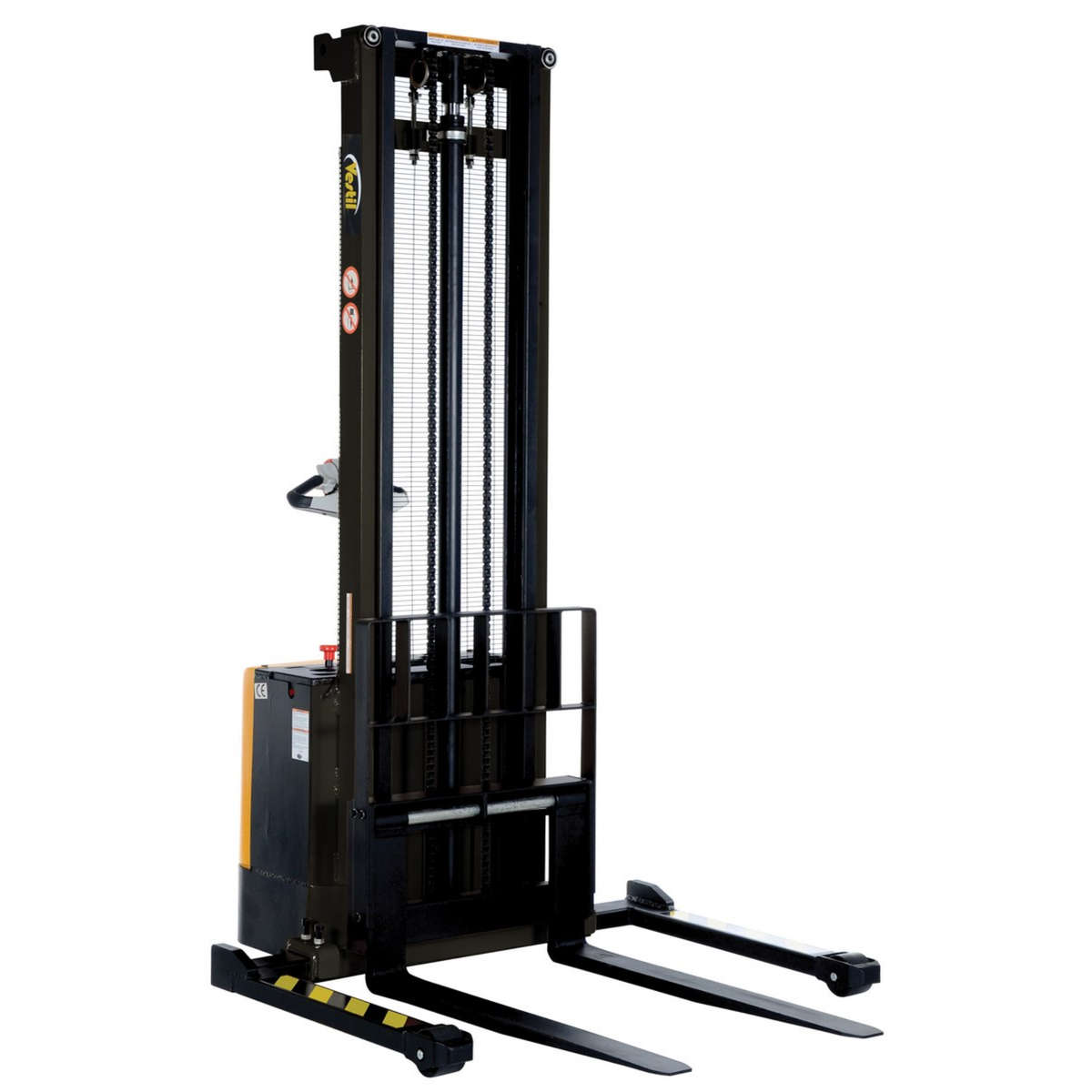

Vestil Double Mast Stackers with Powered Drive and Powered Lift Brand: Vestil
- Regular price
- $14,400.00
- Regular price
- $14,400.00
Vestil
Vestil Double Mast Stackers with Powered Drive and Powered Lift Brand: Vestil
- Regular price
- $14,400.00
Maximize Warehouse Productivity with the Vestil S-150-AA Powered Lift Stacker
The Vestil S-150-AA Powered Lift Stacker is a heavy-duty, fully powered electric stacker designed to streamline material handling operations in warehouses, distribution centers, manufacturing facilities, and industrial environments. Featuring both powered drive and powered lift functions, this high-performance stacker significantly reduces operator effort while increasing efficiency when transporting, lifting, and positioning palletized loads.
Built with a rugged steel frame and powered by a reliable 24V battery system, the S-150-AA delivers exceptional lifting performance with a maximum lift height of 150 inches and a load capacity of up to 2,000 lbs. Its high-torque drive and lift motors provide smooth operation under demanding workloads, making it ideal for daily material handling applications.
The ergonomic control handle offers intuitive operation with variable forward and reverse travel speeds, lift and lower controls, an integrated horn, and Vestil's advanced emergency reverse belly switch for enhanced workplace safety. Additional protection is provided by an automatic electromagnetic disc brake with dead-man functionality, helping operators maintain complete control during operation.
Designed for versatility, the adjustable forks and adjustable support legs accommodate a wide range of pallet sizes, while durable poly-on-steel wheels ensure smooth movement across warehouse floors. The integrated battery charger, battery level indicator, and deep-cycle battery system help maximize uptime and productivity throughout the workday.
Whether lifting, stacking, transporting, or positioning materials, the Vestil S-150-AA delivers dependable performance, enhanced operator safety, and exceptional operational efficiency.
Key Features
- Fully powered drive and powered lift operation for maximum productivity
- Heavy-duty steel construction for demanding industrial applications
- 2,000 lb maximum load capacity
- 150" maximum lifting height
- High-torque drive and lift motors for reliable performance
- Variable-speed forward and reverse travel controls
- Ergonomic multifunction control handle
- Emergency reverse belly switch enhances operator safety
- Electromagnetic disc brake with automatic dead-man feature
- Adjustable fork spacing accommodates various pallet sizes
- Adjustable support legs for increased application flexibility
- Integrated battery charger and battery level gauge
- Deep-cycle lead-acid battery system for extended runtime
- Smooth-rolling poly-on-steel drive, load, and stabilizer wheels
- Ideal for warehouses, manufacturing facilities, distribution centers, and industrial operations
Why Choose the Vestil S-150-AA Powered Lift Stacker?
The Vestil S-150-AA Powered Lift Stacker combines powerful lifting performance, operator safety, and efficient material handling in one robust solution. With a 2,000 lb capacity, 150-inch lift height, fully powered drive and lift functions, and adjustable forks for versatile load handling, it helps increase productivity while reducing operator fatigue. Built with heavy-duty steel construction, advanced safety features, and a dependable battery-powered system, this stacker is an excellent choice for warehouses, distribution centers, and industrial facilities seeking reliable day-to-day lifting and transport performance.
What's Included
- Vestil S-150-AA Powered Lift Stacker
- Integrated 24V Battery System
- Built-In Battery Charger
- Battery Level Indicator
- Adjustable Fork Assembly
- Operator Control Handle
- Owner's Documentation
Ideal Applications
- Warehouse Operations
- Distribution Centers
- Manufacturing Facilities
- Shipping & Receiving Departments
- Inventory Management
- Industrial Material Handling
- Pallet Transportation & Stacking
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Vestil |
| Model Number | S-150-AA |
| Product Type | Fully Powered Electric Lift Stacker |
| Capacity at 0"-62" Lift Height | 2,000 lbs |
| Capacity at 62"-118" Lift Height | 1,500 lbs |
| Capacity at 118"-137" Lift Height | 1,000 lbs |
| Capacity at 137"-150" Lift Height | 750 lbs |
| Maximum Lift Height | 150 in |
| Minimum Lift Height | 2.125 in |
| Service Range | 2-1/8" to 118" |
| Maximum Travel Distance | 147.875 in |
| Fork Length | 42.25 in |
| Fork Width | 4 in |
| Adjustable Fork Spacing (OD) | 8.375" - 26.75" |
| Adjustable Leg Spacing (OD) | 49.25" - 57.875" |
| Adjustable Forks | Yes |
| Adjustable Legs | Yes |
| Frame Material | Steel |
| Power Source | Battery Operated |
| Drive Motor | DC 24V / 0.7 kW |
| Lift Motor | DC 24V / 2.0 kW |
| Battery Configuration | (2) 12V / 95Ah |
| Battery Charger | DC 24V / 6 Amp |
| Battery Charger Included | Yes |
| Voltage | 24V |
| Horsepower | 2 HP |
| Continuous Runtime | 3 - 4 Hours |
| Intermittent Runtime | Up to 8 Hours |
| Travel Speed (Loaded) | 2.3 MPH |
| Travel Speed (Unloaded) | 2.5 MPH |
| Drive Wheels | (2) 9.875" x 3.125" |
| Front Wheels | (2) 4" x 2.9" |
| Stabilizer Wheels | (2) 3" x 1.4375" |
| Wheel Material | Poly-on-Steel |
| Overall Mast Height | 171.8125 in |
| Overall Width | 57.875 in |
| Overall Length | 68.875 in |
| Overall Height | 171.8125 in |
| Product Weight | 1,290 lbs |
| Shipping Weight | 1,548 lbs |
| Shipping Dimensions | 64"W × 78"D × 102"H |
| Color | Black / Yellow |
| Assembly Required | No (Fully Assembled) |
| Warranty | 1-Year Limited Parts Warranty |
| Wearable Parts Warranty | 90 Days |
| Country of Use | Industrial & Commercial Applications |
Warranty
- 1-Year Limited Parts Warranty
- 90-Day Warranty on Wearable Parts
- Coverage provided by Vestil Manufacturing
- Designed to support long-term reliability and performance
- Refer to the manufacturer's warranty documentation for complete terms and conditions.
