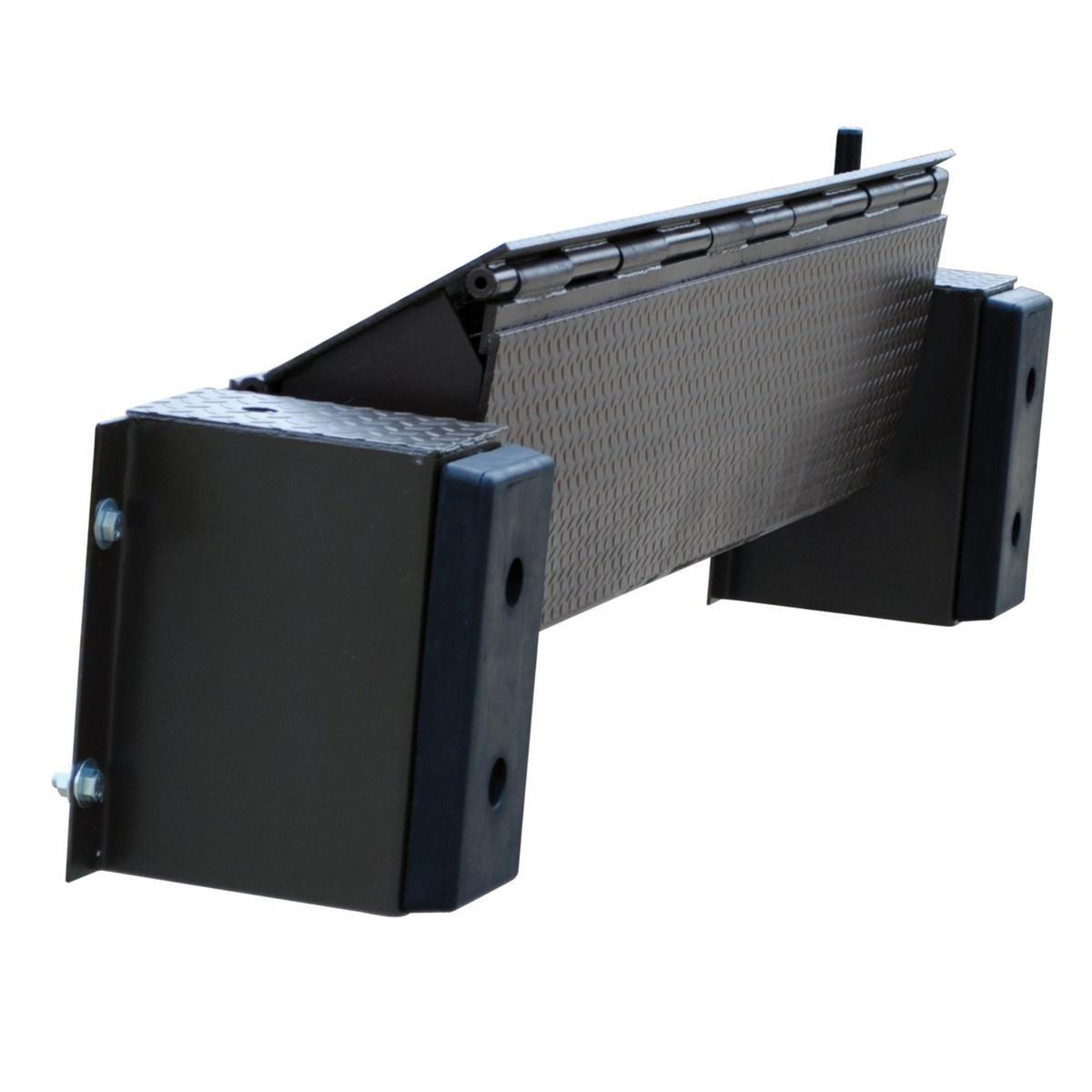

Vestil Edge-O-Dock Leveler 72" Wide 20,000 lb Capacity - FM-2072

SKU FM-2072
$1,500.00
$1,500.00

Vestil

Vestil Edge-O-Dock Leveler 72" Wide 20,000 lb Capacity - FM-2072

SKU FM-2072
$1,500.00
Vestil Edge-O-Dock Leveler 72" Wide 20,000 lb Capacity - FM-2072

,

The Vestil FM-2072 Mechanical Edge-O-Dock Leveler provides a dependable and cost-effective solution for bridging the gap between loading docks and trailers. Designed for facilities requiring a permanent dock-mounted loading solution, this rugged steel dock leveler delivers reliable performance for warehouses, distribution centers, manufacturing facilities, and shipping operations.

Engineered with a 20,000 lb uniform capacity and a 72-inch wide tread plate platform, the FM-2072 allows safe and efficient loading and unloading of materials while helping reduce equipment impact and operator fatigue. The durable steel construction withstands demanding industrial environments, while the non-slip tread plate surface enhances traction for forklifts, pallet jacks, and material handling equipment.

Unlike conventional pit-style dock levelers, the Edge-O-Dock design mounts directly to the face of the dock, eliminating the need for costly concrete recesses. The mechanical operation utilizes an actuation handle that allows operators to position the dock leveler quickly and safely. As the trailer departs, the lip automatically retracts behind the dock bumpers, ensuring convenient and reliable operation.

Supplied with dock bumpers, installation hardware, and instructions, the Vestil FM-2072 offers an efficient loading dock upgrade with minimal installation requirements and long-term durability.

Key Features

  • Heavy-Duty 20,000 lb Capacity - Designed to support demanding loading dock operations with a uniform load capacity of up to 20,000 pounds.
  • Permanent Dock-Mounted Design - Attaches directly to the dock face for a durable, space-saving loading solution.
  • Wide 72-Inch Platform - Provides ample loading surface for forklifts, pallet jacks, and material handling equipment.
  • Mechanical Actuation System - Simple handle-operated mechanism enables safe deployment and positioning.
  • Non-Slip Tread Plate Surface - Steel tread plate construction improves traction and enhances workplace safety.
  • No Concrete Pit Required - Eliminates the expense and complexity associated with recessed dock installations.
  • Automatic Lip Retraction - The dock lip automatically returns behind the bumper face when trailers depart.
  • Durable Steel Construction - Built for long-term reliability in industrial, warehouse, and logistics environments.
  • Complete Installation Package - Includes dock bumpers, installation hardware, and setup instructions.

What's Included

  • Vestil FM-2072 Mechanical Edge-O-Dock Leveler
  • Rubber Dock Bumpers
  • Installation Hardware
  • Installation Instructions
  • Manufacturer Warranty Documentation

Dimensions

Ideal Applications

  • Warehouses
  • Construction Projects
  • Trucking Companies
  • Distribution Centers
  • Manufacturing Facilities
  • Freight Terminals
  • Shipping & Receiving Docks
  • Industrial Loading Bays
  • Logistics Operations

Specifications

Specification Details
Manufacturer Vestil
Model Number FM-2072
Product Type Mechanical Edge-O-Dock Leveler
Operating Method Mechanical Actuation Handle
Installation Type Permanent Face-of-Dock Mount
Capacity 20,000 lbs
Material Steel
Platform Width 72 in
Platform Length (Ramping Length) 29 in
Platform Thickness 0.375 in
Service Range Above Dock 5 in
Service Range Below Dock 5 in
Lip Projection 14 in
Overall Width 99 in
Overall Depth 15 in
Overall Height 18 in
Overall Length 1.25 ft
Bumper Width 8 in
Bumper Thickness 2 in
Bumper Height 18 in
Bumper Projection 15 in
Color Finish Brown
Dock Height Recommendation Minimum 48 in Dock Height
Installation Hardware Included Yes
Assembly Required Yes
Assembled Weight 510 lbs
Shipping Weight 523 lbs
Shipping Dimensions 72"W × 14"D × 22"H
Warranty 1 Year Limited Parts Warranty
Wearable Parts Warranty 90 Days
Country of Manufacture USA
Prop 65 Warning Yes

Warranty

  • Manufacturer Warranty: 1 Year Limited Parts Warranty
  • Wearable Parts Warranty: 90 Days
  • Vestil warrants the FM-2072 against defects in materials and workmanship under normal operating conditions. Warranty coverage excludes normal wear items and misuse.

Downloads


Frequently Asked Questions

►What is the diameter of the FM-BAR used with Edge-O-Dock levelers?
The diameter of the FM-BAR is approximately 1-5/16".
►What are the electrical requirements for PE Edge-O-Dock Levelers operating on 115V?
The PE Edge-O-Dock Levelers operating on 115V require 12 amps.
►How many pump strokes are required to raise the PP-2072 to full height?
Approximately 25 pump strokes are required to raise the PP-2072 to full height.
►What is the overall length of the FM-BAR actuation handle?
The FM-BAR has an overall length of 41".
►Which approach ramps are compatible with Edge-O-Dock levelers?
Both the RAMP-2 and RAMP-4 approach ramps are compatible with Edge-O-Dock levelers.
►What is the steel thickness for FM/PE/PP 20,000 lb capacity models?
For FM, PE, and PP models with a 20,000 lb capacity, the lip, mid plate, and back plate are all constructed from 3/8" steel.
►What is the steel thickness for FM/PE/PP 25,000 lb capacity models?
For FM, PE, and PP models with a 25,000 lb capacity, the lip and mid plate are 1/2" thick, while the back plate is 3/8" thick.
►What is the steel thickness for FM/PE/PP 30,000 lb capacity models?
For FM, PE, and PP models with a 30,000 lb capacity, the lip, mid plate, and back plate are all constructed from 1/2" steel.
►What is the steel thickness on the FM-0648 model?
On the FM-0648 model, the lip, mid plate, and back plate are all constructed from 1/4" steel.
►Does the Edge-O-Dock leveler include a channel for anchoring into concrete?
The unit includes the actuation handle and dock bumpers. An optional Edge-O-Dock Leveler Curb Edge (CE) is available for installations requiring additional mounting support.
►Is the FM-BAR made from hollow or solid steel?
The FM-BAR is manufactured from hollow steel construction.
►What are the dimensions of the control box for the PE series?
The enclosure measures 8" x 10". Including the mounting tabs, the overall dimensions are 8" x 11-1/2".
