EMAX

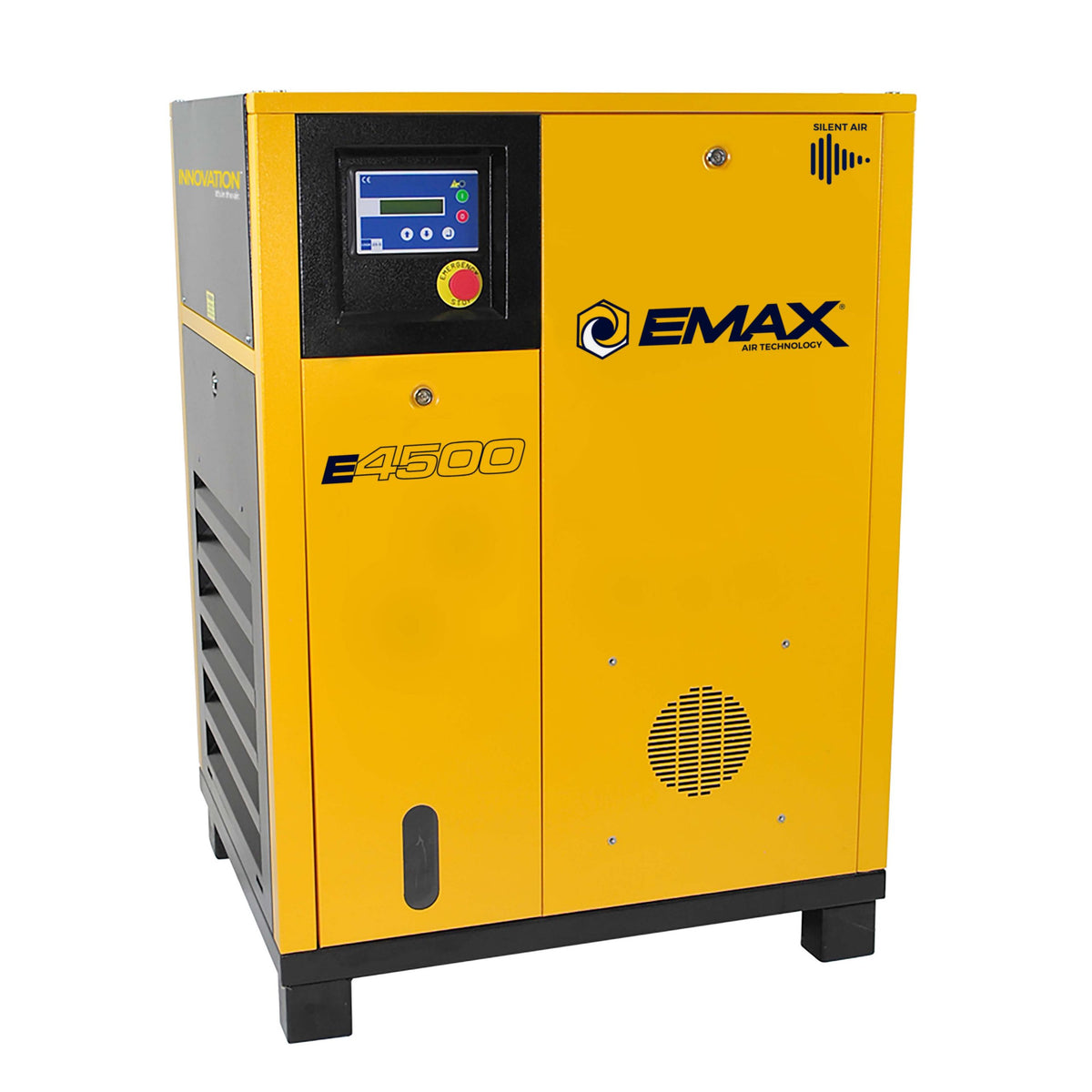

EMAX 15HP 3PH 460V 62CFM Energy Efficient Variable Speed Industrial Rotary Screw Compressor-Cabinet Only -100,000 HR pump life

SKU ERV0150003-460
$14,000.00
$14,000.00

EMAX

EMAX 15HP 3PH 460V 62CFM Energy Efficient Variable Speed Industrial Rotary Screw Compressor-Cabinet Only -100,000 HR pump life

SKU ERV0150003-460
$14,000.00
EMAX 15HP 3PH 460V 62CFM Energy Efficient Variable Speed Industrial Rotary Screw Compressor-Cabinet Only -100,000 HR pump life

The EMAX 15HP Variable Speed Industrial Rotary Screw Compressor (Model: ERV0150003-460) is built for manufacturing facilities, fabrication shops, and commercial operations requiring reliable compressed air on 460V 3-Phase power. This cabinet-only system delivers 62 CFM at 100 PSI with a maximum pressure of 145 PSI, providing consistent, pulse-free airflow for demanding applications.

Featuring an integrated Variable Speed Drive (VSD), the compressor automatically adjusts motor speed to match air demand, helping reduce energy consumption by up to 35%, lowering operating costs, minimizing component wear, and providing smooth soft-start operation.

Designed for 100% continuous duty, the rotary screw air end delivers dependable 24/7 performance without cooling periods or pressure fluctuations. The heavy-duty, powder-coated steel cabinet includes acoustic insulation for quiet operation between 62-65 dBA, while the precision-engineered air end is rated for an estimated 100,000-hour service life for long-term industrial reliability.

Why Choose the EMAX ERV0150003-460 Variable Speed Compressor?

  • Variable Speed Drive (VSD): Automatically adjusts motor speed to match air demand, reducing energy consumption by up to 35%.
  • 460V 3-Phase Design: Optimized for industrial power systems with lower running amps and improved electrical efficiency.
  • Soft-Start Technology: Eliminates high startup current to protect electrical components and reduce power surges.
  • 100,000-Hour Air End: Heavy-duty rotary screw air end engineered for exceptional durability and long service life.
  • Logik 9 Smart PLC: Digital controller with pressure adjustment, diagnostics, runtime monitoring, maintenance reminders, and scheduling.
  • Cabinet-Only Configuration: Easily integrates with existing air receivers, filtration systems, and plant piping.

Key Features

  • Air End Configuration: Premium Single-Stage, Lower-RPM Asymmetric Rotary Screw Air End with a 100,000-Hour Life Rating
  • Smart Electricals: Heavy-duty variable frequency inverter drive functions as an integrated soft-starter to eliminate amp surges
  • Acoustic Treatment: Heavy-duty steel cabinet panels lined with high-density acoustic sound foam insulation
  • Flow Control: German-engineered VMC high-flow inlet poppet valve minimizes internal friction to maximize flow efficiency
  • Cooling System: Integrated high-capacity oil/air radiator matrix cooler with an automated electric axial fan
  • Filtration Matrix: High-efficiency spin-on air/oil separator filter and automotive-grade fluid filters for simple maintenance access
  • Isolation Mounts: Built-in structural vibration isolation pads under the air end and motor assembly to prevent cabinet shaking

What's Included

  • 1 x EMAX 15HP Standalone Variable Speed Rotary Screw Compressor Cabinet Module
  • 1 x Logik 9 Smart PLC Microprocessor Control Panel
  • 1 x Factory-Integrated Sound Dampening Acoustic Enclosure
  • 1 x Pre-Installed Spin-On Air-Oil Separator Element
  • 1 x High-Efficiency Air Intake Filter Cartridge
  • 4 x Internal Heavy-Duty Vibration Isolation Mounts
  • 1 x Initial Factory Fill of Premium 8,000-Hour Synthetic Rotary Fluid
  • 1 x Operational User Manual & General Piping Layout Guide

Specifications

Specification Details
Brand EMAX
Horsepower (HP) 15 HP
Voltage (±10%) 460V
Phase 3 Phase
Drive Type Electric
Air Flow (CFM) 62 CFM
Silent Air No
Smart Air Yes
Compressor Type Rotary
Motor Type TEFC
Duty Cycle 100%
Belt Count 2
Pump Stage 1 Stage
Pump Riser No
Belt Tensioner No
Magnetic Starter No
Radiator No
Continuous Run No
Peak Starting Amps 118 A
Motor RPM 1,750 RPM
FLA + 1.15 Service Factor 20.7 A
Locked Rotor Amps 118 A
Recommended Breaker 25 A
Maximum Pressure 167 PSI
Oil Capacity 1.5 Gallons
Estimated Pump Life 100,000 Hours
Certifications UL / CSE
Service Kit SKIT003WB
Uncrated Weight 880 lbs
Uncrated Dimensions (L × W × H) 38" × 31" × 49"
Crated Dimensions (L × W × H) 55" × 58" × 55"

Downloads

Warranty

  • Manufacturer Warranty: 1-Year Standard Commercial Warranty. Upgradable to an extended multi-year coverage plan on the rotary air end with the verified use of genuine EMAX OEM rotary maintenance fluids and filter kits.

About EMAX Air Compressors

Engineered, built, and rigorously tested in the USA, EMAX Compressor represents the pinnacle of commercial-grade compressed air technology. By introducing true industrial rotary screw engineering, robust sound attenuation cabinetry, and high-efficiency continuous duty architectures to standard single-phase footprints, EMAX allows growing commercial enterprises to secure reliable, factory-grade pneumatic volume without heavy infrastructural utility upgrade expenses.
