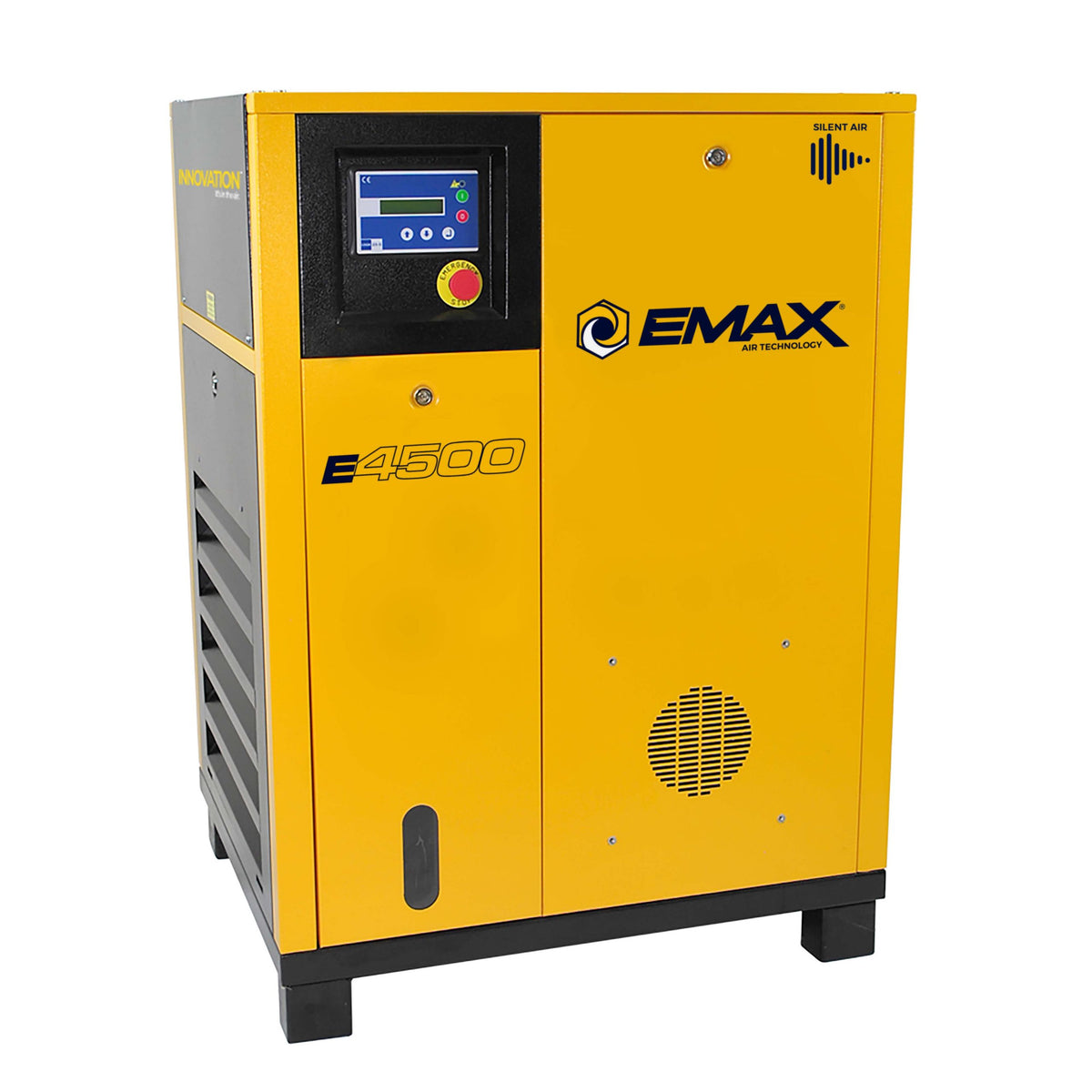

EMAX 20HP 3PH 460V 86CFM Energy Efficient Variable Speed Industrial Rotary Screw Compressor-Cabinet Only -100,000 HR pump life

The EMAX 20HP Variable Speed Industrial Rotary Screw Compressor (Model: ERV0200003-460) is engineered for manufacturing plants, fabrication facilities, and commercial operations requiring dependable compressed air on 460V 3-Phase power. This cabinet-only system delivers 85 CFM at 100 PSI with a maximum working pressure of 167 PSI, providing clean, pulse-free airflow for demanding industrial applications.

Unlike conventional reciprocating compressors, the rotary screw air end operates on a 100% continuous duty cycle, supplying reliable compressed air around the clock without cooling periods or pressure fluctuations.

Its integrated Variable Speed Drive (VSD) continuously monitors air demand and automatically adjusts motor speed to match system requirements. By producing only the airflow required, the compressor can reduce energy consumption by up to 35%, lower operating costs, minimize component wear, and eliminate high inrush starting currents. The 460V configuration also reduces running amperage, helping improve electrical efficiency in industrial facilities.

The heavy-duty powder-coated steel cabinet features integrated acoustic insulation for quiet operation between 62-65 dBA, allowing installation closer to production areas. The precision-engineered rotary screw air end is designed for an estimated 100,000-hour service life, delivering dependable long-term performance in demanding environments.

Why Choose the EMAX ERV0200003-460 Variable Speed Compressor?

• Variable Speed Drive automatically matches motor speed to air demand, reducing energy consumption by up to 35%
• Designed specifically for 460V 3-Phase industrial electrical systems
• Soft-start technology minimizes inrush current and protects electrical components
• Heavy-duty rotary screw air end rated for an estimated 100,000-hour operating life
• Integrated Logik 9 Smart PLC controller with diagnostics, pressure adjustment, runtime monitoring, scheduling, and maintenance reminders
• Cabinet-only design easily integrates with existing air receivers, filtration equipment, and compressed air systems

Key Features

• Premium single-stage rotary screw air end
• Variable frequency drive with integrated soft-start technology
• Powder-coated acoustic steel enclosure
• High-flow VMC inlet valve for improved airflow efficiency
• Integrated oil and air cooling system with electric cooling fan
• Spin-on air/oil separator and service-friendly filters
• Internal vibration isolation mounts for smoother operation
• Designed for continuous industrial-duty use

What's Included

• EMAX 20HP Variable Speed Rotary Screw Compressor Cabinet
• Logik 9 Smart PLC Control Panel
• Factory-installed acoustic enclosure
• Spin-on air/oil separator
• High-efficiency intake air filter
• Internal vibration isolation mounts
• Premium synthetic rotary compressor fluid
• User manual

Ideal Applications

• Manufacturing and production facilities
• CNC machining centres
• Automotive repair and collision workshops
• Sandblasting and industrial coating operations
• Packaging and automated production lines
• General industrial pneumatic equipment

Specifications

Downloads

• EMAX Rotary Screw Manual

Warranty

• Manufacturer Warranty: 1-Year Standard Commercial Warranty. Extended multi-year coverage is available for the rotary air end when genuine EMAX OEM rotary maintenance fluids and filter kits are used.
