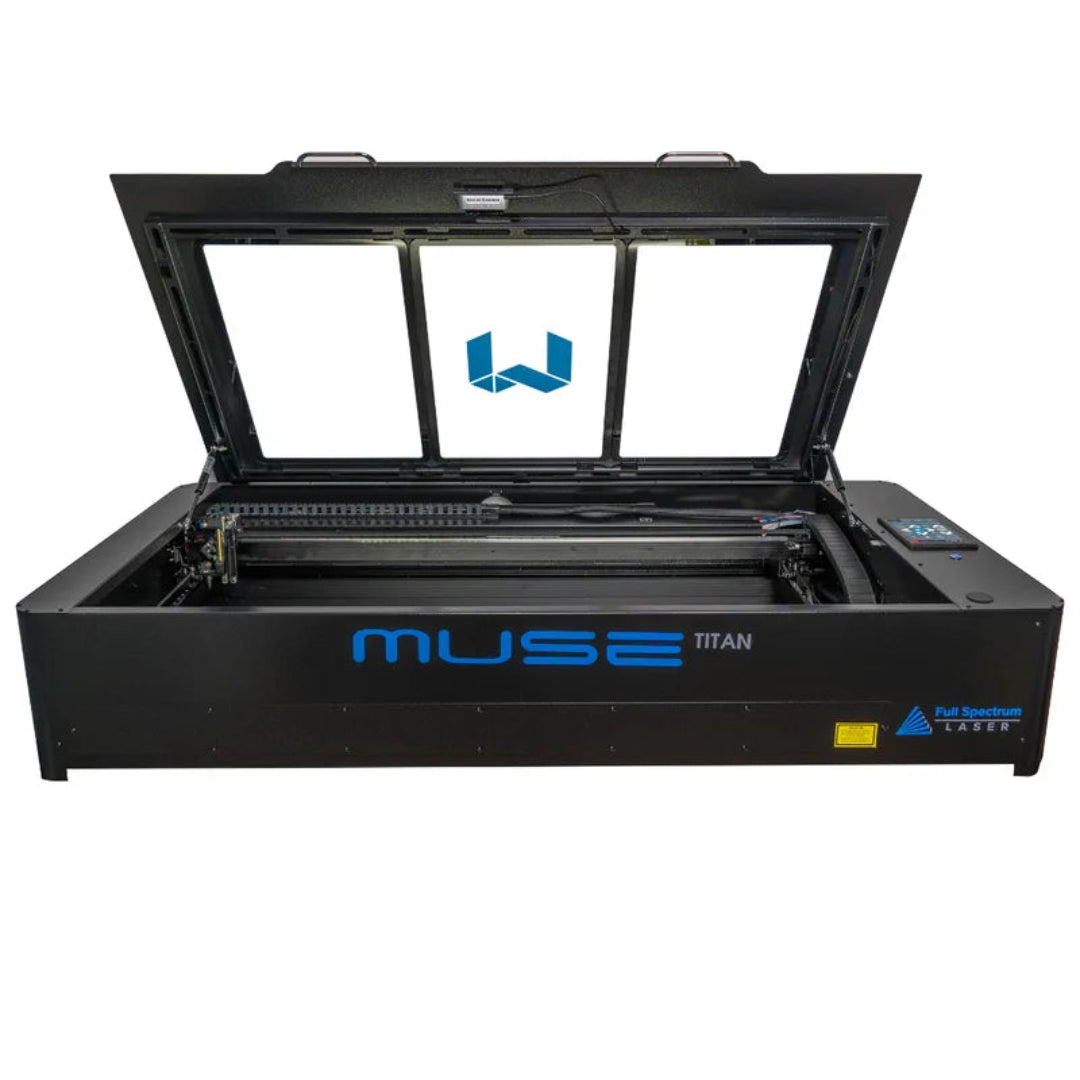

FSL Muse Titan v3 48x24 CO2 Laser with AI 3D Camera

Full Spectrum Laser

FSL Muse Titan Desktop CO2 Laser

A larger Muse desktop CO2 system with 48 x 24 workspace, 75W/90W/100W power options, AI 3D camera workflow, removable floor, and freight-oriented configuration choices.

$3,500.00

Selected options total: $0.00

48 x 24 workspace 75W / 90W / 100W AI 3D camera Freight delivery

Approved Muse tier pricing: 75W $3,500.00; 90W $3,990.00; 100W $5,180.00. Free shipping has been removed from laser systems.

Configuration

Configure Muse Titan for power, cooling, freight, and production add-ons.

Tube Type

Select the Titan tube power. Higher wattage increases cutting capability and processing speed.

Warranty

Select the warranty coverage for the Titan system.

Water Cooling Options

Select the water cooling setup for higher-powered Titan operation.

Air Assist (Recommended, used for cutting)

Air assist is recommended for cutting workflows.

Fumes/Air Handling Equipment (Recommended for cutting)

Fume and air handling options for safer indoor setup and cutting workflows.

Extra Lenses

Optional focus lenses for different focal lengths and workflows.

Camera Option (Recommended)

Optional AI 3D camera upgrade for Titan alignment and positioning workflows.

Honeycomb Table

Honeycomb table bundle included with the Titan package.

Software

Included RetinaEngrave software from the supplier page.

Rotary

Optional rotary attachments for cylindrical engraving.

Shipping Insurance (recommended)

Recommended freight shipment protection.

Truck Lift Gate Required For Delivery (No Forklift)

Required delivery service when no forklift is available.

Address Type

Select delivery address type for freight delivery.

Premium Support

Optional premium personal support and training package.

Estimated configured price $3,500.00

This updates the displayed price as options are selected. To charge add-ons at checkout, connect these selections to Shopify variants, add-on products, or a product-options app.

Muse Desktop CO2

The large-format Muse desktop CO2 machine.

Muse Titan needs a richer template than smaller accessories because its supplier page includes higher-wattage tube choices, AI 3D camera, cooling, air assist, fume handling, lenses, rotary, honeycomb table, freight delivery, shipping insurance, and support configuration.

Large 48 x 24 workspace

Titan gives users much more work area than the smaller Muse desktop systems.

Higher wattage options

75W, 90W, and 100W choices support faster processing and thicker material capability.

Removable floor and pass-through

Large-format workflows benefit from material pass-through and flexible positioning.

Freight-ready setup

Delivery, liftgate, address type, and insurance details should be shown clearly.

CO2 laser applications

Inspire. Design. Create.

Muse is the desktop CO2 laser platform built for original art, school labs, workshop projects, and small business production. Pair the machine with approved accessories, training, software, and resources so buyers can understand the full workflow before purchasing.

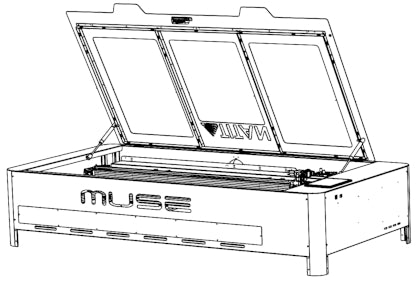

Muse Core and Muse 3D desktop laser size reference
Weight & Dimensions

Workspace Area: 48" x 24"

Machine Dimensions: 66" x 33" x 14"

Weight: 176 lbs

Z-Table Range: 3.5" (89mm)

Laser

Laser Classification: Class 3R

Laser Type: CO2

Laser Power: 75W/90W/100W

Focus Lens Included: 2.0 Inch

Power

Power Supply: AC 110v native (220V option available)

Gross Power: < 1000W

System

Operation Modes: Precision Engraving, Cutting, or a Combination

Material Cuts Engraves
Acrylic✓✓
Coated Metals×✓
Fabric✓✓
Glass×✓
Leather✓✓
Paper✓✓
Rubber✓✓
Stone×✓
Wood✓✓
Software

RetinaEngrave v3.0

Nothing to download, runs in your browser

Compatibility

PC, Mac & Linux

Browser Compatibility

Google Chrome (recommended), Safari, Firefox, Edge

File Import Options

PDF, JPG, PNG, BMP, TIFF, SVG, DXF, DWG,

Works with Any Program that can Print in Windows or Mac or Linux

Minimum Screen Resolution

1024 x 768 Pixels

Wireless Compatibility

802.11n

Included

3-Piece Honeycomb Table

Video

Muse: Desktop Laser System

Watch the approved product video, then continue through features, software, accessories, applications, and resources.

At a glance

Muse Titan at a glance.

SKU MUSETITAN-75W-V3 / 90W / 100W
Laser power 75W standard; 90W and 100W upgrades
Work area 48 x 24 in
Packaged dimensions 69 x 40 x 45 in
Packaged weight 310 lbs
Delivery note Laser systems no longer include free shipping

Add-ons

Recommended accessories and setup items.

Rotary

Friction Rotary for Muse Titan

$1,200.00 at 20% discount

Camera

AI Scan 3D Camera for Muse Titan

$1,200.00 at 20% discount

Tube

75W Laser Tube

$1,000.00 at 20% discount

Support

2 Year Extended Warranty Titan

$480.00 at 20% discount

Muse family

Three Muse CO2 models to meet your needs.

Muse Core

Compact 20 x 12 Muse desktop CO2 model.

Muse 3D

20 x 12 Muse with camera and autofocus workflow.

Muse Titan

Largest Muse desktop CO2 model with 48 x 24 workspace.

The Best Laser Control Software on the Market!

RetinaEngrave v3.0 lives on the laser and is accessed through a browser, so users can control jobs without installing traditional software.

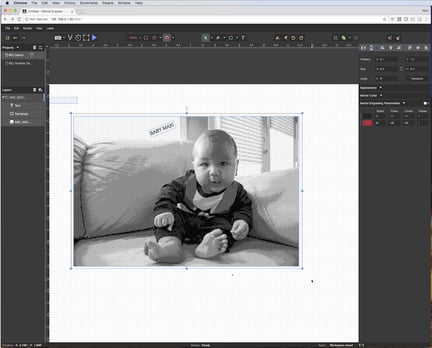

RetinaEngrave software screen

Muse Desktop Laser at a glance

Muse desktop laser at a glance
Muse accessories

The Perfect Accessories

Upgrade cooling for peak laser performance, add rotary engraving for rounded objects, increase tube power to accelerate cutting speed, and expand the machine with fume extractors, focus lenses, and support resources.

-Applications-

CO2 laser material applications

Three Muse CO2 Models to Meet your Needs

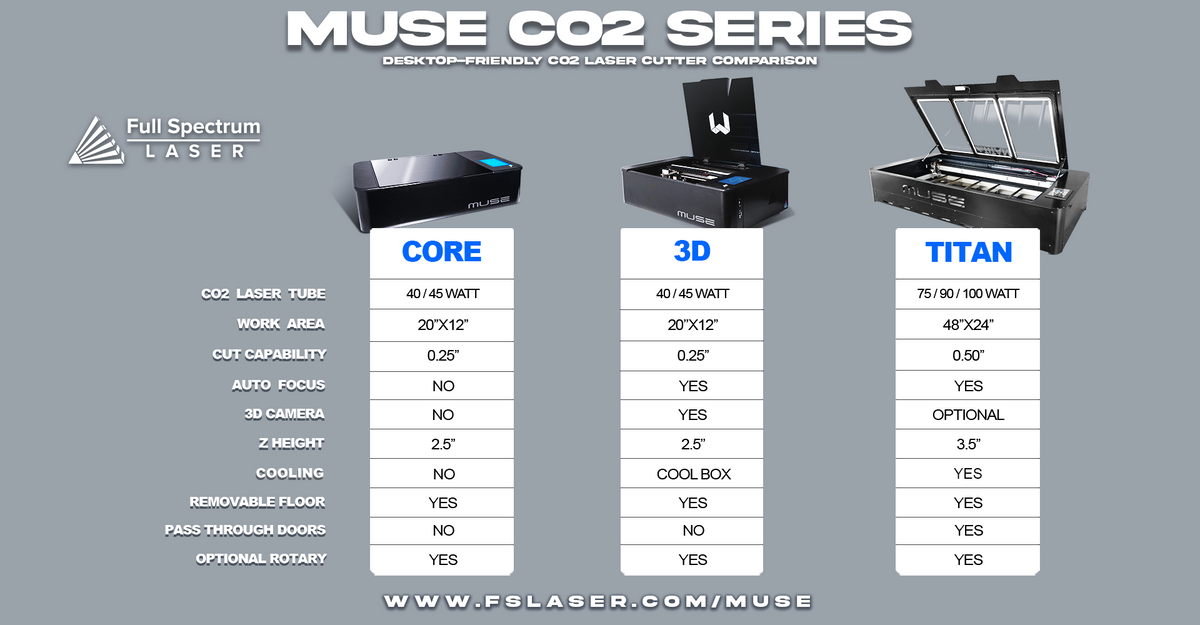

Muse CO2 model comparison

Resources

Videos, blogs, manuals, and support links.

Manual FSL Muse Titan v3 48x24 CO2 Laser with AI 3D Camera manual

Download the product manual uploaded in Shopify files.

 Supplier page FSL Muse Titan reference

Use as reference for options, freight details, specs, and resources.
Manual Muse Titan manual

Upload the manual PDF in Shopify Content > Files, then paste the file URL into this resource card.
