1

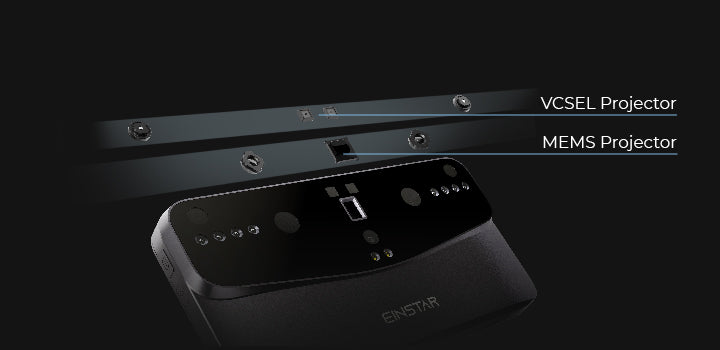

Two scanners in one
Fast Mode covers medium to large objects, while HD Mode captures smaller objects with closer working distance.

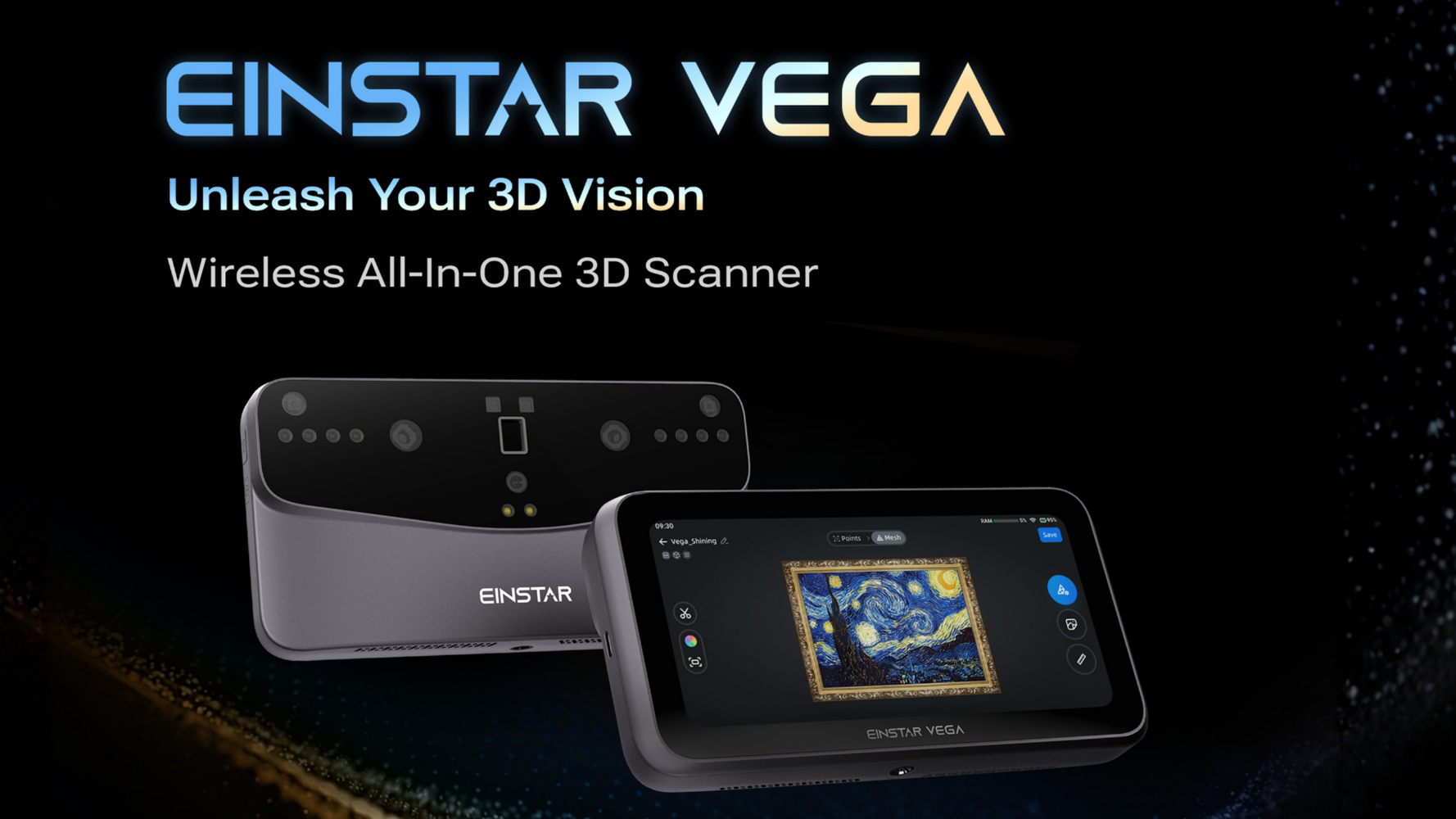

EINSTAR VEGA
Wireless All-In-One 3D Scanner
Standalone 3D scanning with mobile computing, flexible scan modes, wireless sharing, and lifelike color capture.
$1,999.00
Wireless all-in-one
48MP RGB camera
6.4-inch 2K AMOLED
535g lightweight body
View specs
Scanning performance
High-capacity scanning performance.
Built for fast capture and smooth handheld scanning workflows.
Smart 3D Scanning Terminal
Built for scanning, processing, and sharing without a PC.
1
2
Strong lighting adaptability
Designed to work across bright sunlight and dark environments, giving users more freedom on location.
3

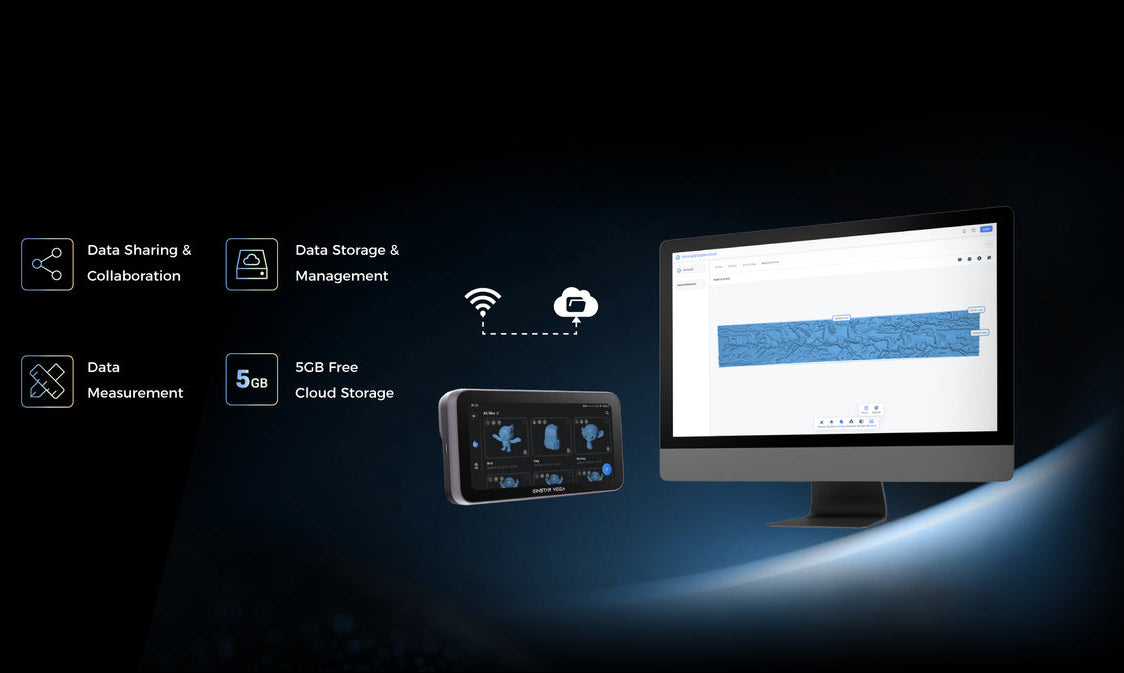

Wireless scanning solution
Wi-Fi workflow, wireless sharing, and screen casting help teams review and move scan data faster.
4
Pro-level scan assists
Marker alignment, scanning rewind, auto base-plane detection, and multiple alignment modes improve scan quality.

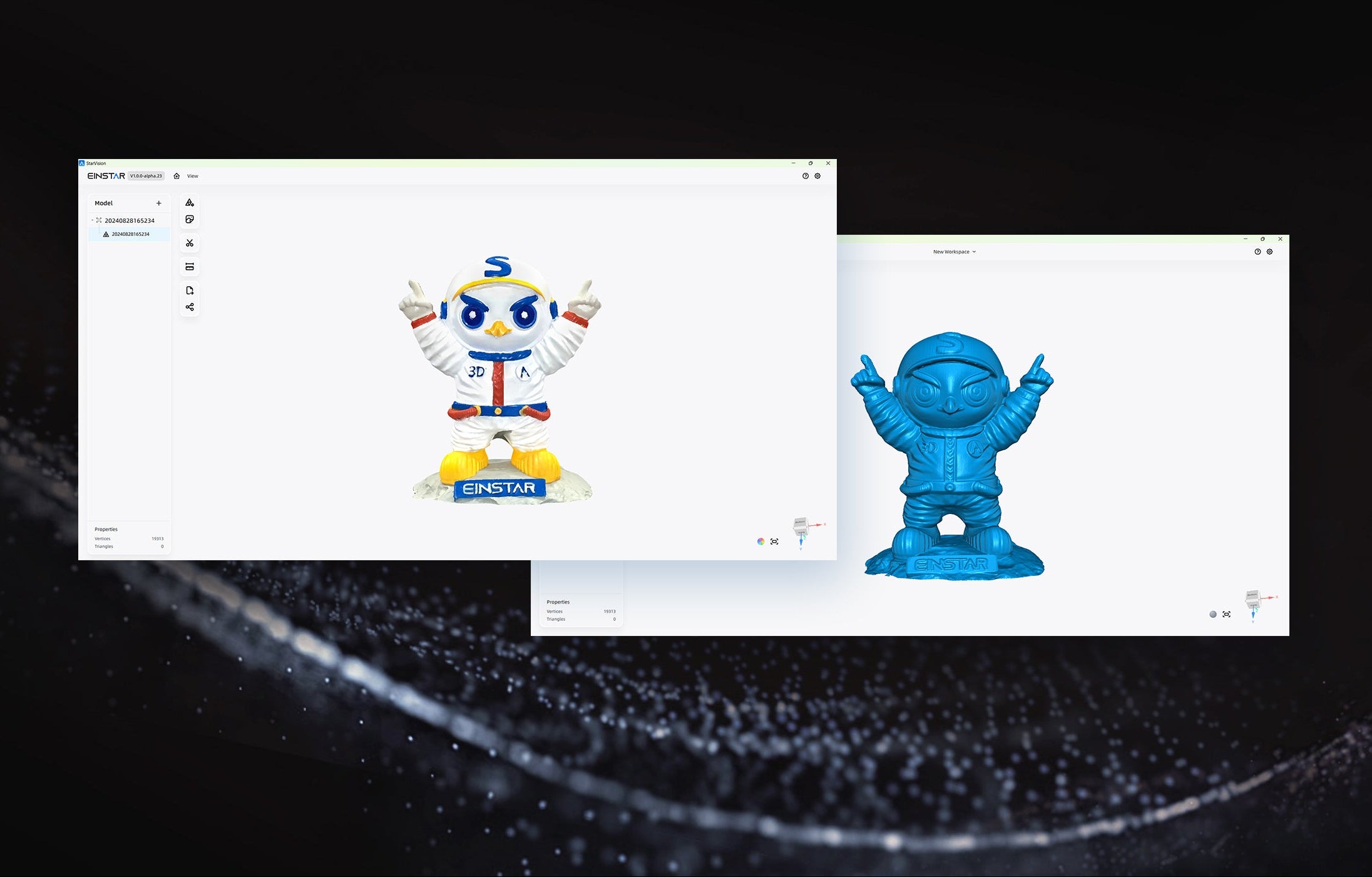

Coverage from small to large objects
Switch scan modes to match the job.
EINSTAR VEGA combines portable hardware with flexible scanning coverage, making it useful for digital art, reverse engineering, education, heritage, AR/VR, and 3D printing workflows.
EINSTAR VEGA
3D data gallery
Explore a 3D scan captured for real-world detail.
Motorcycle by SHINING 3D on Sketchfab
Included
What's in the box
- Scanner
- Carrying case
- Calibration board
- Holder
- Power adapter
- Cable
- Wrist strap ring screw
- 3mm and 6mm markers
Product essentials
EINSTAR VEGA at a glance.
Scan Mode
HD Mode; Fast Mode
Light Source
HD Mode: Infrared MEMS; Fast Mode: Infrared VCSEL
Point Distance
HD Mode: 0.05mm to 3mm; Fast Mode: 0.5mm to 10mm
Capture Frame
HD Mode: up to 15 fps; Fast Mode: up to 20 fps
Working Distance
HD Mode: 100-350mm; Fast Mode: 270-1500mm
IR Camera Resolution
HD Mode: 2MP; Fast Mode: 1.3MP
Align Mode
Feature; Texture; Markers; Hybrid
Color Camera Resolution
48 MP
Output Formats
PLY; STL; OBJ; ASC
Outdoor Scan
Yes
Scanner Body Weight
Limited edition: 643g; Regular edition: 535g
Scanner Size
180mm x 95mm x 26.5mm (L x W x H)
CPU
8-core CPU, 2.4GHz
RAM
32 GB LPDDR4 Memory
Internal Hard Drive
32GB eMMC + 512GB SSD
Power Charger
65W fast charging, supports PD/PPS protocols
Interface
Wi-Fi 6, USB Type C
Touchscreen
6.4-inch 2K OLED
Supplemental Light
10
IMU
6 DoF
Operating Temperature Range
-10 to 40 C
Operating Humidity Range
0 to 90% RH (non-condensing)
Packing Size
380 x 305 x 155mm
Protection Grade
IP50
Battery
Built-in 5000mAh; external power bank charging supported
Supported OS
No computer required for 3D scanning operation; StarVision on PC: Windows 10/11 64-bit and macOS
Recommended PC Configuration
Intel i7, 32 GB RAM; macOS 11.0 on Apple chip
Resources
Downloads
Proof
Our Expertise, Your Advantage
20
years experience
400+
authorized patents
200K+
3D scanners sold worldwide
For anyone regularly working with 3D modeling or manufacturing, the EINSTAR VEGA is a game-changer. Its affordability and performance make it a compelling option, especially for hobbyists and small business owners. Whether it's being used to create custom designs or streamline workflows, this scanner truly lives up to its promise of making 3D scanning accessible for everyone.
Ding Dong Drift Influencer in car space with 3D printing, composites, and fabricationSupport
Frequently asked questions
Do I need any PC connection to use?
You can perform post-processing directly on the VEGA. However, for more detailed processing from 0.05 to 0.1 mm, you might need to use a computer.
How long does it work by its battery?
The continuous working time is 1.5 to 2 hours. You can also connect it to a power bank for extended use.
What is the working ambient temperature range?
The working temperature range is -10°C to 40°C.
What You Can Achieve with Our Scanners
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
Automotive
EINSTAR VEGA's all-in-one wireless design makes it highly versatile for automotive applications, allowing for easy scanning in a variety of environments without limitations. Its high frame rate, larger FOV, and superior algorithms enable smooth scanning of both small and large parts, making it ideal for diverse, on-the-go automotive tasks.
Cultural Creation & Art Customization
EINSTAR VEGA is ideal for cultural creation and art customization, offering strong outdoor scanning capabilities with its wireless all-in-one design and VCSEL projector. It captures 0.05mm resolution fine details and 48MP vibrant textures effortlessly, making it useful for on-location projects and detailed digital art preservation.
Research & Education
EINSTAR VEGA is an excellent tool for research and education, offering ease of use with its wireless design and intuitive scanning process. It supports wireless screen casting and cloud sharing, allowing for seamless collaboration and data access across indoor and outdoor projects.
