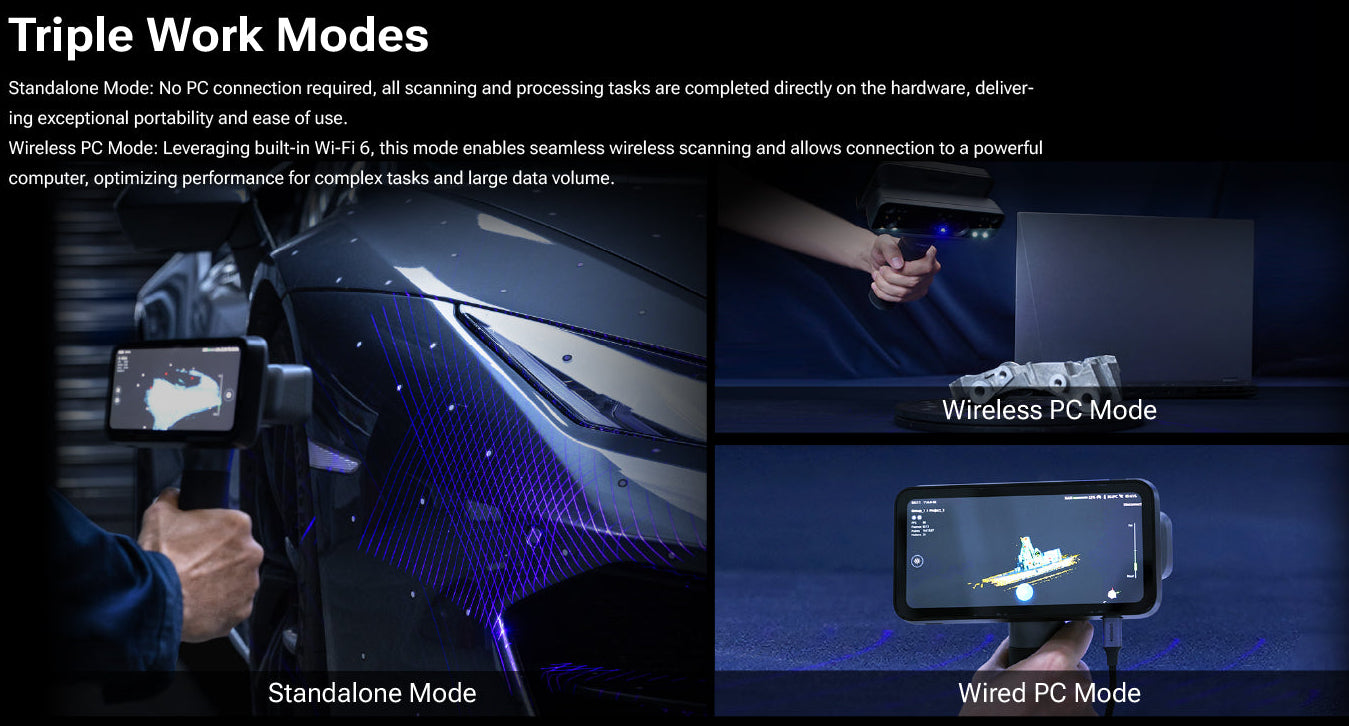

Triple work modes
Standalone, wireless PC, and wired PC modes let users scan directly on the device or connect to a PC when extra computing power is needed.

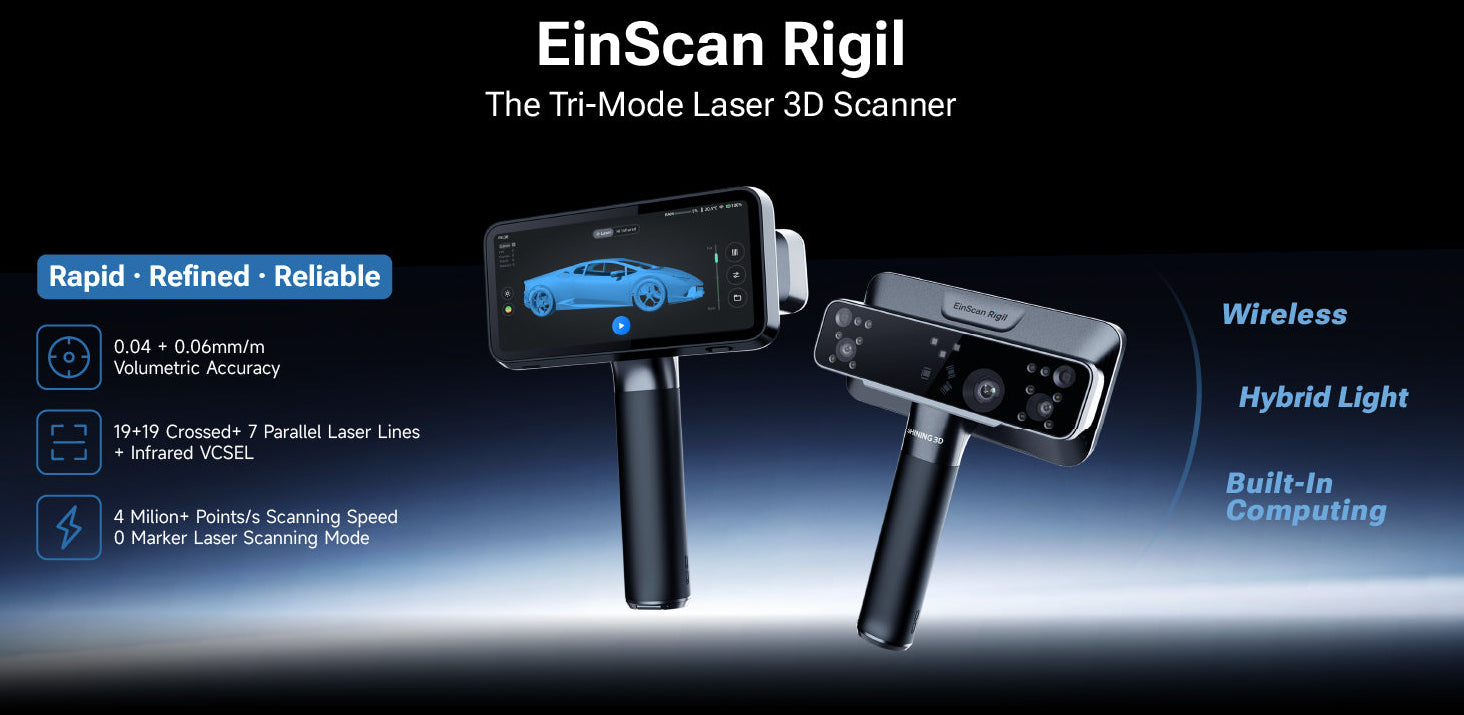

EinScan Rigil
The Tri-Mode Laser 3D Scanner
A professional all-in-one laser 3D scanner with standalone, wireless PC, and wired PC workflows, hybrid light sources, built-in computing, and high-accuracy automotive-ready performance.
$4,999.00
Tri-mode laser 3D scanner
0.04 + 0.06 mm/m accuracy
4M+ points/s scanning speed
5MP full-color texture
View specs
Rapid, refined, reliable
Professional wireless laser scanning without the heavy setup.
EinScan Rigil brings Laser HD scanning, IR Rapid scanning, built-in computing, wireless workflow, and professional software support into one scanner for demanding 3D modeling tasks.

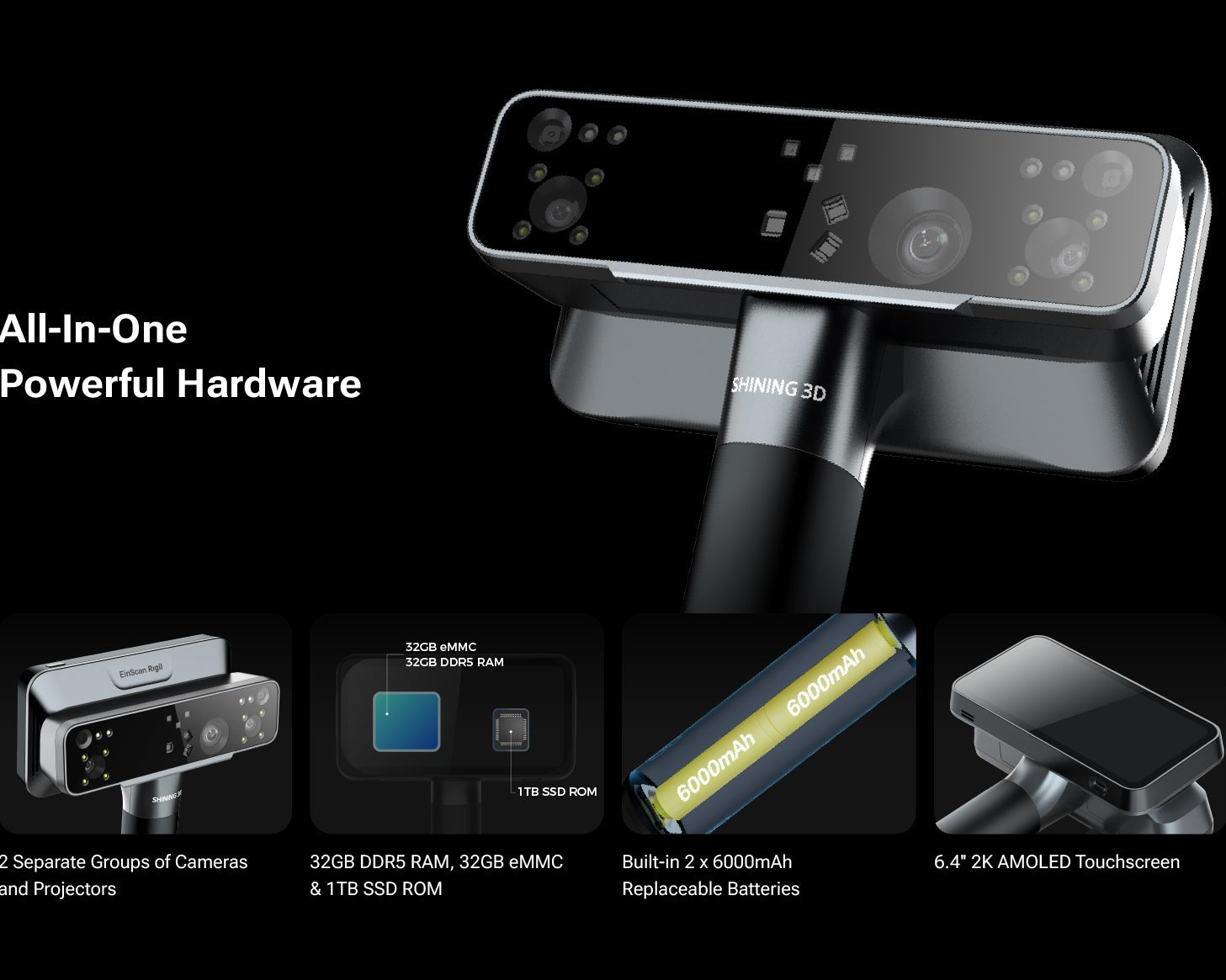

All-in-one powerful hardware
Built for serious scanning, processing, and on-site review.
1
2
Metrology-grade accuracy
Laser HD mode reaches volumetric accuracy up to 0.04 + 0.06 mm/m, helping automotive, design, and engineering users capture reliable geometry.
3
Dark and reflective materials
Rigil is designed to scan challenging dark and reflective metal surfaces without spray, making it well suited for automotive aftermarket work.
4

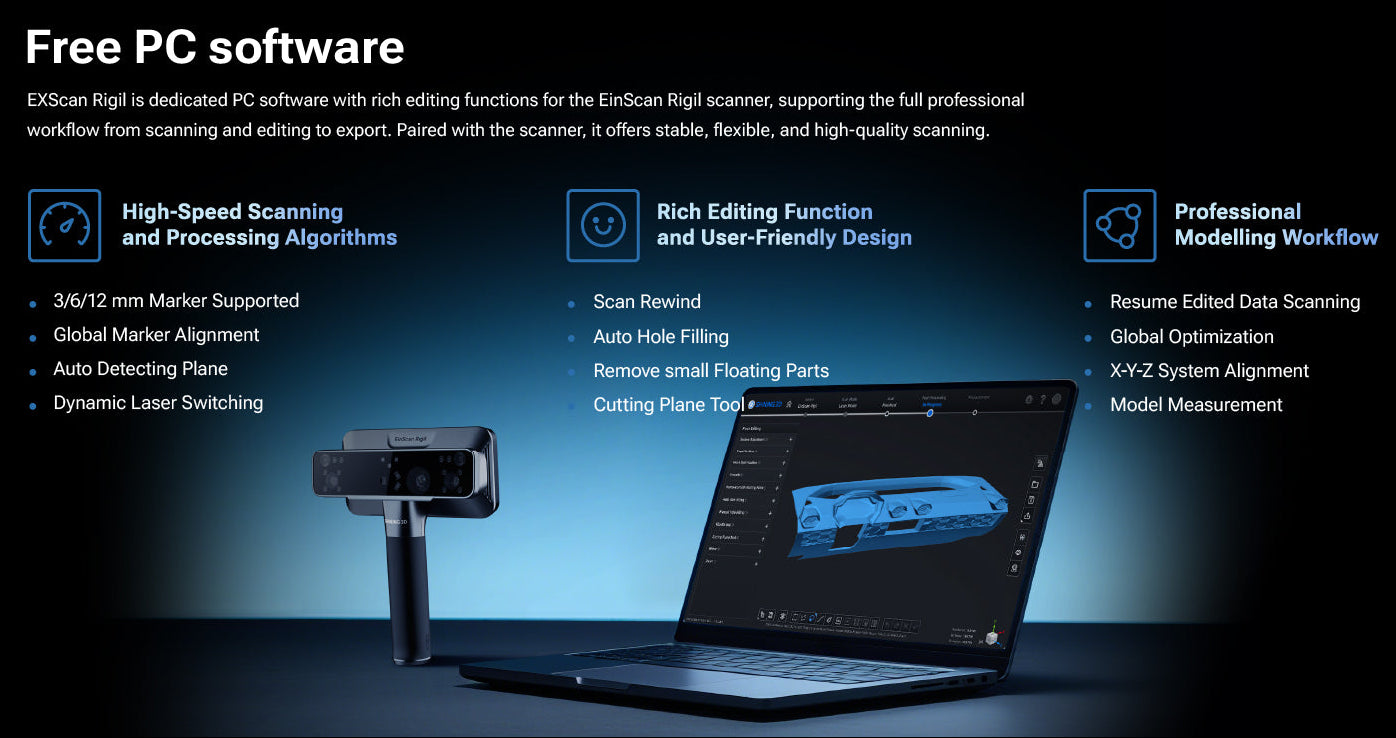

Professional EXScan Rigil workflow
Dedicated PC software supports scanning, editing, export, scan rewind, plane tools, optimization, alignment, and model measurement.

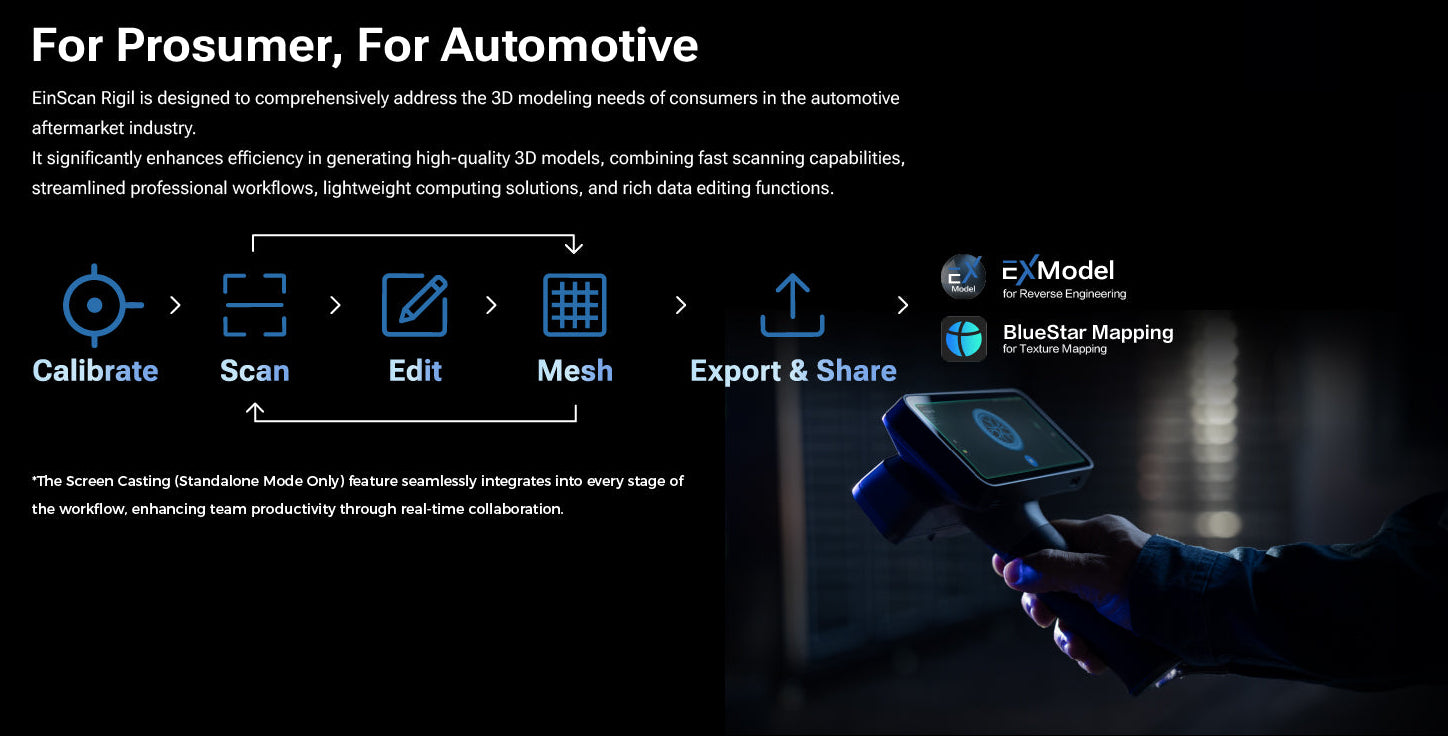

For prosumer, for automotive
Capture, edit, mesh, align, export, and share.
Rigil is made for professional consumers and automotive aftermarket workflows where speed, accuracy, flexible tracking, and rich data editing matter.
EINSTAR VEGA
Included

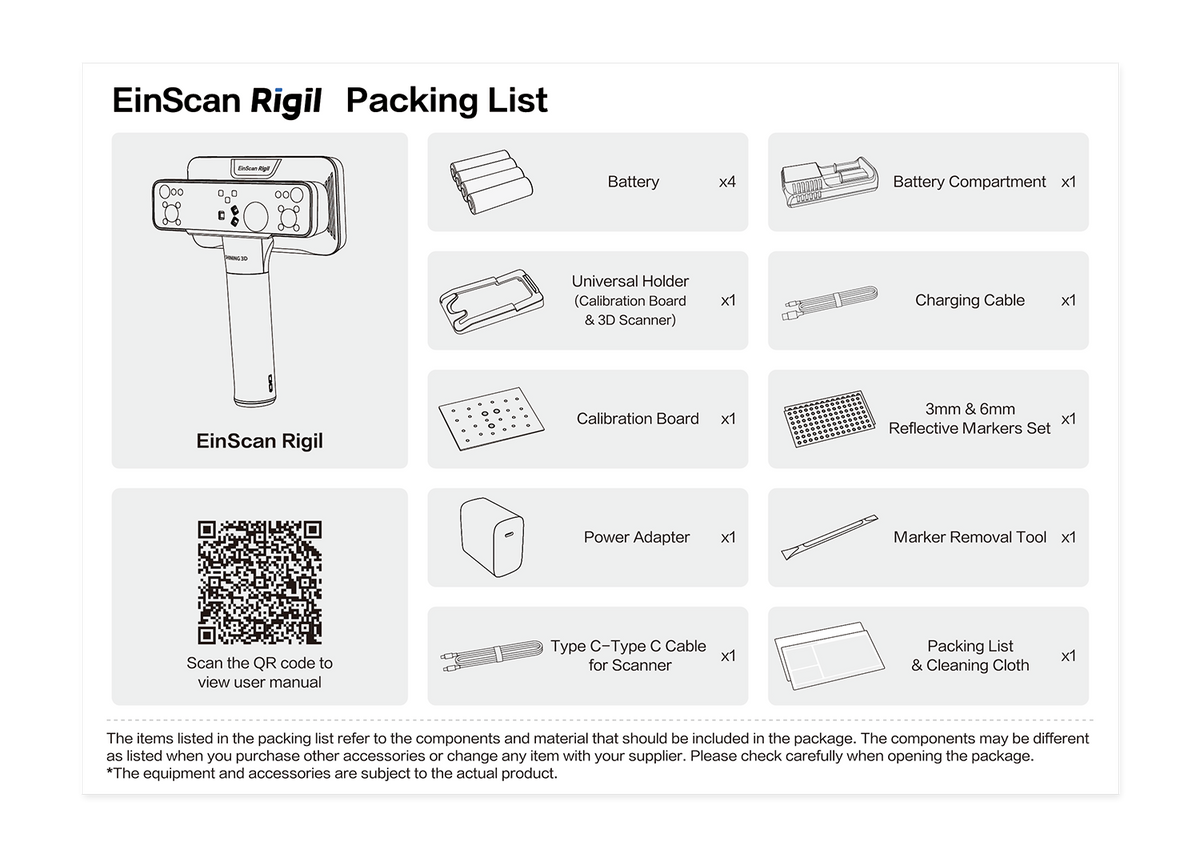

What's in the box
-

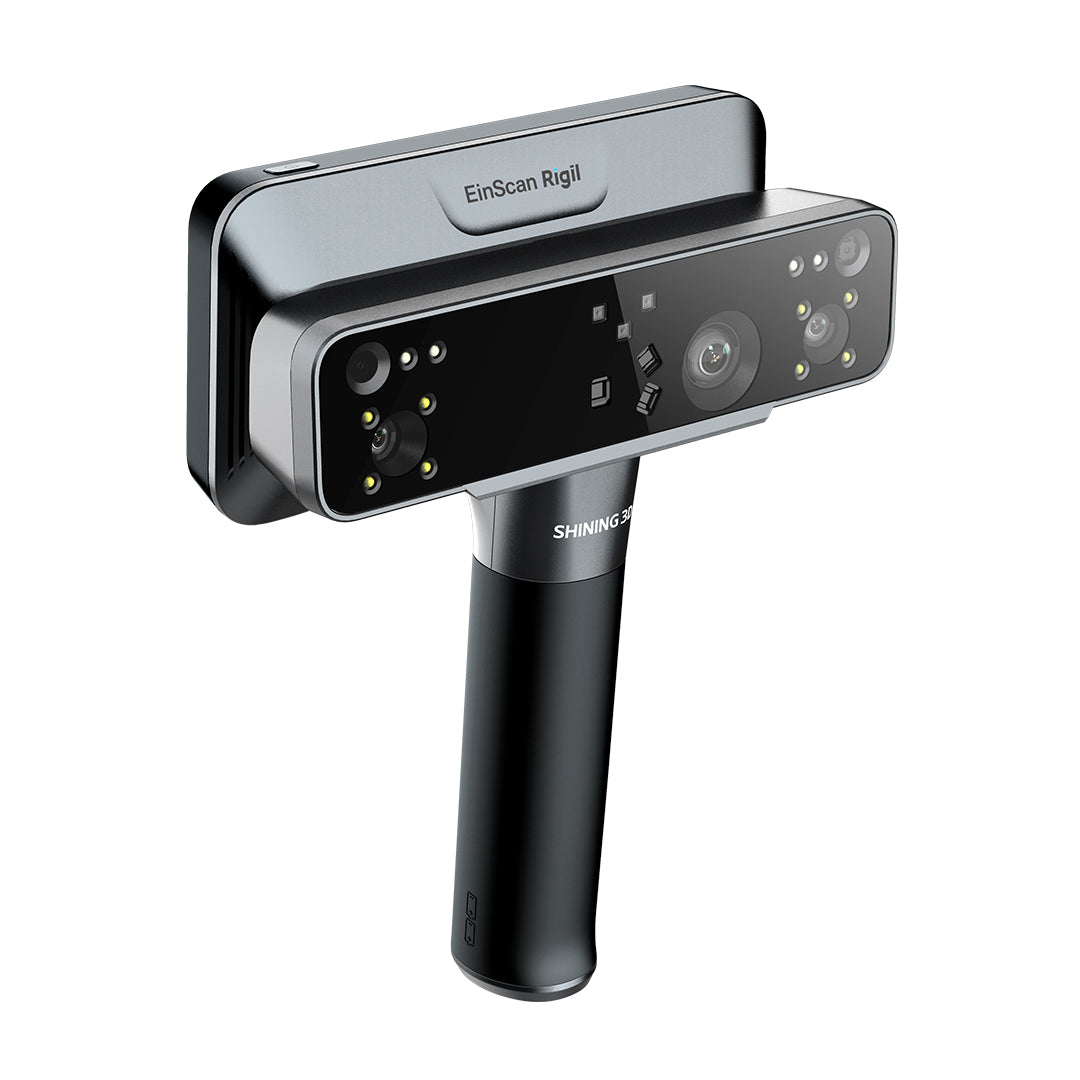

EinScan Rigil
-

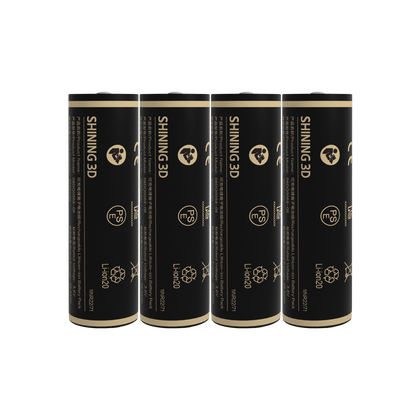

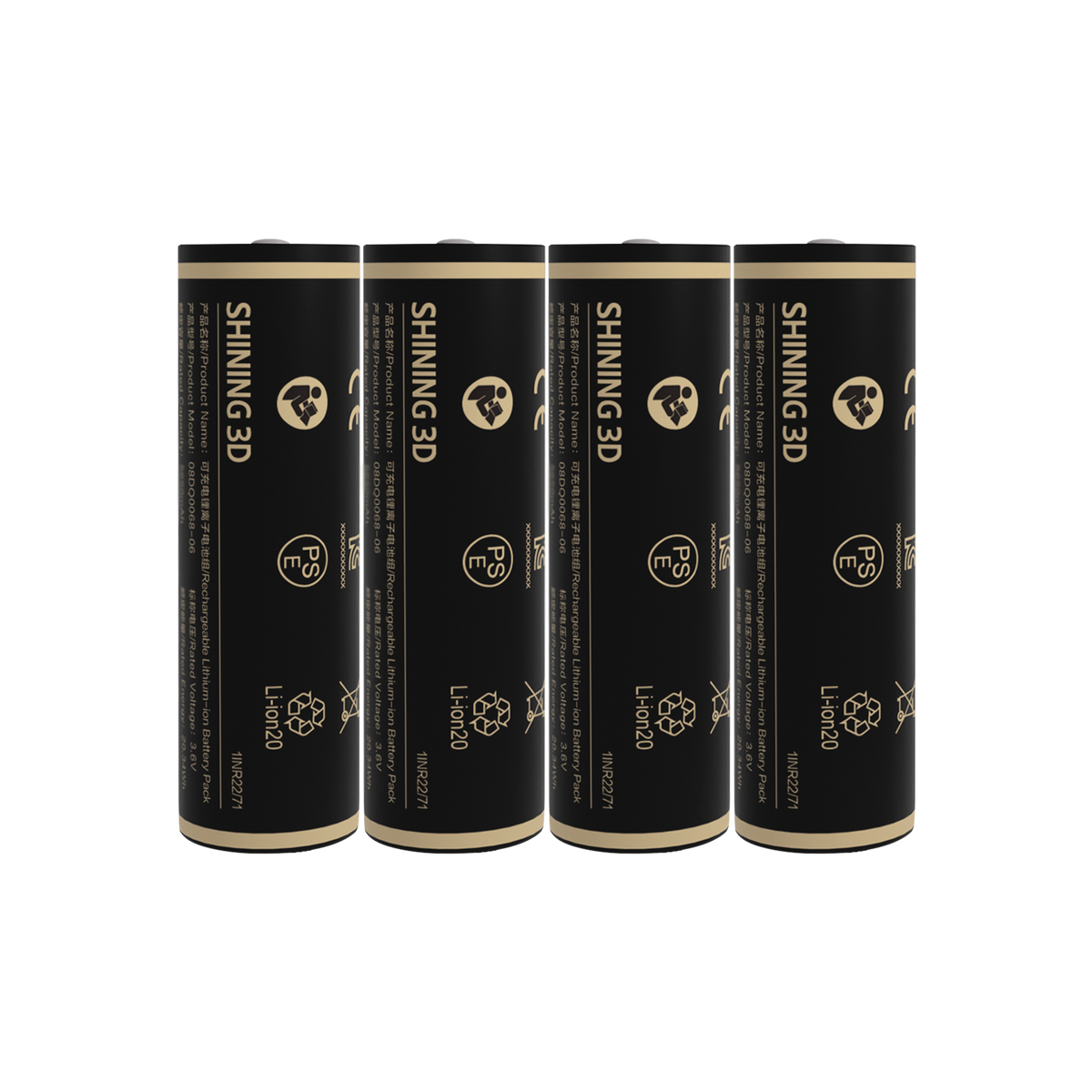

Battery
-

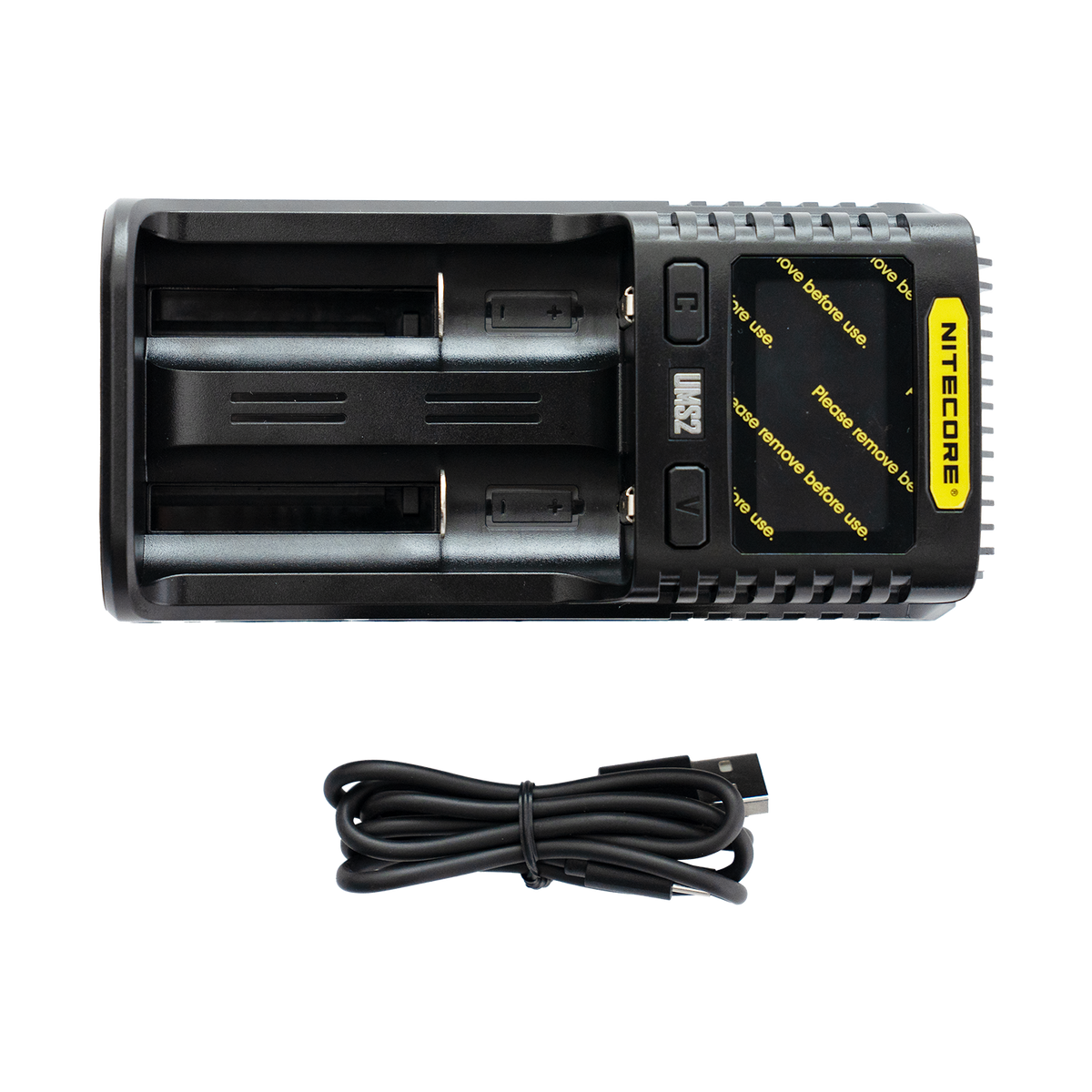

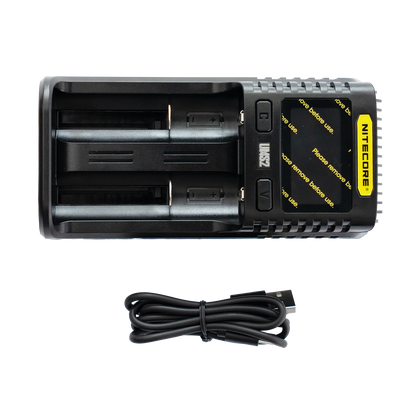

Battery Compartment & Charging Cable
-

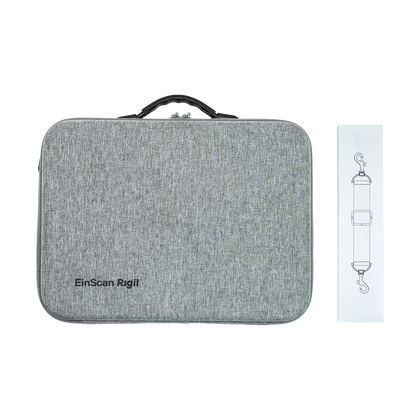

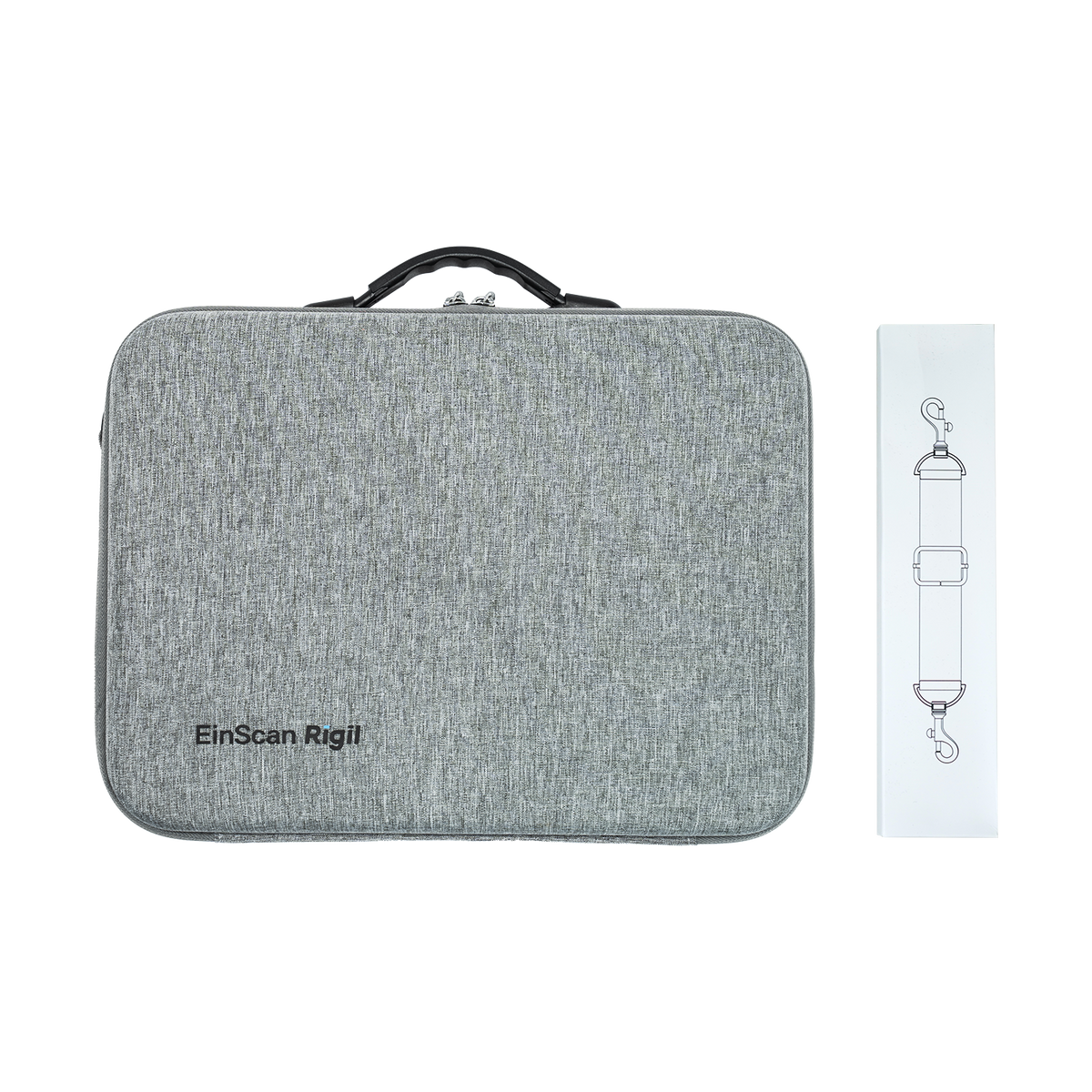

Carrying Case
- Calibration Board
-

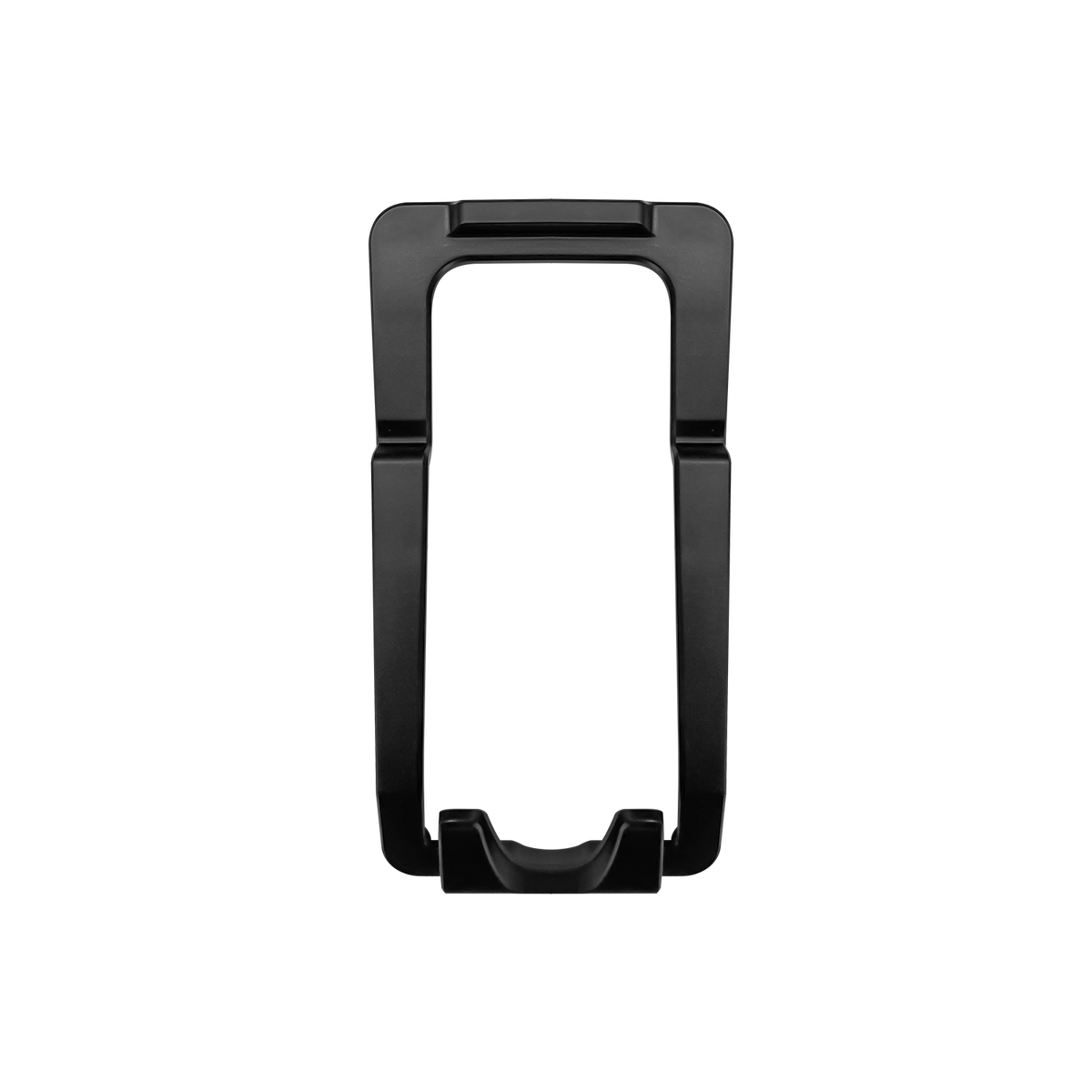

Universal Holder
-

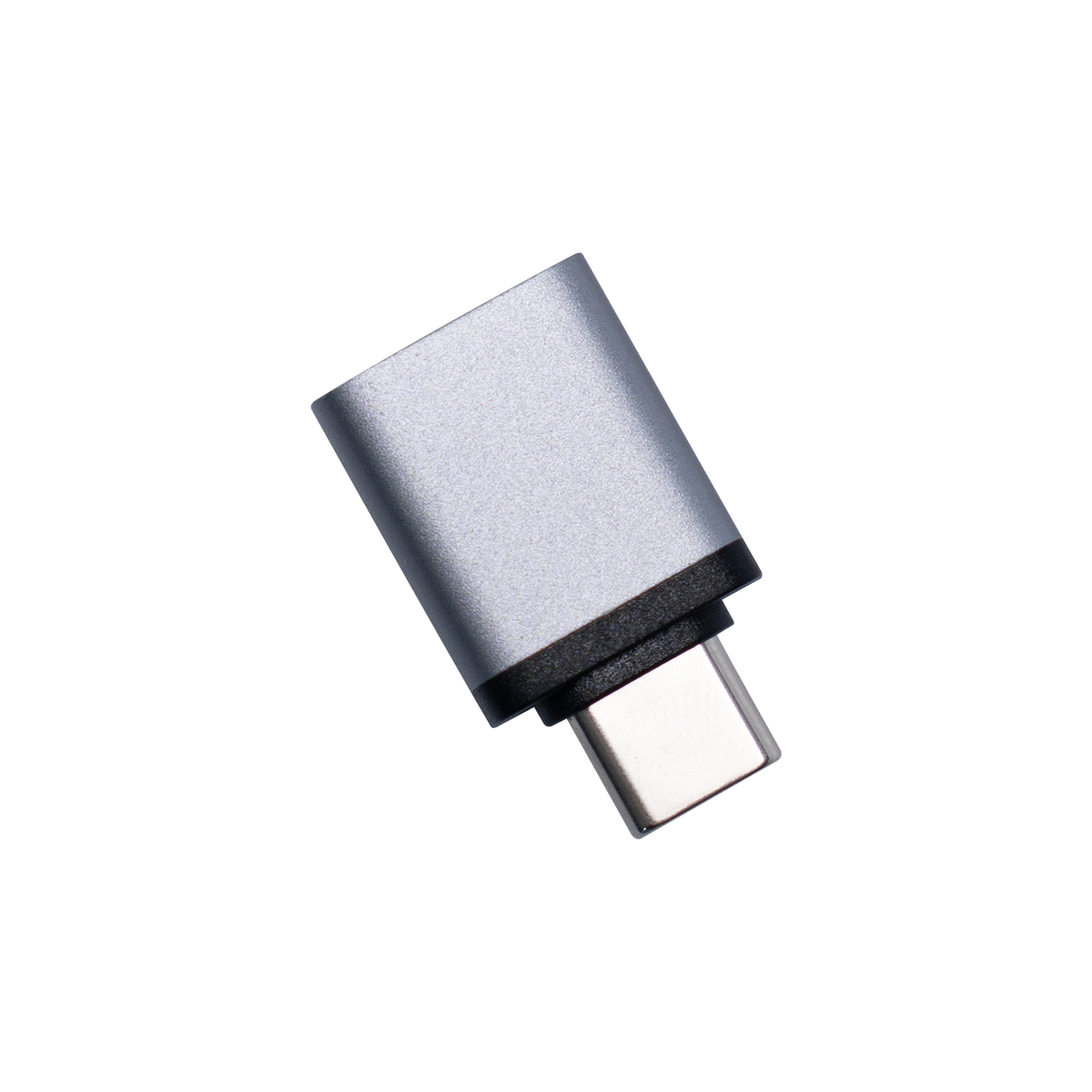

Power Adaptor
-

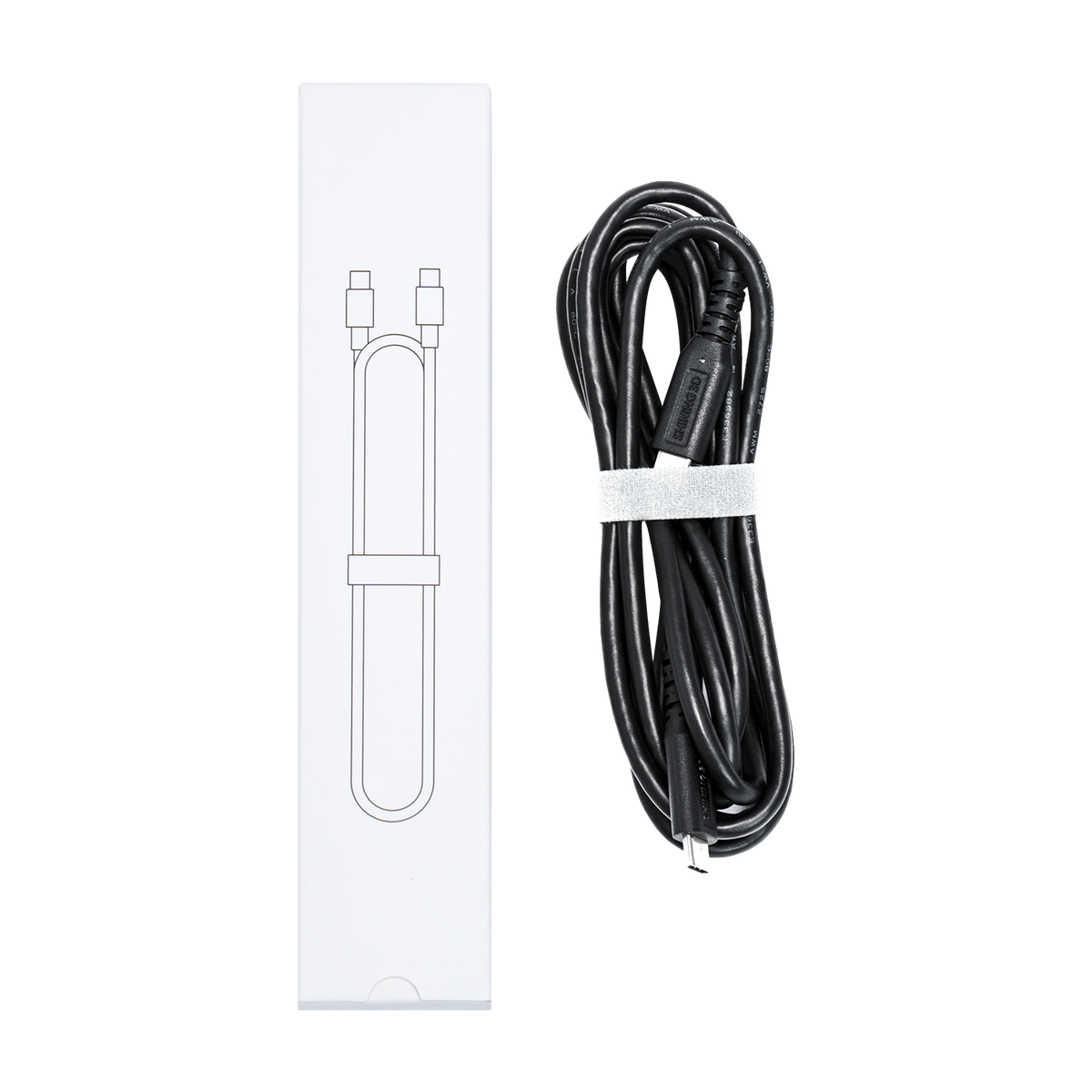

Type-C Cable for Scanner
-

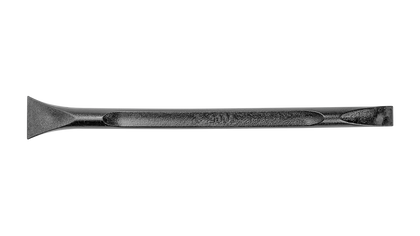

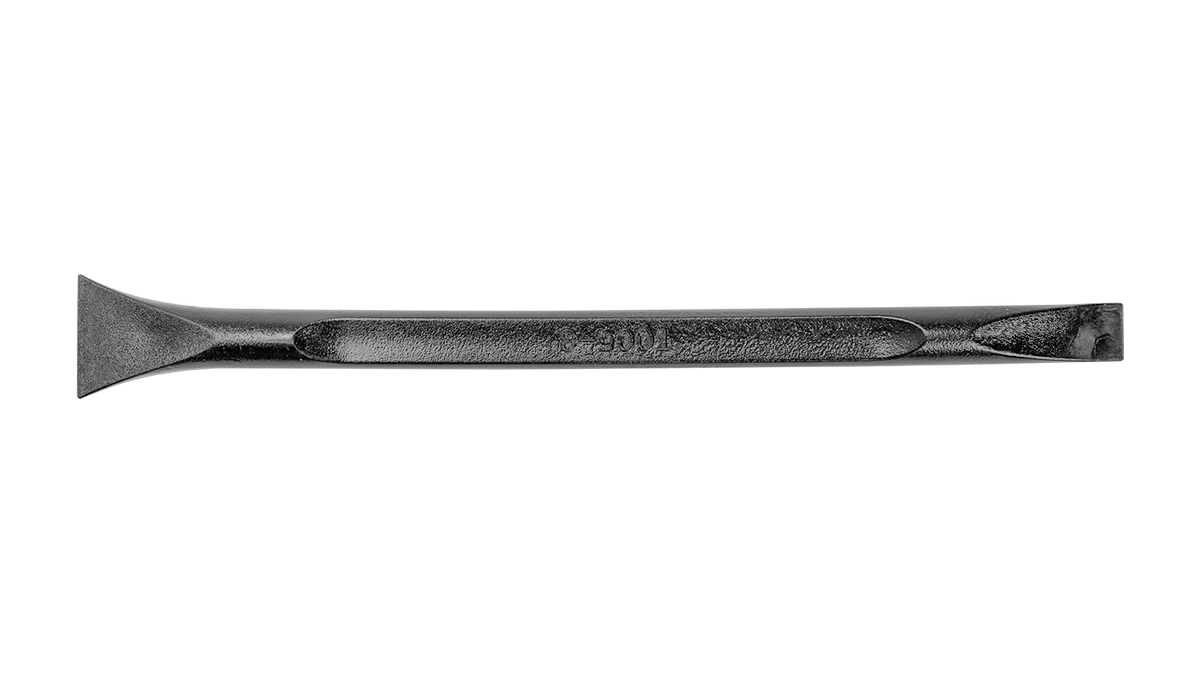

Marker Removal Tool
-

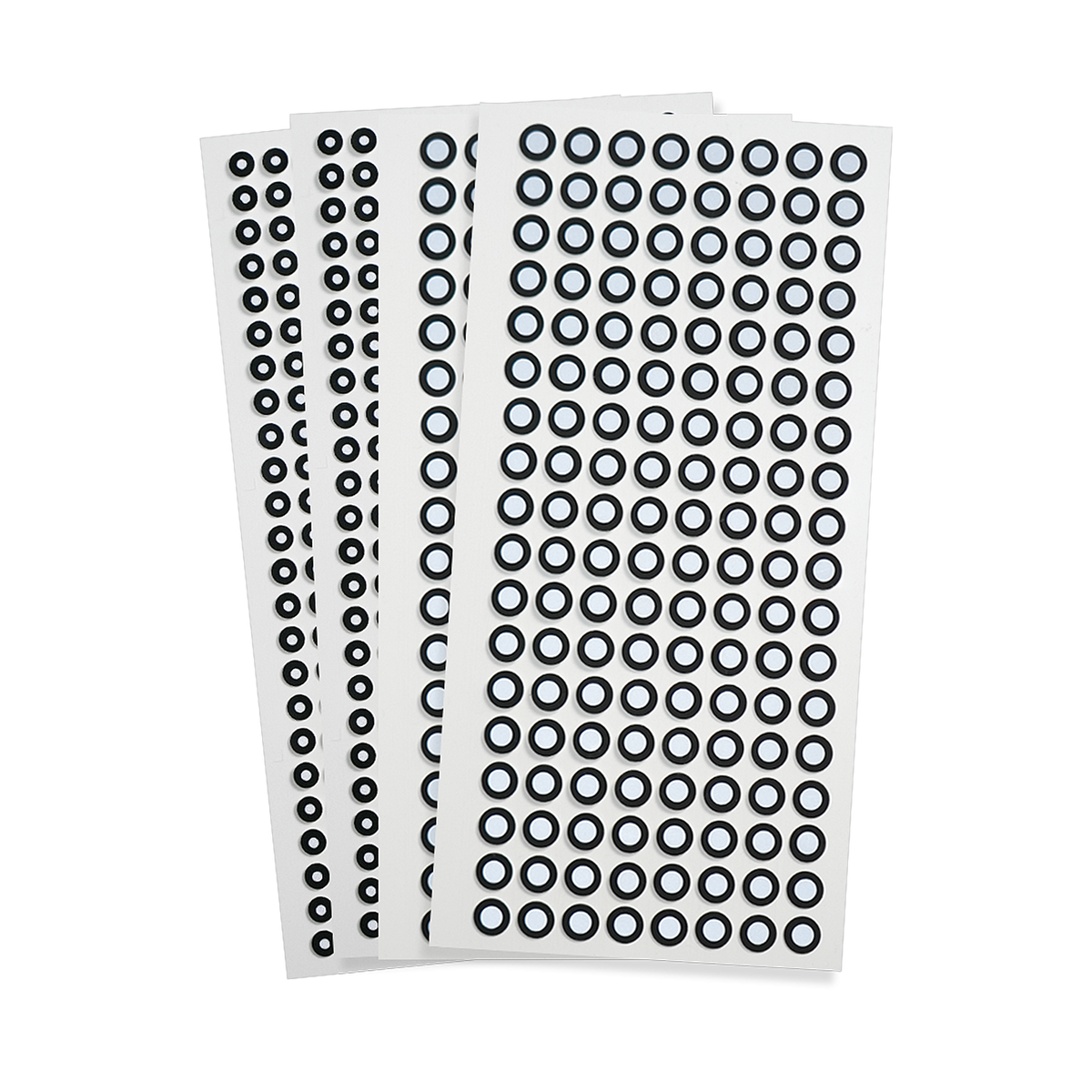

3mm and 6mm Reflective Markers
-

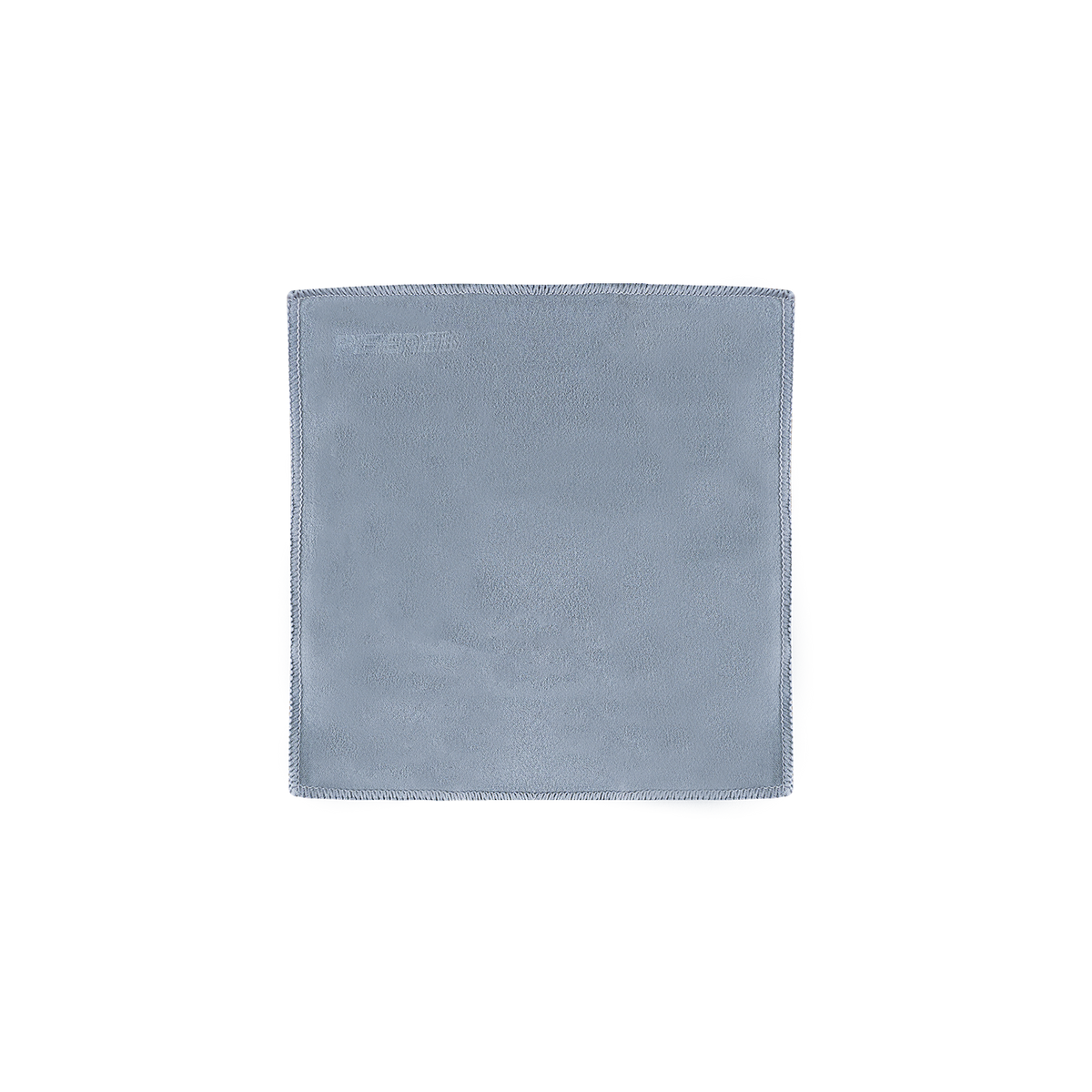

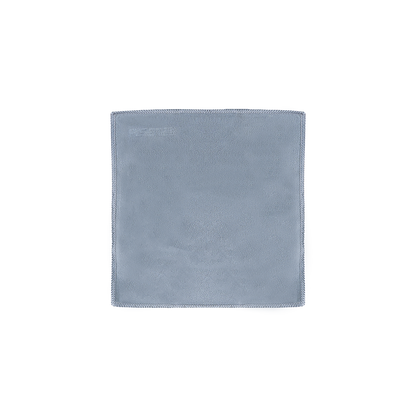

Cleaning Cloth
-
Packing List
Product essentials
EinScan Rigil specifications.
Work Mode
Wireless Standalone; PC Wireless; PC Wired
Scan Mode
Laser HD; IR Rapid
Light Source
25 + 25 crossed blue laser lines; 7 blue laser parallel lines; IR VCSEL
Resolution
Laser HD: 0.05 to 10 mm; IR Rapid: 0.2 to 10 mm
Scan Speed
25 + 25 crossed laser lines: 4,800,000 points/s; 7 blue laser parallel lines: 1,480,000 points/s; IR Rapid: 16,000,000 points/s
Working Distance
Laser HD: 170 to 550 mm; IR Rapid: 160 to 1500 mm
Alignment Mode
Laser HD: Global Markers, Markers, Features; IR Rapid: Global Markers, Markers, Features, Texture, Hybrid
Volumetric Accuracy
Laser HD: up to 0.04 + 0.06 mm/m; IR Rapid: up to 0.1 + 0.4 mm/m
Camera Resolution
3D: 2.3MP x2 + 1.3MP x2; Texture: 5MP
Output Formats
STL, OBJ, PLY, 3MF, ASC
Laser Class
Laser HD: Class II
Hardware
8-core 2.4GHz CPU; 64GB eMMC + 1TB SSD ROM; 32GB LPDDR5 RAM; 6.4-inch 2K AMOLED touchscreen
Battery
5500mAh x2; supports 60W PD 3.0 charger
Interface
USB Type-C
Dimensions
233 x 180 x 72.8 mm
Net Weight
870 g with batteries
Operation Conditions
Temperature: -10C to 40C
Certifications
CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Recommended PC
Windows 11 64-bit; 13th Gen Intel Core i7-13700H or above; NVIDIA GeForce RTX 3060 Laptop GPU or above; 8GB+ VRAM; 64GB+ RAM; USB 3.0
Resources
Downloads
Proof
Our Expertise, Your Advantage
20
years experience
400+
authorized patents
200K+
3D scanners sold worldwide
Support
Frequently asked questions
Why choose EinScan Rigil?
EinScan Rigil is designed for prosumer and automotive aftermarket 3D modeling needs. It combines fast scanning, professional workflows, lightweight computing, and rich editing functions.
What are the three working modes?
Standalone mode completes scanning and processing on the hardware. Wireless PC mode connects through Wi-Fi 6 for extra computing power. Wired PC mode connects by USB Type-C for maximum stability.
Can laser lines be switched during scanning?
Yes. The 25 + 25 crossed laser lines and 7 parallel laser lines can be switched during scanning, and the captured data can be merged in one project.
What is the power supply method?
The scanner uses 2 x 5500mAh replaceable batteries and supports USB Type-C power supply while charging and using at the same time.
Can it scan dark and reflective metal surfaces?
Yes. Rigil is built for challenging dark and reflective materials and can scan reflective metal surfaces without spray in suitable workflows.
